Internal hard drive2Internal hard drive fastener
screw
1
Step 4
Pull the hard drive out as shown in xref Figure 14-7.

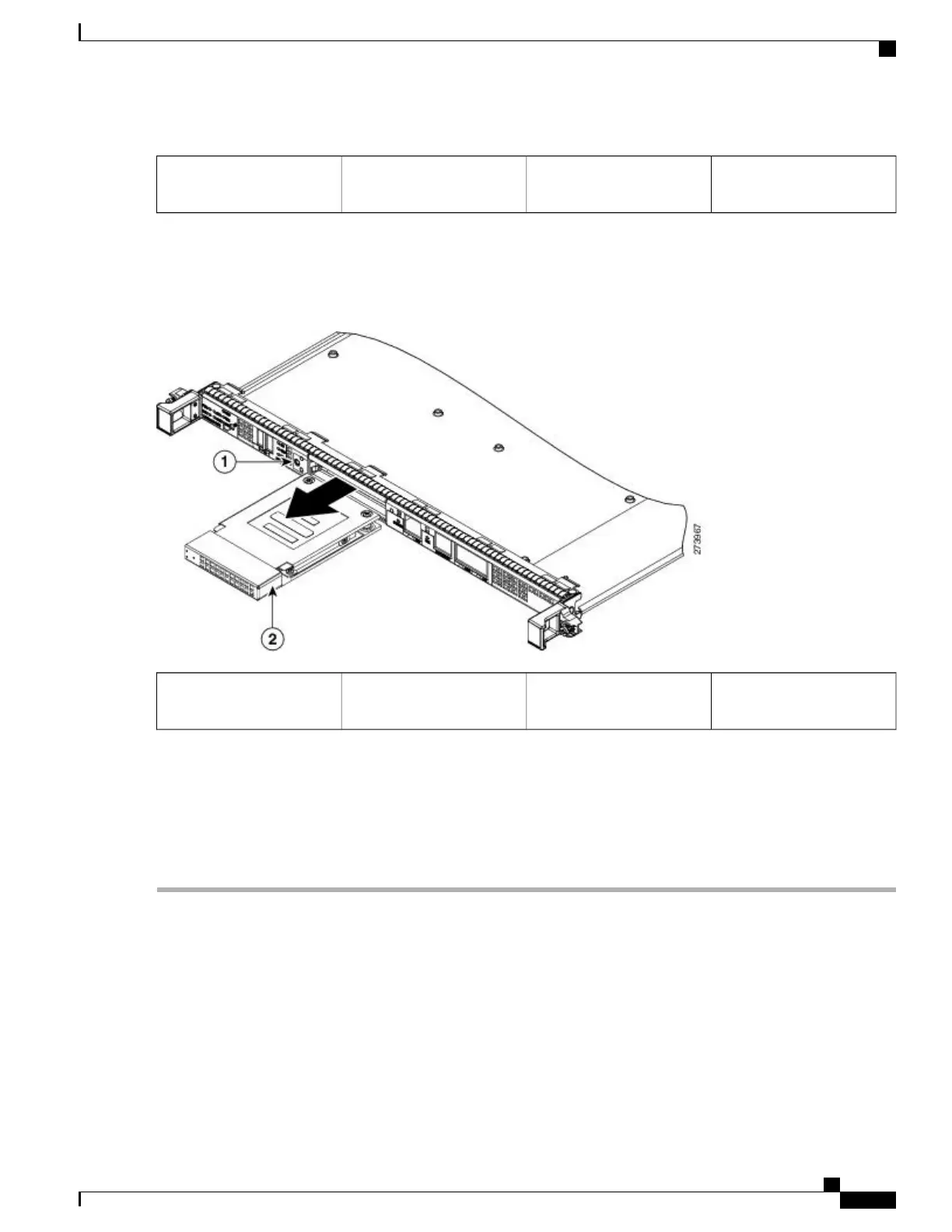

Figure 237: Cisco ASR1001 Router Hard Drive
Hard drive2Hard drive fastener screw
location
1
Step 5
Place the hard drive in an antistatic bag if you are returning it.
Step 6
Wait until the following console message is displayed:
Example:
%IOSXE-0-PLATFORM: R0/0: udev: harddisk: has been removed
What to Do Next
You have successfully removed the hard drive from the Cisco ASR 1001 Router.
Replacing the Hard Drive on the Cisco ASR 1001 Router
To insert or replace the hard drive on the Cisco ASR 1001 Router, follow this procedure:
Cisco ASR 1000 Series Router Hardware Installation Guide
493
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Replacing the Hard Drive on the Cisco ASR 1001 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
