Removing and Replacing an AC Power Supply in Cisco ASR 1002 Router
This section provides information about removing and replacing an AC power supply in the Cisco ASR 1002
Router.
You must have both power supplies installed in the Cisco router.Note
The Cisco ASR 1002 Router has two of the same type power supplies in power supply slot 0 and power supply
slot 1. The following figure shows the Cisco ASR 1002 Router AC power supply.

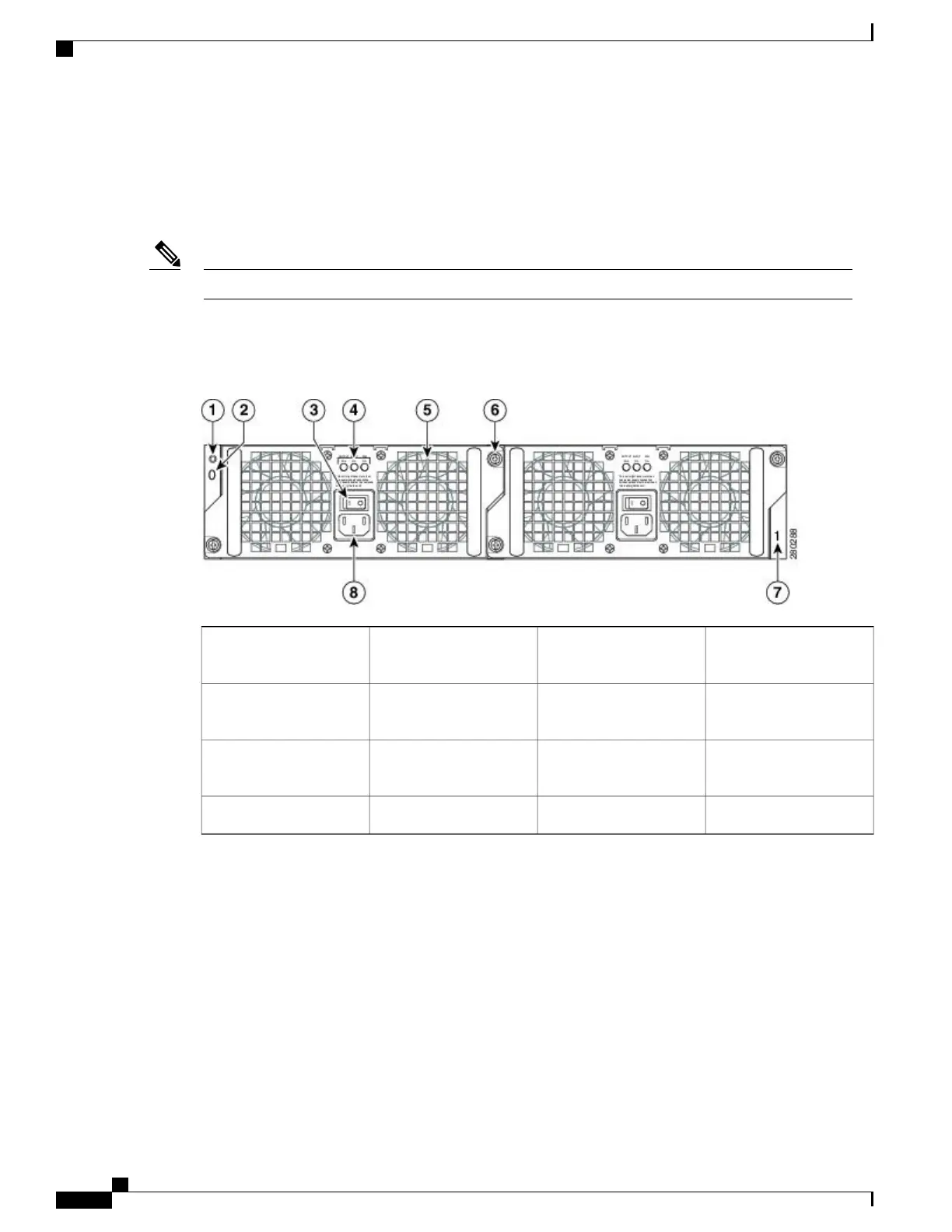

Figure 277: Cisco ASR 1002 Router AC Power Supply
Fan5AC power supply ESD
socket
1
Captive installation screw6AC power supply slot 0
label
2
AC power supply slot 1
label
7AC power supply On (|)
/Off (O) switch
3
AC power inlet8AC power supply LEDs4
Removing the AC Power Supply from Cisco ASR 1002 Router
To remove the AC power supply from the Cisco ASR 1002 Router, follow these steps:
