Cisco ASR 1002-X Hardware Installation Guide

Figure 31: Cisco ASR 1013 Router Slot Numbering , on page 108 shows the slot numbering for the shared
port adapters on the Cisco ASR 1013 Router.

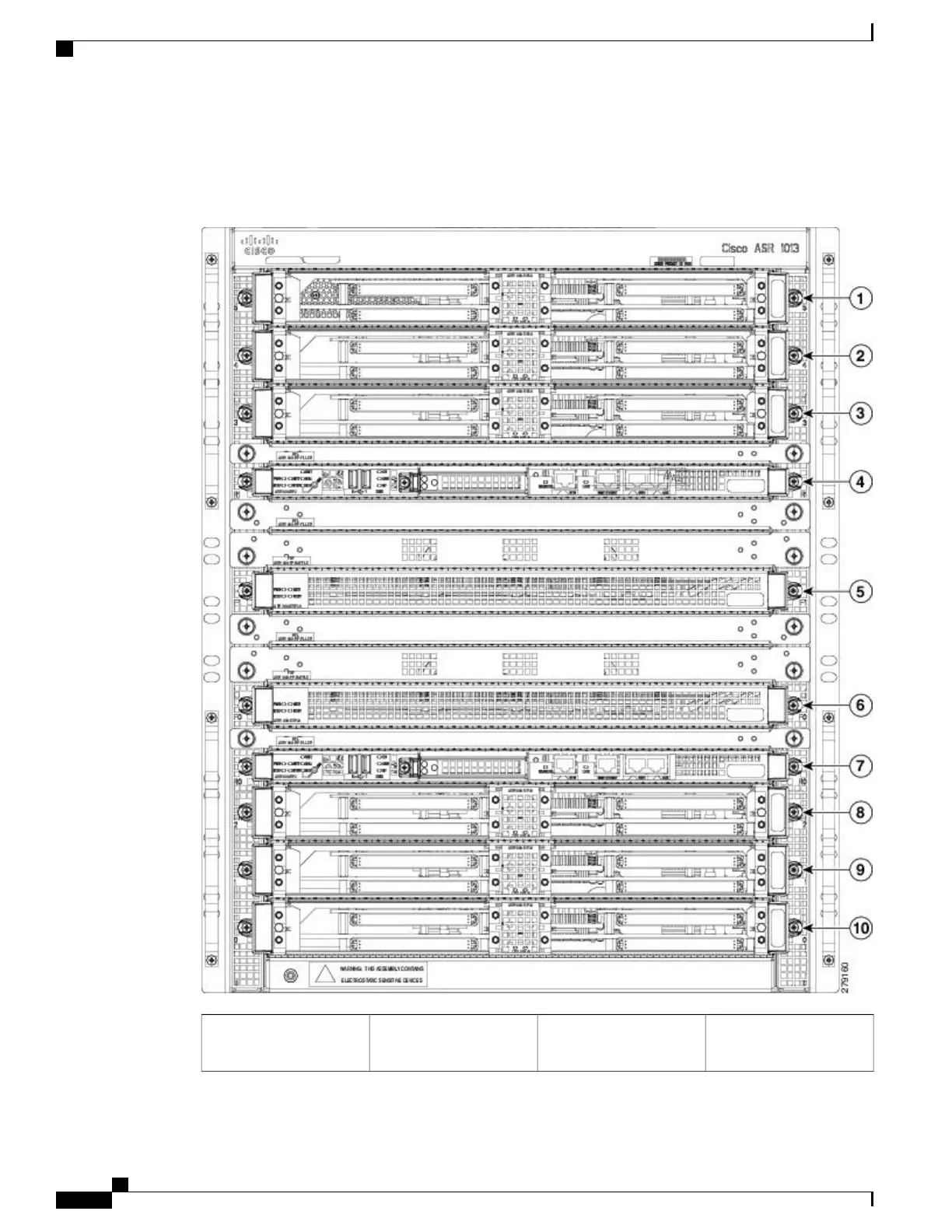

Figure 31: Cisco ASR 1013 Router Slot Numbering
Slot F0 with ASR 1000
Series ESP-40
6ASR 1000 Series SIP slot
5
1
Cisco ASR 1000 Series Router Hardware Installation Guide
108
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1013 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
