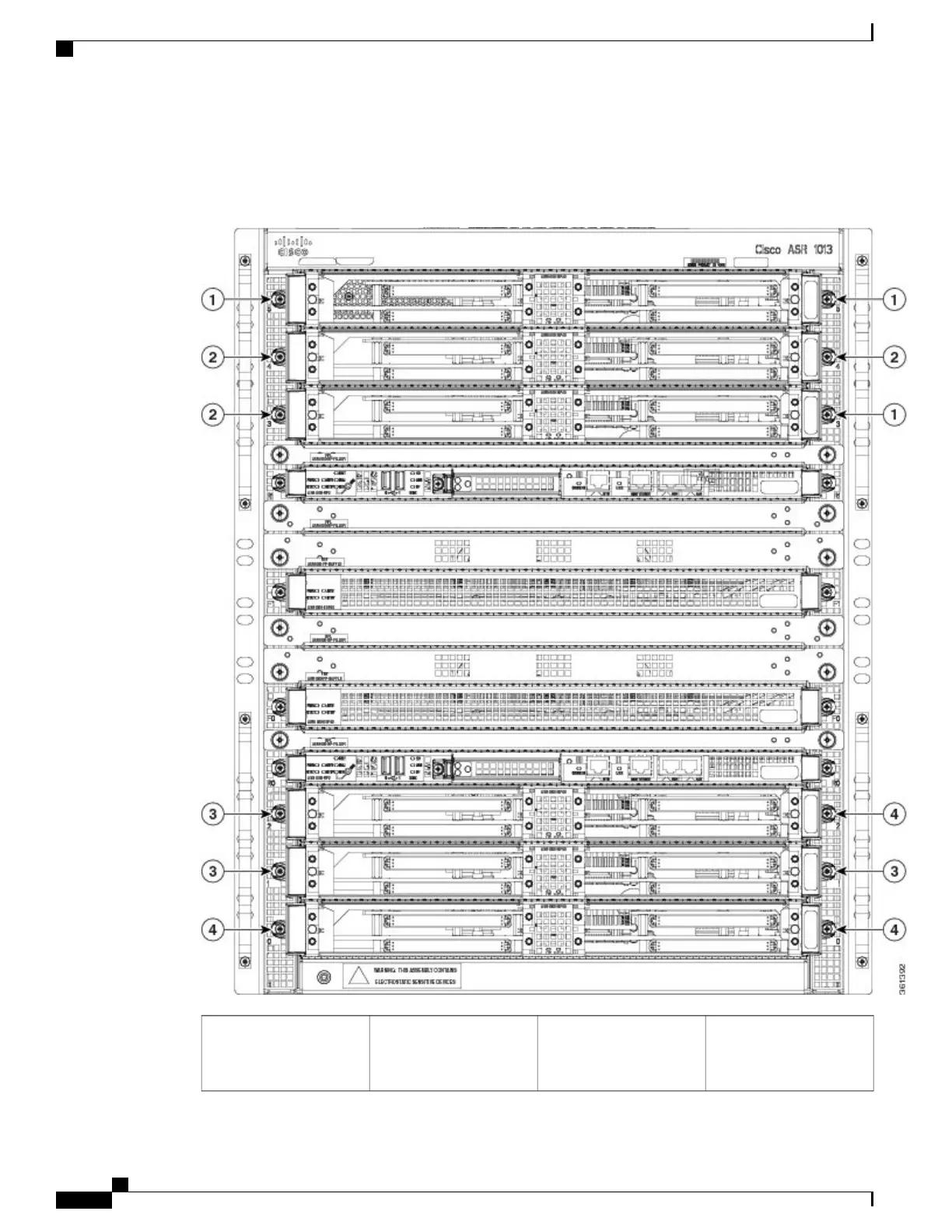

The following figure displays the SIP and SPA bays of the Cisco ASR 1013 Router and their mappings to the

QFP-3rd-Gen ASICs.

Figure 25: Cisco ASR 1000-ESP200 and their QFP-3rd-Gen ASIC Mappings

Egress queueing for

interfaces handled by

QFP-3rd-Gen 1

3Egress queueing for

interfaces handled by

QFP-3rd-Gen 3

Cisco ASR 1000 Series Router Hardware Installation Guide

Cisco ASR 1000 Series Routers Embedded Services Processors

Cisco ASR 1000-ESP200 and Third Generation Cisco QFP
