Cisco ASR 1002-X Hardware Installation Guide

The followng image shows the ASR1006-PWR-DC power supply for the Cisco ASR 1006 Router.

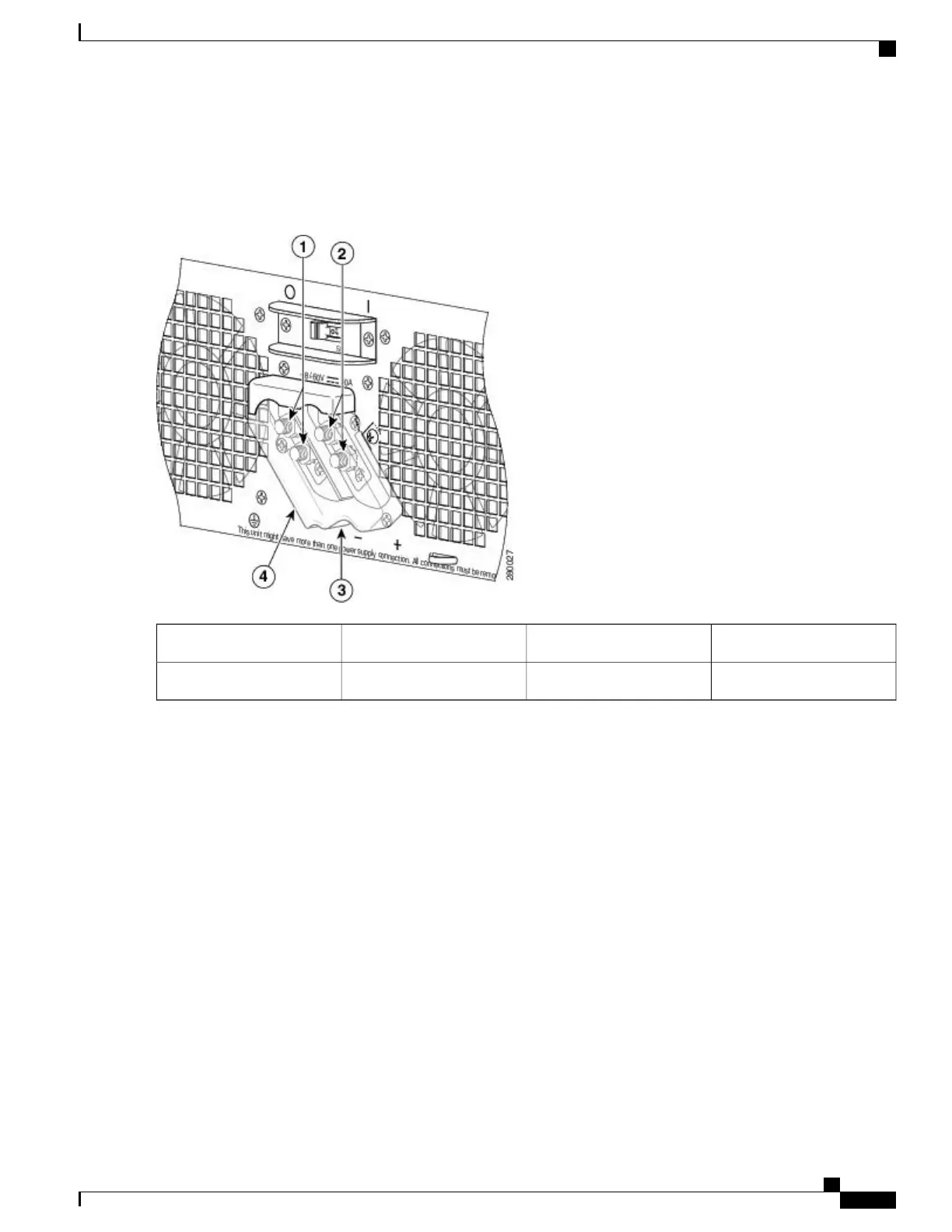

Figure 53: Cisco ASR 1006 Router DC Power Supply (ASR1006-PWR-DC) Terminal Block Plastic Cover
Plastic cover slotted area3Negative lead1
Terminal block plastic cover4Positive lead2
Cisco ASR 1000 Series Router Hardware Installation Guide
175
Cisco ASR 1006 Router Overview and Installation
Connecting DC Input Power to Cisco ASR 1006 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
