DETAILED STEPS
Step 1
Connect one end of the RJ-45 cables to the serial RJ-45 port (CON) on the Cisco ASR 1000 Series Route Processor 1
(see Figure 77: Cisco ASR 1004 Router ASR 1000 Series Route Processor Console Port, on page 216).
Step 2
Run the cable up and through the cable-management bracket and connect the other end of the RJ-45 cable to the RJ-45
adapter (see the following image).

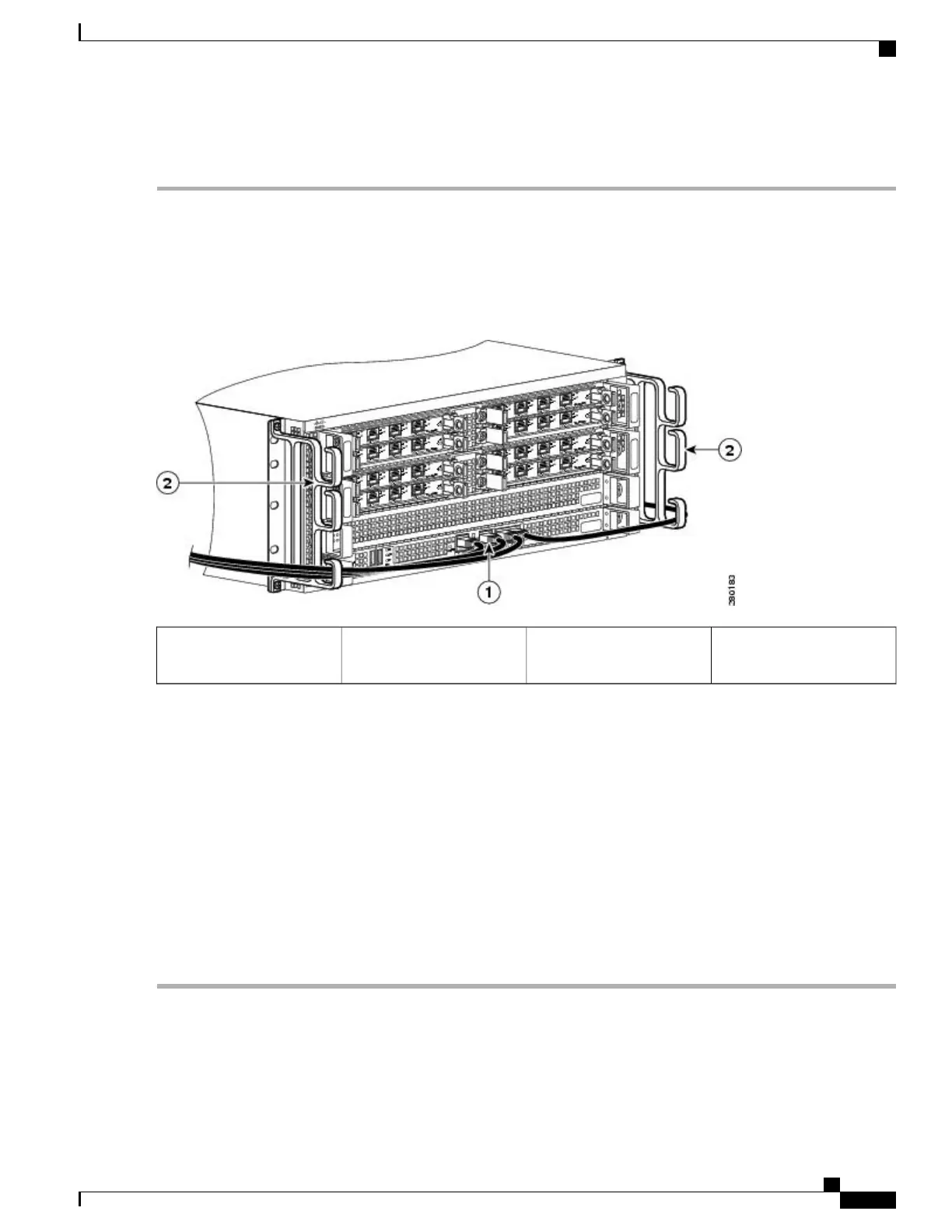

Figure 78: Cisco ASR 1004 Router Cable-Management Bracket
Cable-management bracket
U feature device
2BITS port connection1
Step 3
Connect the adapter to your video terminal to complete the cable connection.
Step 4
Power on your video terminal.
Step 5
Configure your video terminal to match the following default console port settings:
•
9600 baud
•
8 data bits
•
No parity generation or checking
•
1 stop bit
•
No flow control
Step 6
Go to the Connecting the Network Management and Signal System Cables, on page 218 to continue the installation.
Cisco ASR 1000 Series Router Hardware Installation Guide
217
Cisco ASR 1004 Router Overview and Installation
Connecting a Terminal to the Cisco ASR Series 1000 Route Processor Console Port

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
