Cisco ASR 1002-X Hardware Installation Guide

The following image shows the –48 VDC power supply for the Cisco ASR 1002 Router.

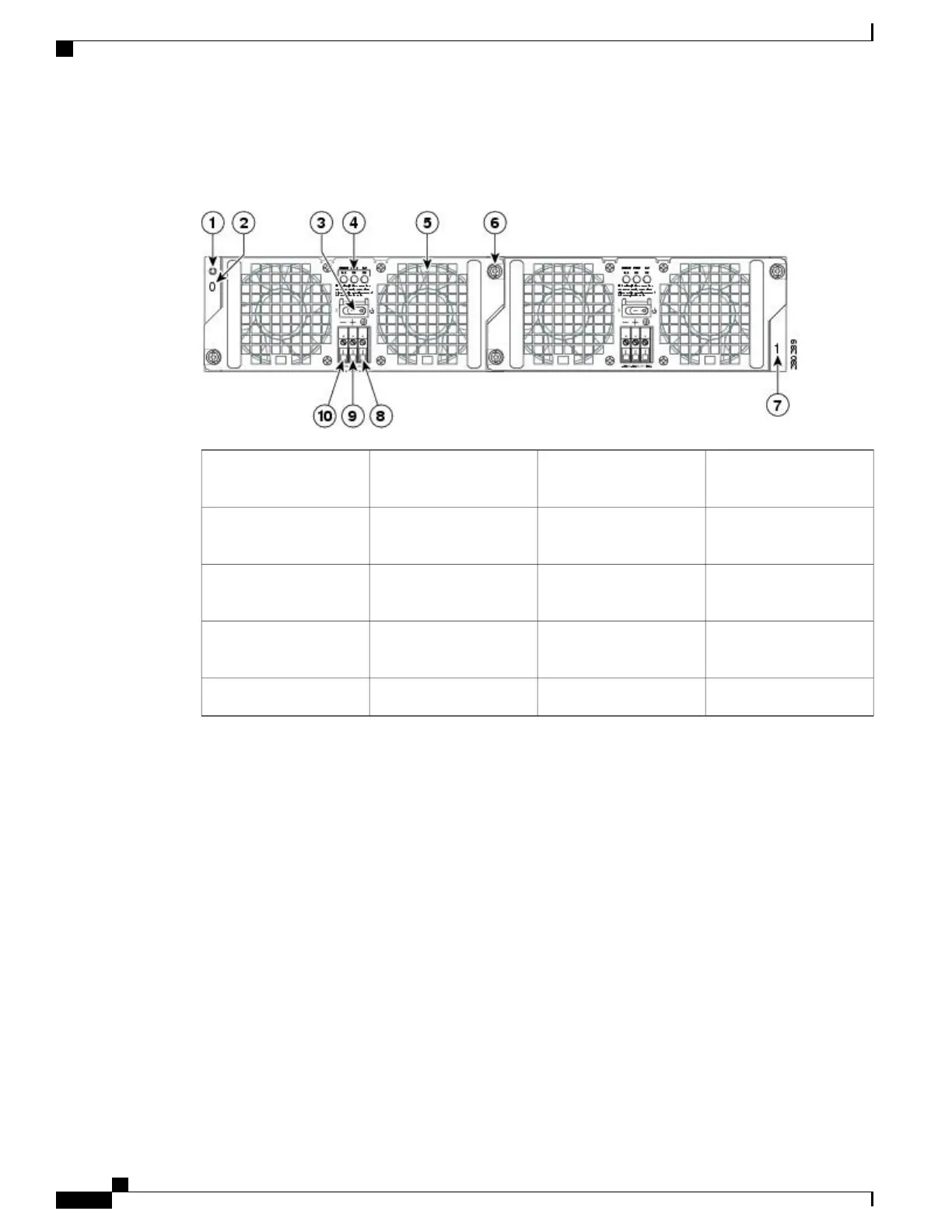

Figure 104: – 48 VDC Power Supply for the Cisco ASR 1002 Router
–48 VDC power supply
captive installation screw
6Chassis ESD socket1
–48 VDC power supply
slot 1 label
7
–48 VDC power supply
slot 0 label
2
Ground lead8
–48 VDC power supply
switch Standby/On
3
Positive lead9
–48 VDC power supply
LEDs
4
Negative lead10Fan5
Table 61: Cisco ASR 1002 Router –48 VDC Power Supply LEDs , on page 261 describes the LEDs on the
Cisco ASR 1002 Router –48 VDC power supply.
Cisco ASR 1000 Series Router Hardware Installation Guide
260
Cisco ASR 1002 Router Overview and Installation
Connecting 48 VDC Input Power to Cisco ASR 1002 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
