Cisco ASR 1002-X Hardware Installation Guide

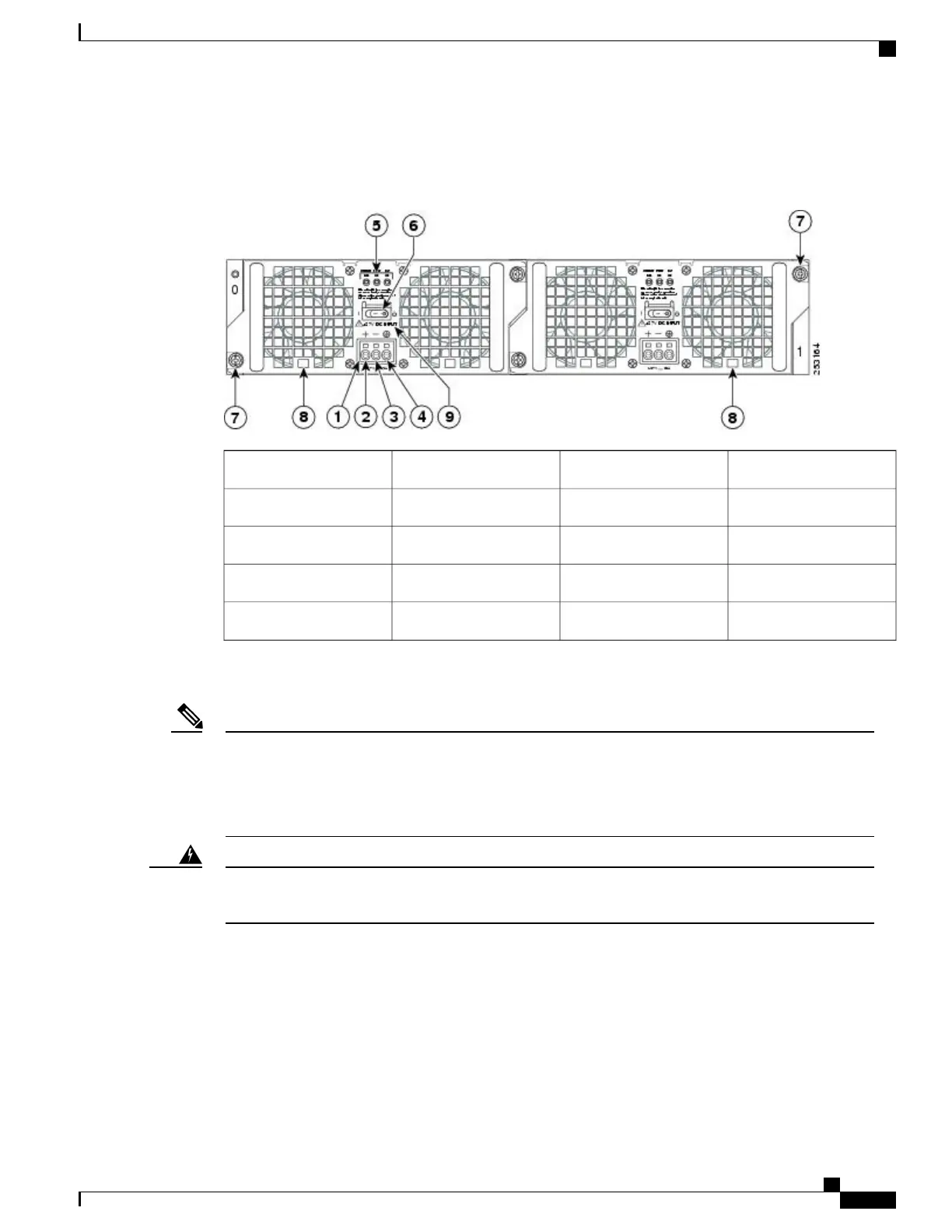

The following image shows the +24 VDC power supply for the Cisco ASR 1002 Router.
Figure 106: +24 VDC Power Supply for the Cisco ASR 1002 Router Components
Standby/On switch6+24 VDC terminal block1
Captive fastener7Positive (+) lead2
Power supply tabs8Negative (-) lead3
+27 VDC INPUT label9Ground (GND) lead4
——
Power supply LEDs5
This section describes how to connect the +24 VDC power supply in the Cisco ASR 1002 Router.
The color coding of the +24 VDC input power supply leads depends on the color coding of the +24 VDC
power source at your site. Typically, green or green/yellow is used for ground. Make certain the lead color
coding you choose for the +24 VDC input power supply matches lead color coding used at the +24 VDC
power source. Most commonly used wire color-coding is red for positive (+) lead and black for negative
(–) lead.
Note
When you install the unit, the ground connection must always be made first and disconnected last. Statement
1046
Warning
To connect +24 VDC power supply in the Cisco ASR 1002 Router, follow these steps:
Cisco ASR 1000 Series Router Hardware Installation Guide
265
Cisco ASR 1002 Router Overview and Installation
Connecting Cisco 24 VDC Power Supply

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
