Cisco ASR 1002-X Hardware Installation Guide

Step 9
After inserting the ground wire, leave an extra service loop in the ground lead to ensure that the ground lead is the last
lead to disconnect from the power supply if a great deal of strain is placed on all three leads as shown in the following
image.

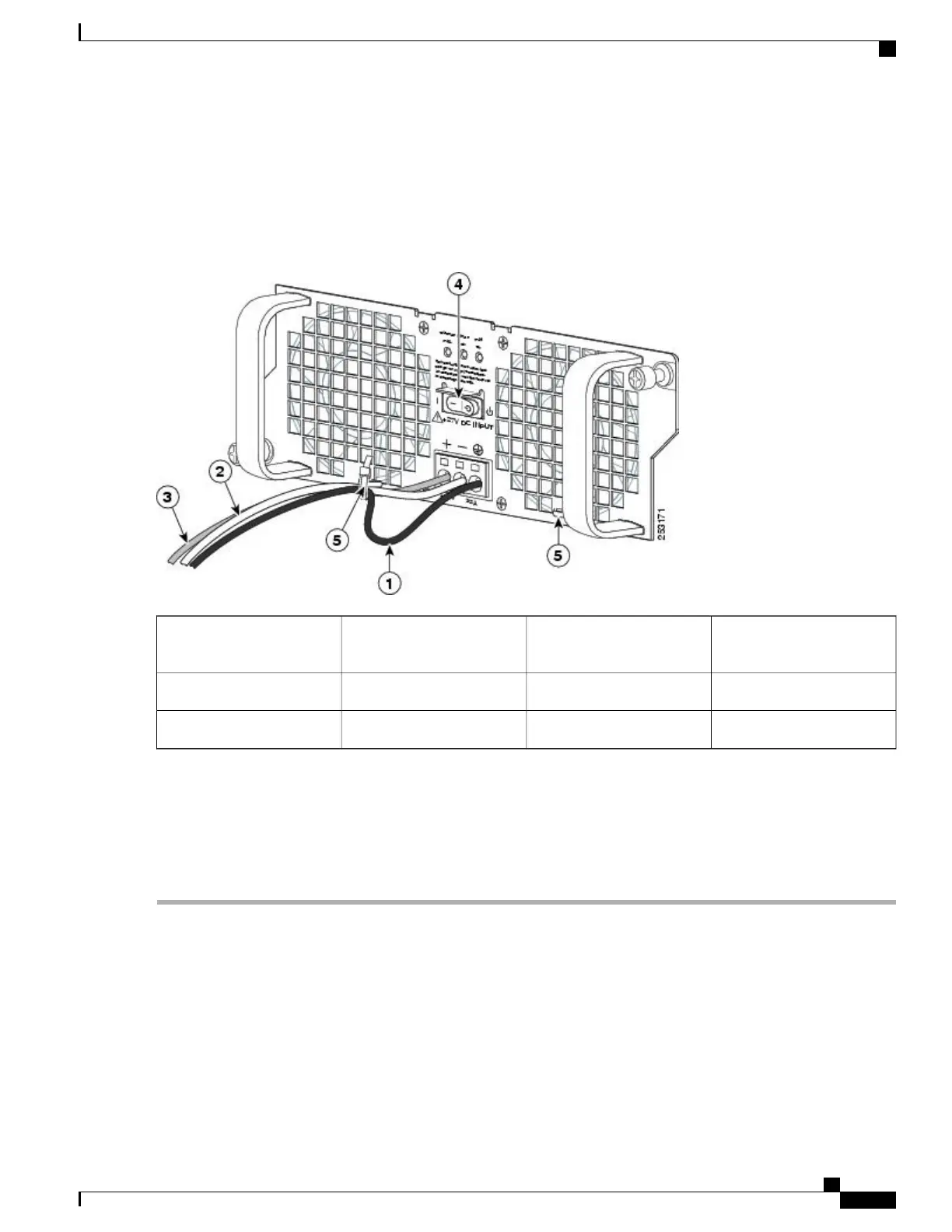

Figure 113: Cisco +24 VDC Power Supply Terminal Block Ground Lead Service Loop
+24 VDC power supply
Standby switch
4Ground lead wire with
service loop
1
Power supply tabs5Negative lead wire2
——
Positive lead wire3
Step 10
After tightening the receptacle screw for the ground, and leaving the extra service loop in the ground lead, use a cable
tie to secure the three leads to the power supply faceplate tie-wrap tab as shown in the above imave, item 5.
Step 11
Turn on the branch source breaker.
Step 12
Place the power supply standby switch to the On (|) position. The power supply LEDs light when power is supplied to
the router.
What to Do Next
This completes the steps for installing the +24 VDC power supply in the Cisco ASR 1002 Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
271
Cisco ASR 1002 Router Overview and Installation
Connecting Cisco 24 VDC Power Supply

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
