Cisco ASR 1002-X Hardware Installation Guide

DETAILED STEPS
Step 1
At the rear of the chassis, check that the power switch on the power supply is in the Standby position.
Step 2
Plug the power cable into the inlet.
For additional AC power cable strain relief, secure the cable to the power supply handle by inserting a nylon
cable tie through the hole in the handle and around the cable.
Note
The following image shows the Cisco ASR 1013 Router AC power supply.

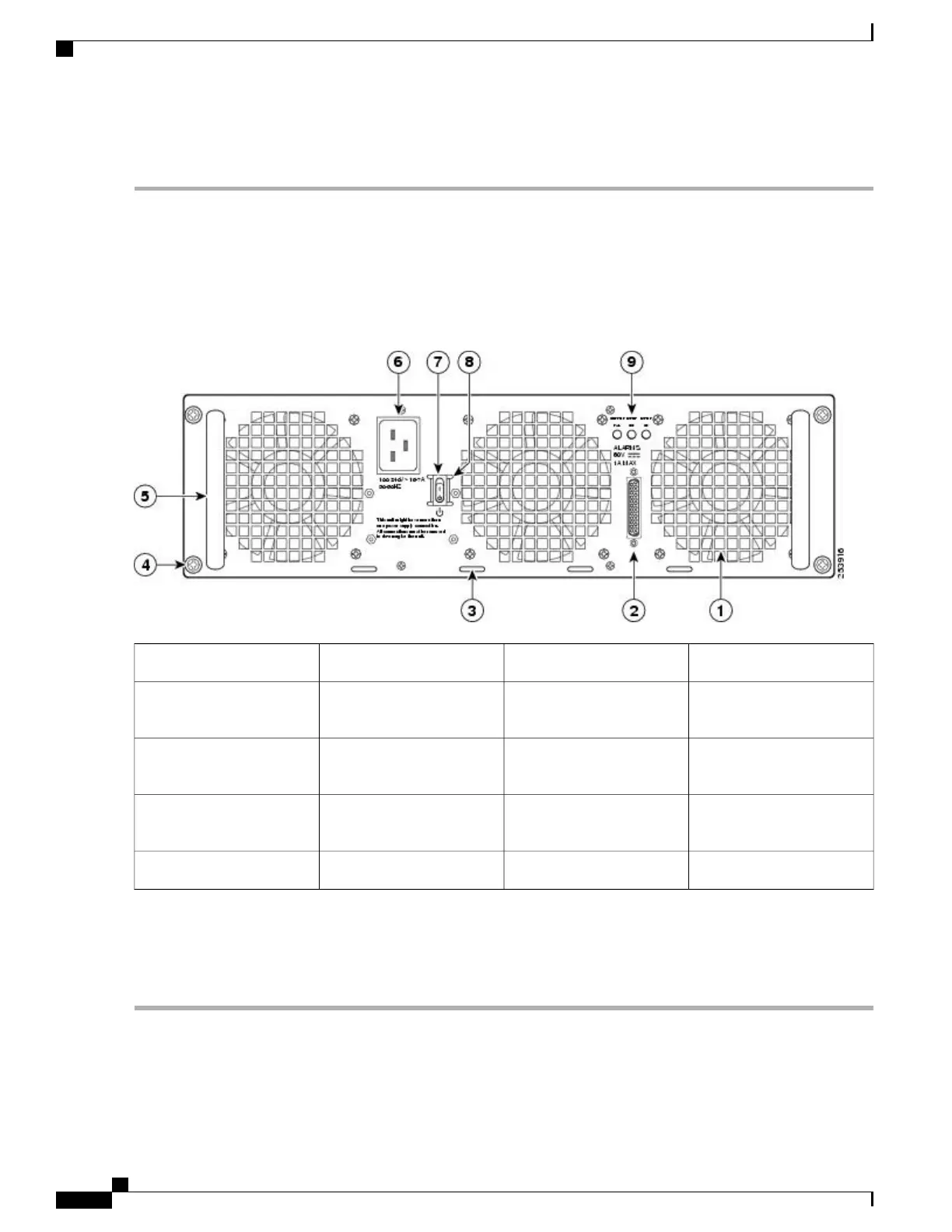

Figure 189: Cisco ASR 1013 Router AC Power Supply
AC power inlet6AC power supply fan1
AC power supply Standby
switch
7DB-25 alarm connector2
Protective shielding on both
sides of the Standby switch
8Tie-wrap tab3
AC power supply LEDs9AC power supply captive
screw
4
——
AC power supply handle5
Shielded cables must be used to connect to the DB-25 alarm connector on both the AC and DC power supplies
in order to comply with FCC/EN55022/CISPR22 Class A emissions requirements. See the “How Cisco
ASR1000-RP Alarm Monitoring Works” section on page 2-22 .
Note
Step 3
Plug the AC power supply cable into the AC power source.
What to Do Next
This completes the procedure for connecting AC-input power.
Cisco ASR 1000 Series Router Hardware Installation Guide
396
Cisco ASR 1013 Router Overview and Installation
Connecting AC Input Power to Cisco ASR 1013 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
