Cisco ASR 1002-X Hardware Installation Guide

The following image shows the Cisco ASR 1001 Router AC power supplies.

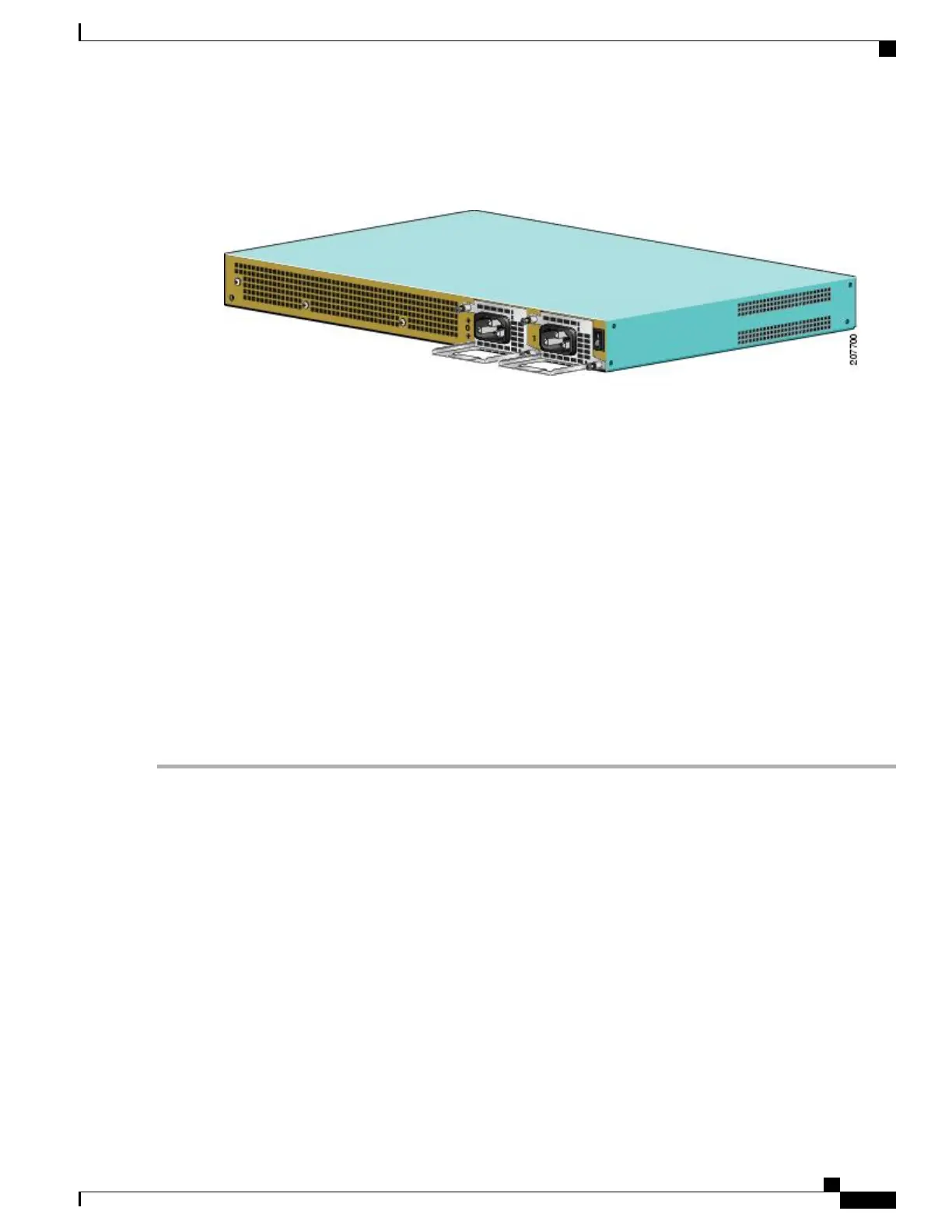

Figure 215: Cisco ASR 1001 Router AC Power Supplies
Follow these steps to connect an AC input power supply to the Cisco ASR 1001 Router.
SUMMARY STEPS
1.
There are two power supplies installed. At the rear of the chassis, check that the power switch on the
chassis is in the standby position.
2.
Turn off the circuit breaker to the power supply.
3.
For easier installation, plug the power cable into the inlet on power supply slot 1 first.
4.
Then insert the power supply cable into the power supply in slot 0 on the right.
5.
Make certain that the AC power cords are positioned as shown in the following image.
6.
Plug the AC power supply cables into the AC power source.
7.
Turn on the AC breaker.
8.
Turn the Standby switch to On (|) on the chassis.
9.
The power supply LED illuminates green.
DETAILED STEPS
Step 1
There are two power supplies installed. At the rear of the chassis, check that the power switch on the chassis is in the
standby position.
Cisco ASR 1000 Series Router Hardware Installation Guide
447
Cisco ASR 1001 Router Overview and Installation
Installing AC Input Power to Cisco ASR 1001 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
