The following figure shows the cables still connected because they do not have to be replaced.

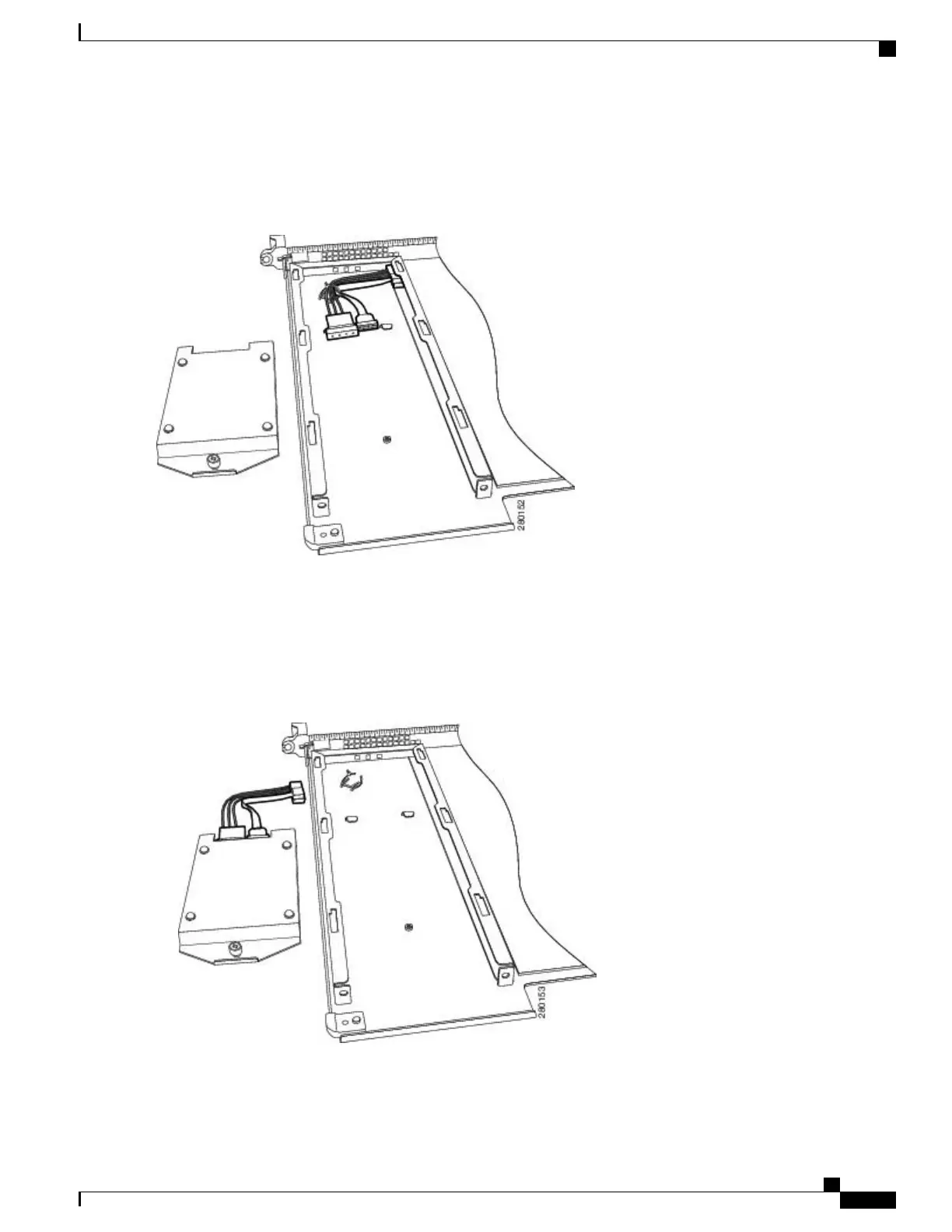

Figure 229: Cisco ASR1000-RP1 Module With Internal Hard Drive Removed
Step 8
If the cables are damaged:
a) Remove the tie wrap around the cables.
b) Disconnect the cables from both the Cisco ASR 1000 Series Route Processor 1 connector and the internal hard drive
connector as shown in the following figure.
Figure 230: Cisco ASR1000-RP1 Module Internal Hard Drive and Module Base
This completes the procedure for disconnecting the Cisco ASR 1000 Series RP internal hard drive.
Cisco ASR 1000 Series Router Hardware Installation Guide
481
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR1000-RP1 Module Internal Hard Drive

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
