Cisco ASR 1002-X Hardware Installation Guide

DETAILED STEPS
Step 1
Make certain that the chassis ground is connected before you begin removing the DC power supply.
Step 2
Switch the power supply circuit breaker switch to Off (O).
Step 3

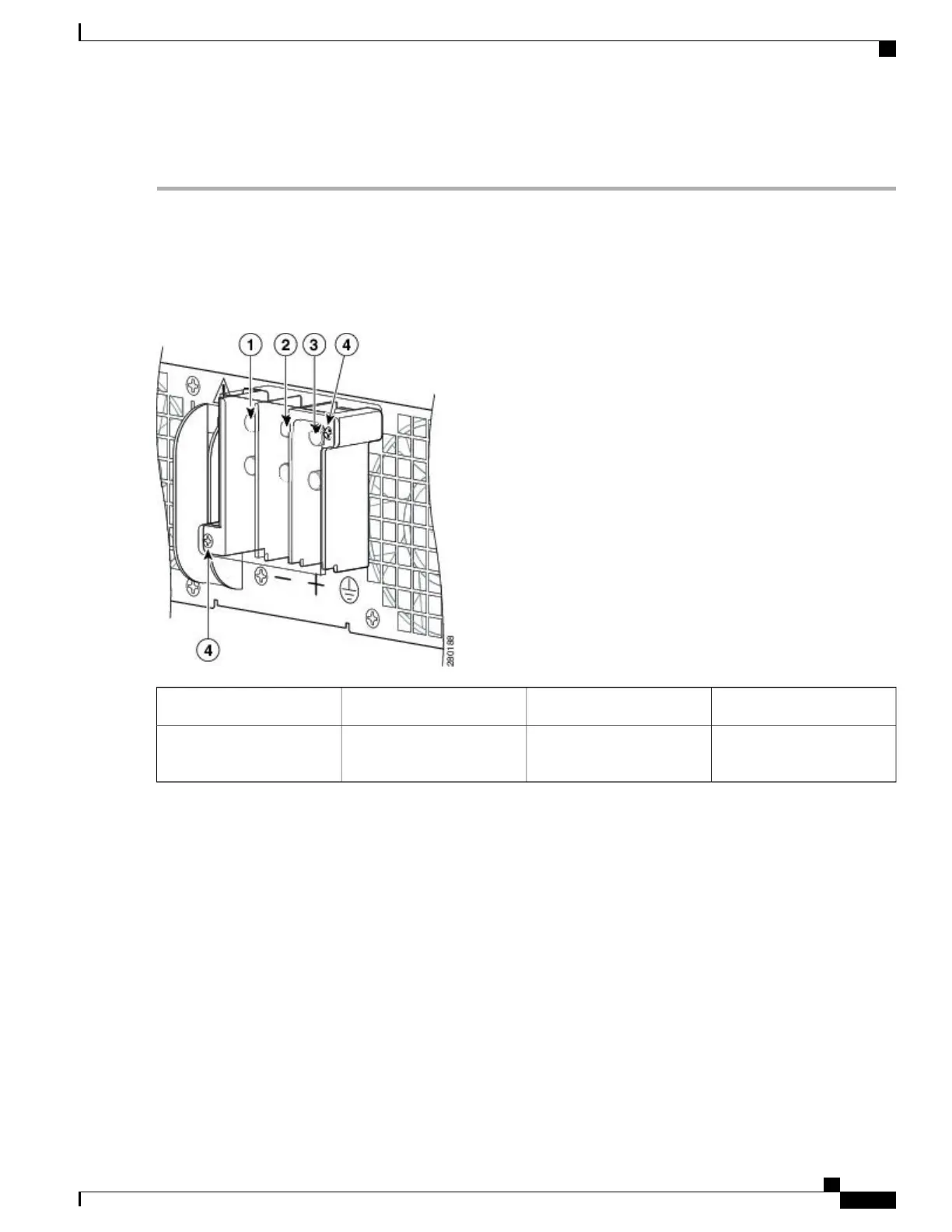

Locate the terminal block on the rear of the chassis on the power supply. The following figure shows the DC power
supply terminal block.
Step 4
Remove the slotted plastic cover from the terminal block.
Ground stud3Negative terminal1
Terminal block plastic cover
screws
4Positive terminal2
a) Loosen and remove the two #10 screws from the plastic cover. The plastic cover has slots that help to slide it out
towards the right.
b) Using a nut driver (7/16 size), unscrew the positive kepnut, positive cable, and the flat washer, in that order. The
terminal block houses two double-hole barrel lugs.
c) Follow Step 4b and remove the negative cable.
Cisco ASR 1000 Series Router Hardware Installation Guide
561
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing a DC Power Supply in Cisco ASR 1004 Router

Cisco ASR 1002-X Specifications

General

Form Factor	Rack-mountable
Rack Units	2RU
Integrated Services	Yes
Maximum Memory	16 GB
Built-in Gigabit Ethernet Ports	6
Input Voltage	100-240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Redundancy	Power supply redundancy
Network Interface Modules	Up to 4 SPA/SIP slots
Embedded Services Processor (ESP)	ESP-20
Maximum Packet per Second (PPS)	15 Mpps
Height	3.5 inches
Fixed Ports	6 GE ports
Memory	4 GB (default), 16 GB (maximum)
Power Supply	Dual power supplies (AC or DC)
Dimensions (H x W x D)	3.5 x 17.5 x 19.0 in (8.9 x 44.5 x 48.3 cm)
