Troubleshooting Using MCS 7890-C1 LEDs
The LEDs on the front of the MCS 7890-C1, as shown in the following illustration, are color coded to indicate
the status of the MCS 7890-C1.

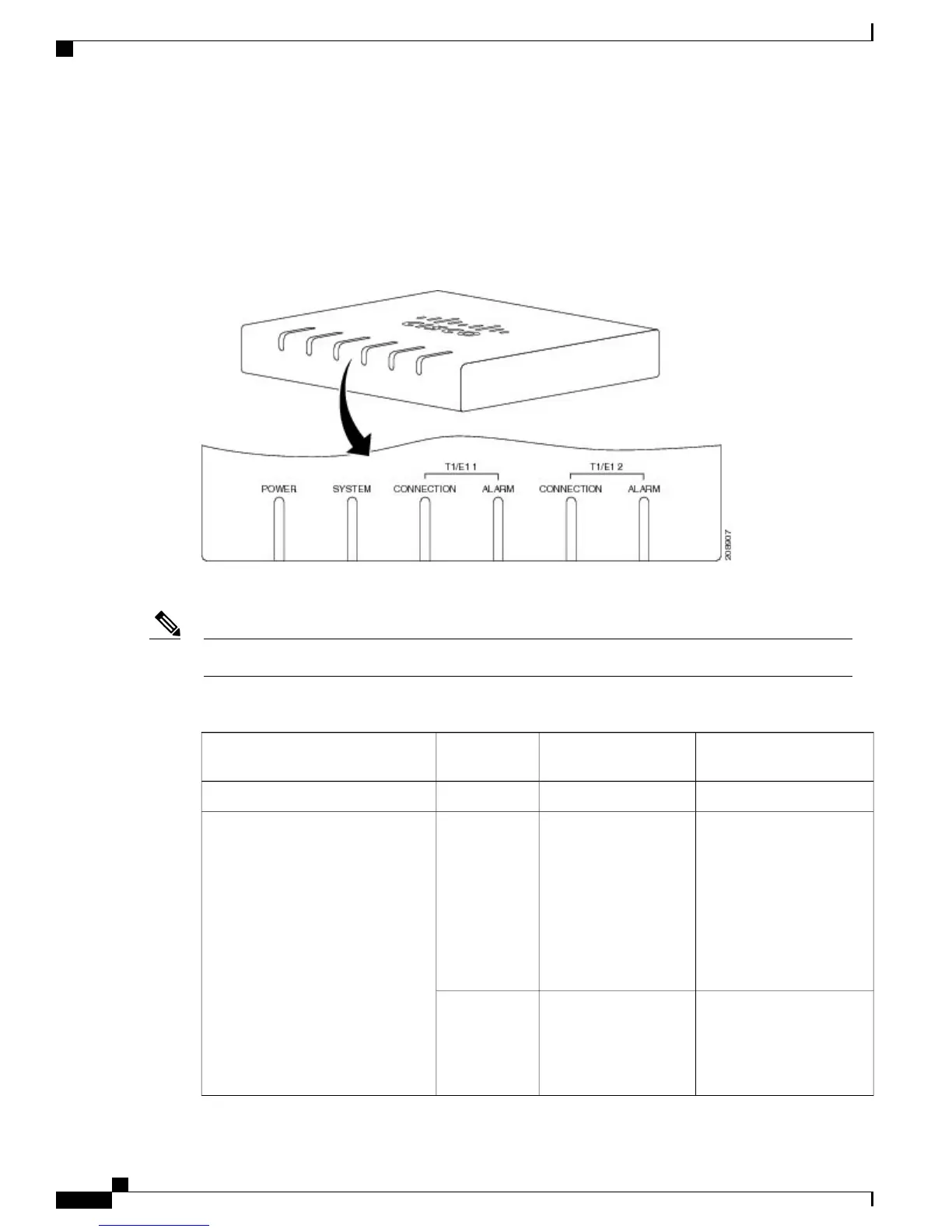

Figure 7: MCS 7890-C1 LEDs
The following table describes the MCS 7890-C1 LEDs and explains their meanings.
The Power LED is also the front power button.Note
Table 100: MCS 7890-C1 LEDs
When you see this LED, do
this:
MeaningColorName
-Power is onGreenPower
Log in to Cisco Business
Edition 3000 admin page to
determine if there are any
red X marks. If yes, check
the online troubleshooting.
If problem persists, reboot.
If that does not resolve the
issue, contact your
Cisco-certified partner.
Cisco Business Edition
3000 Administrative
Interface Health
Summary window
displays a warning.
OrangeSystem
This LED color matches the
status information in the
Cisco Business Edition
3000 Administrative
Interface Health Summary
window.
Note
Same as above. If problem
persists, reboot. If that does
not resolve the issue,
contact your Cisco-certified
partner.
Cisco Business Edition
3000 Administrative
Interface Health
Summary window
displays an error.
Red blinking
Administration Guide for Cisco Business Edition 3000, Release 8.6(4)
414 OL-27022-01
