CDM-625A Advanced Satellite Modem MN-CDM625A
CDM-625A ODU (Transceiver, BUC, LNB) Operation Revision 4
10–49
10.4.2.4.4 ODU | Utilities
The appearance of the ‘ODU | Utilities’ page adjusts to the type of ODU that is
configured for operation with the CDM-625A.
Use this page to configure various ODU utility functions for either the Comtech EF Data
CSAT-5060 or the KST-2000A/B ODU.
10.4.2.4.4.1 ODU | Utilities (CSAT-5060)

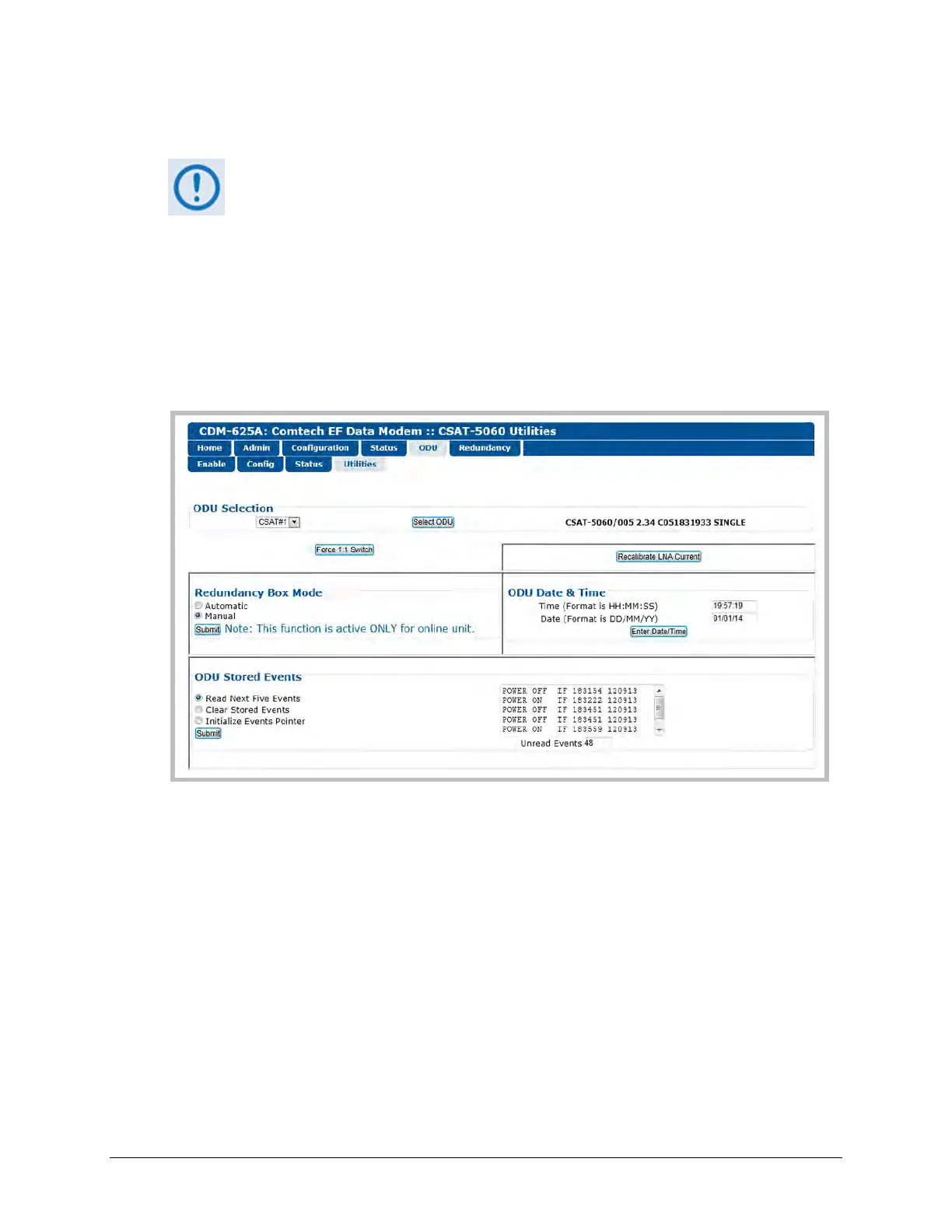

Figure 10-13 shows the ‘ODU | Utilities’ page as it appears when you configure the Comtech EF
Data CSAT-5060 as the ODU.
Figure 10-13. ODU | Utilities page (CSAT-5060)
ODU Selection
If you use ODUs in redundancy, you may toggle this page between the Online and Offline units.
Use the drop-down list to select CSAT #1 or CSAT #2, and then click [Select ODU]. A message
identifies the currently active unit as ‘ONLINE’ in the right-hand column of this section.
Force 1:1 Switch
If you use ODUs in redundancy, and the selected unit is currently the Online unit, click [Force 1:1
Switch] to force a switchover so the unit will then be in Offline (standby) mode. The command is
only valid for the Online unit in a 1:1 pair.
