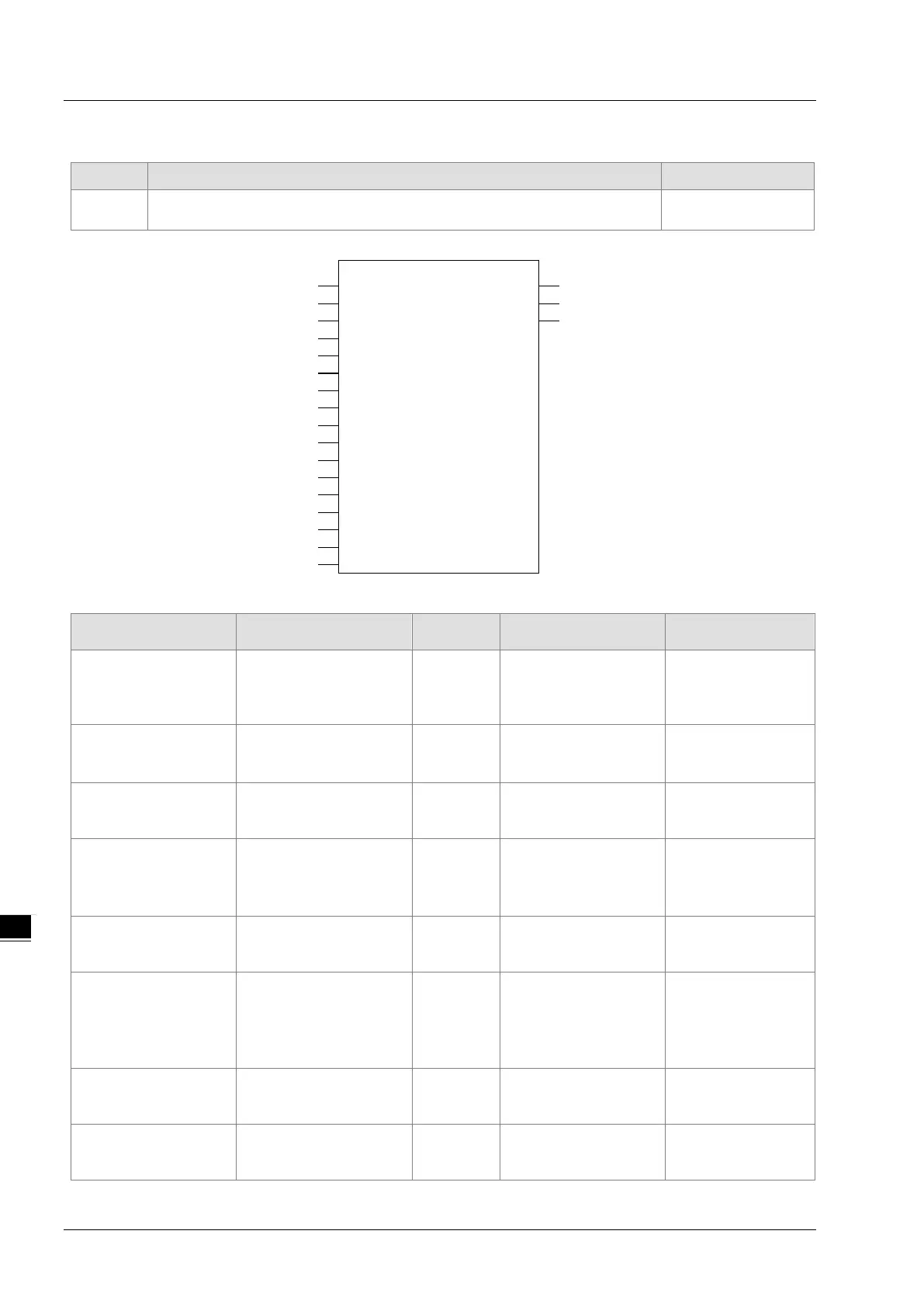

8.14.4.2 RS232_Link_Config
FB/FC
Explanation Applicable model
FB
RS232_Link_Config is used for configuration of RS232 communication
parameters of the motion controller.
DVP15MC11T
DVP15MC11T-06
RS232_Link_Config
Execute
RS232_Link_Config_instance
LinkNum
Done
Error
ErrorID
EnableLink
Noncyclic
SlaveNodeID
ObjType
En_FunCode17
Write_Buffer_Address
Write_Destination_Address
Write_Length
Read_Buffer_Address
Write_Buffer_Address_Offset
Read_Buffer_Address_Offset
Read_Destination_Address
Read_Length
Read_FunCode
Timeout
 Input Parameters
Parameter name Function Data type
Valid range
(Default)
Validation timing
Execute
The instruction is
executed when Execute
changes from FALSE to
TRUE.
BOOL
TRUE or FALSE
(FALSE)
LinkNum
Specify the number of
the Link.
UINT
1~24
(The variable value
must be set)
When Execute
changes from
FALSE to TRUE
EnableLink
Enable or disable the
Link.
BOOL
TRUE or FALSE
(FALSE)
When Execute
changes from
FALSE to TRUE
Noncyclic
Set the Link
communication mode
FALSE: Cyclic,
TRUE: Non-cyclic
BOOL
TRUE or FALSE
(FALSE)
When Execute
changes from
FALSE to TRUE
SlaveNodeID
Set the node ID of the
232 slave
USINT
0~255
(0)
When Execute
changes from
FALSE to TRUE
ObjType
Set the type of the slave
register to be read and
written.
0: Word register
1: Bit register
USINT
0~1
（0）
When Execute
changes from
FALSE to TRUE
En_FunCode17
Set if the function code
17 is used or not.
BOOL
TRUE or FALSE
(FALSE)
When Execute
changes from
FALSE to TRUE
Write_Buffer_Address
The starting register of
the master where the
data sent are stored
UINT
%MW0 ~ %MW32767
%QW0 ~ %QW63
When Execute
changes from
FALSE to TRUE
