11.6.4.7 G17/G18/G19 (Specify Circular Interpolation Plane)
 Function:
The three instructions are used for deciding the selection of circular interpolation or helical
interpolation plane and have no impact on the linear interpolation.
While the program is being executed, the three work planes can be switched with each other. If no
plane option is set, the initial state of system is XY plane (G17).
 Format: N_G17
N_G18
N_G19
 Parameter Explanation:
N_: The row number of G code in NC program

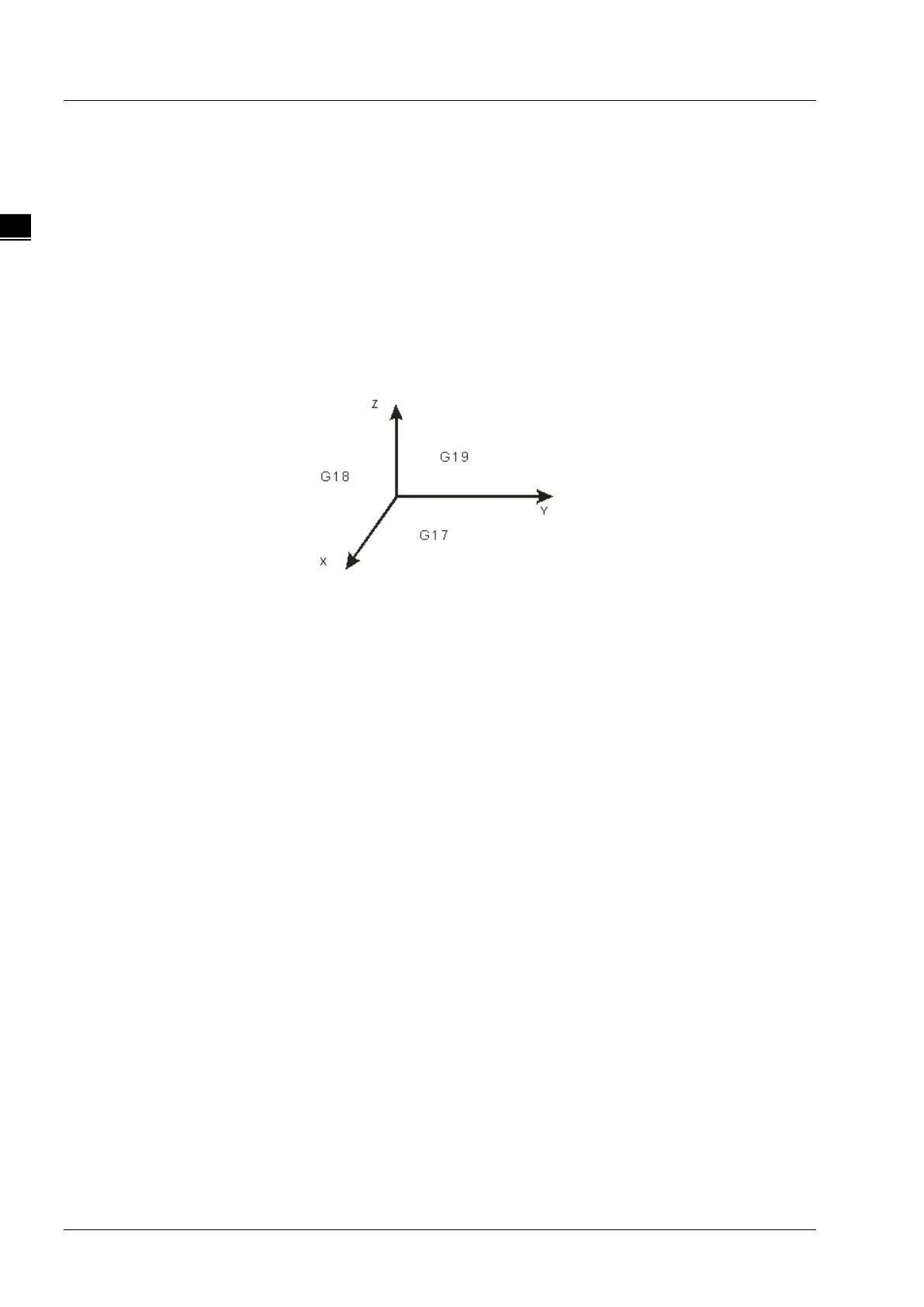

 The figure of planes is shown as follows:
