DVP-15MC Series Motion Controller Operation Manual
8-152
_8
FB/FC
Explanation
Applicable model
FC
ZONE is used for adding a bias value to the input value and the processing
result is output to Out.
DVP15MC11T
DVP15MC11T-06
 Parameters
Parameter
name
Meaning
Input/
Output
Description Valid range
BiasN
Negative
bias value
Input Negative bias
Depends on the data type of the
variable that the input parameter is
connected to.
In
Data to
control
Input Data to control
Depends on the data type of the
variable that the input parameter is
connected to.
BiasP
Positive bias
value
Input Positive bias
Depends on the data type of the
variable that the input parameter is
connected to.
Out
Processing
result
Output Processing result
Depends on the data type of the
variable that the output parameter is
connected to.
Boolean
Bit string Integer
Real
number
Time, date
String
BOOL
BYTE
WORD
DWORD LWORD USINT UINT UDINT ULINT SINT INT
DINT
LINT
REAL
LREAL
TIME
DATE
TOD
DT
STRING
Bias
N
● ●
In
● ●
Bias
P
● ●
Out
● ●
Note:
The symbol ● indicates that the parameter is allowed to connect to the variable or constant of the data
type.

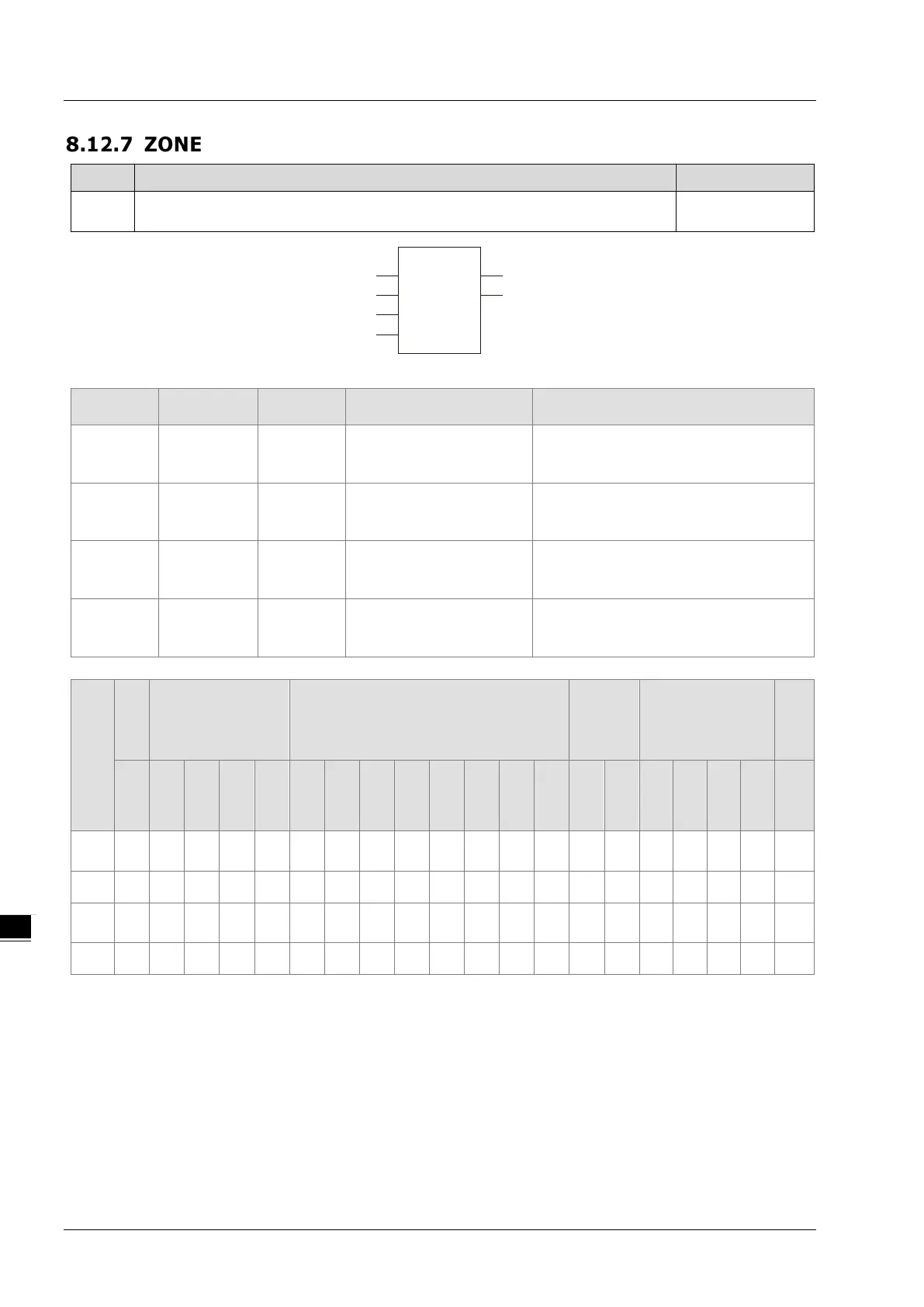

ZONE
EN ENO
BiasN Out
BiasP
In
