Control Feature of Rotary Cut Function

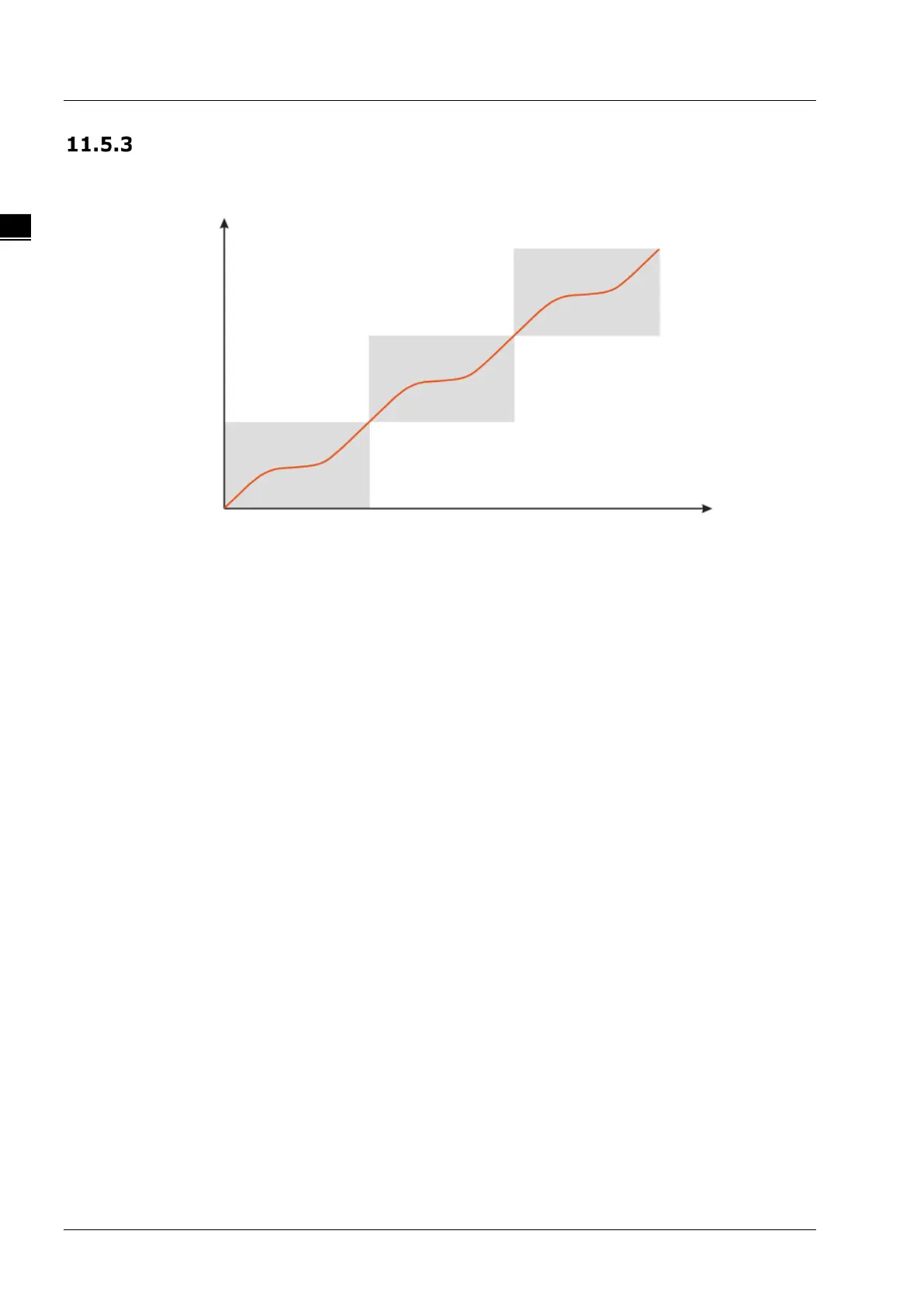

Rotary cut function is a type of special electronic cam function. The figure of cam curve is shown below for
continuous cutting.
 Features
1. Users can set the cutting length freely according to the technological requirement and the cutting
length could be less or more than the circumference of the cutter.
2. In the SYNC area, the rotary cut axis and feed axis move at a certain speed rate. (Their velocities
are usually equal.) And the cutting of material is conducted in the SYN area.
3. The motion controller supports the rotary roller with multiple knives.
4. The feed axis is able to make the constant motion, acceleration, deceleration and irregular motion
because the rotary cut axis moves according to the phase of the feed axis after the rotary cut
function is enabled.
5. When rotary cut relation is broken off, the knife stops at the zero point of the system, i.e. the entry
position for rotary cutting.
Position of rotary cut axis
Position of feed axis
