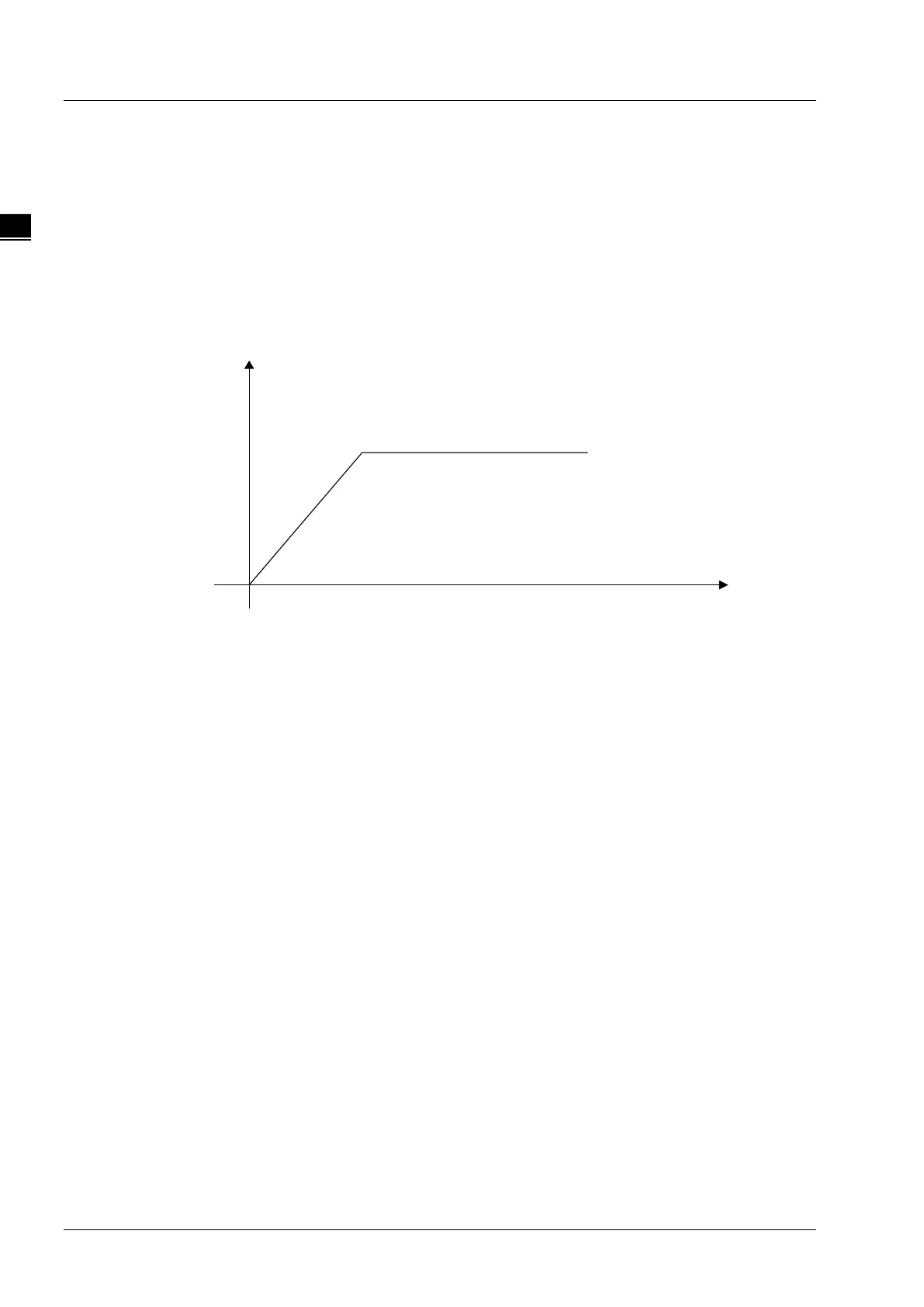

DVP-15MC Series Motion Controller Operation Manual

11-282

11.6.4.9 G50 (Precise Stop)

 Function: Change the transition mode into precise stop. And the following transition modes are always

precise stop. G51/G52 can be used for the switch in the execution process. The terminal actuator will

reduce its speed to 0 between G codes.

 Format: N_ G50

 Parameter Explanation:

N_: The row number of G code in NC program

 Example

N0 G50

N1 G1 X100 Y100

N2 G1 X300 Y100

100

300

100

Default Chapter2
