DVP-15MC Series Motion Controller Operation Manual
6-16
_6
6.5.3 SSI Absolute Encoder Hardware Connection

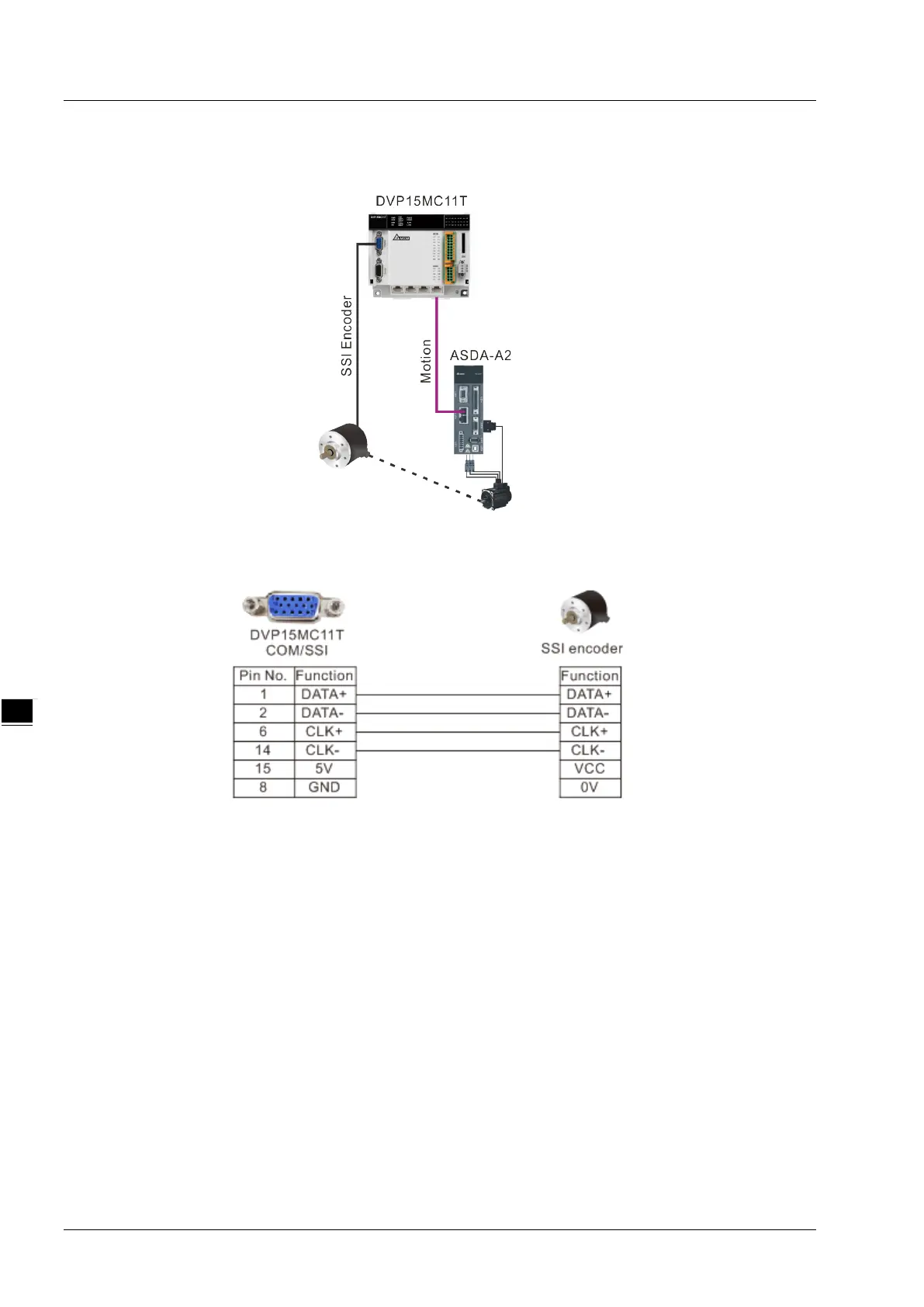

 Illustration of SSI Absolute Encoder Wiring
 Specification for SSI Absolute Encoder Interface Wiring
SSI encoder interface of the motion controller and the wiring method are shown below.
Note: The power supply for COM/SSI port of the motion controller is 5V power.
When VCC = 5V, connect the power voltage VCC of SSI encoder to pin 15 of COM/SSI interface and
0V of SSI encoder to pin 8 of COM/SSI interface.
When VCC  5V, the power is supplied to SSI encoder alone according to the actual power voltage of
the SSI encoder which is connected.
 Specification for SSI Absolute Encoder Communication Cable
Please use the shielded pair-twisted cable for CLK+, CLK-, DATA+ and DATA- signal transmission.
