Delta DVP-15MC Series User Manual

DVP-15MC Series Motion Controller Operation Manual

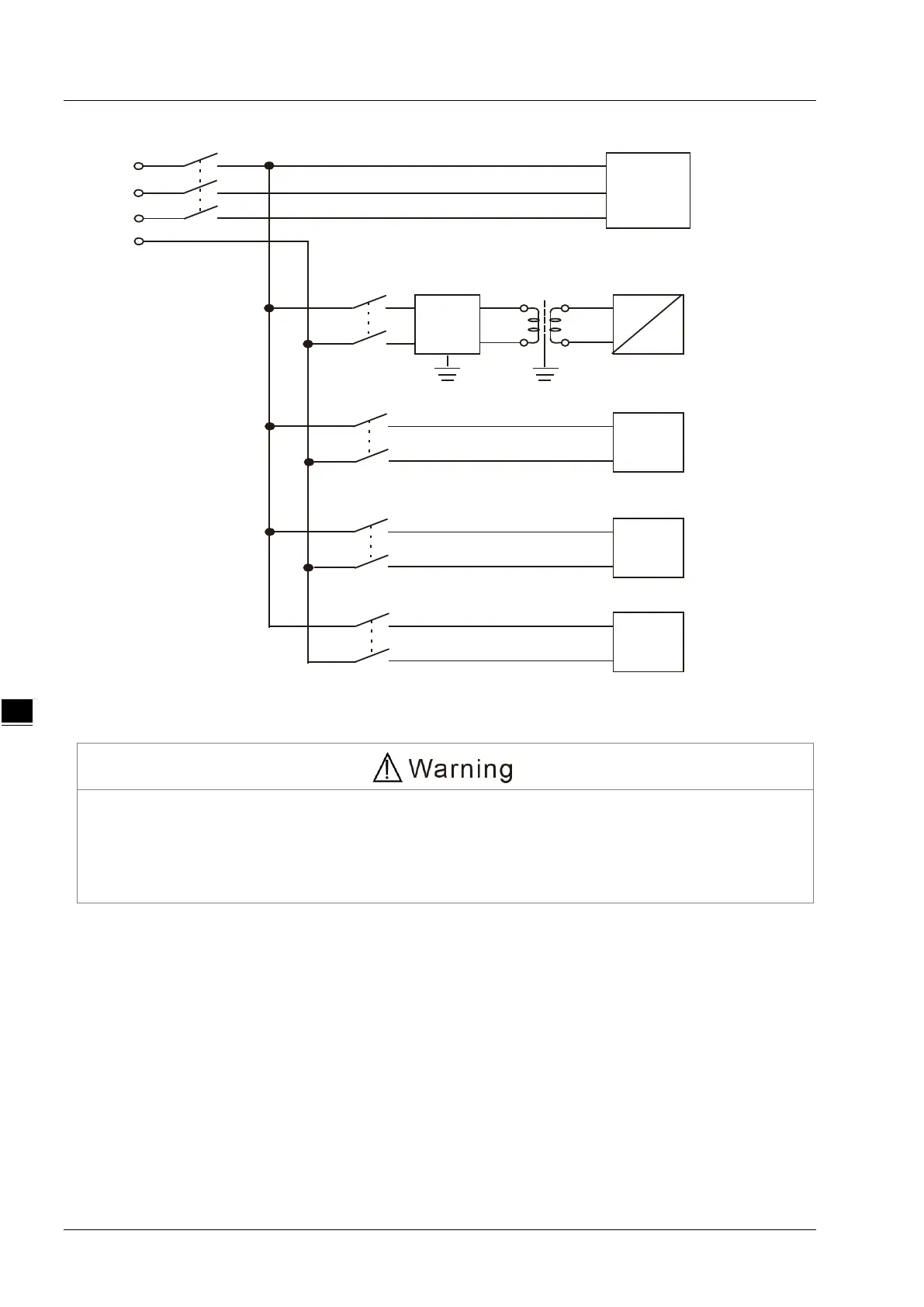

6-4
_6
Noise
filter
Isolation
transformer
AC
DC
Power supply
for Controller
Power supply for
Controller’s input points
Main circuit
1:1
Power supply for
Controller’s output points
Power supply
for other loads
N
L3
L1
L2
6.1.2 Safety Circuit Wiring
The action of any device inside the motion controller may affect the behavior of the external equipment
under the motion controller’s control over the servo drive. Therefore, any device trouble may cause the
entire automatic control system to lose control and even result in injuries and death of personnel. For
these reasons, we suggest the following safety device should be included in the power input circuit.
