Delta DVP-15MC Series User Manual

Chapter 6 Wiring, Communication Setting and Network Construction
6-5
6_
9
1
2
3
4
5
6
7
8

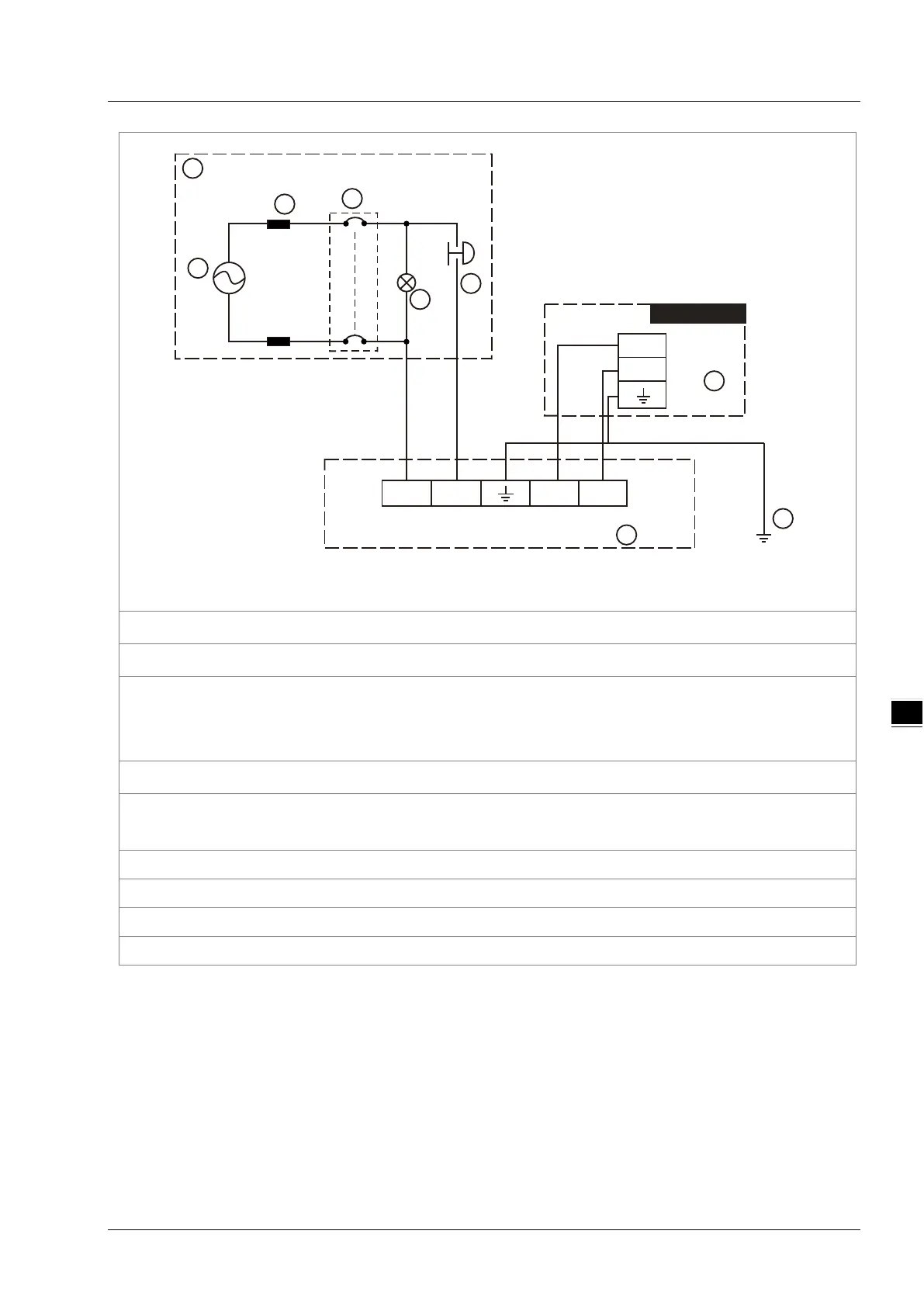

DVPPS05
24V
0V
0V24VLN
Motion Controller
 AC power supply: 100～240VAC; 50/60Hz.
 Power supply circuit protection fuse
 System circuit isolation device: The electromagnetic contactor, relay and other switch can be used
as the isolation device to prevent the system from becoming unstable when the power supply is
discontinuous.
 Power indicator
 Emergency stop button: The button cuts off the system power supply when an accidental emergency
takes place.

Delta power module DVPPS05/24VDC (DVPPS05 is recommended for the motion controller)
 The motion controller

Ground
 Safety circuit
