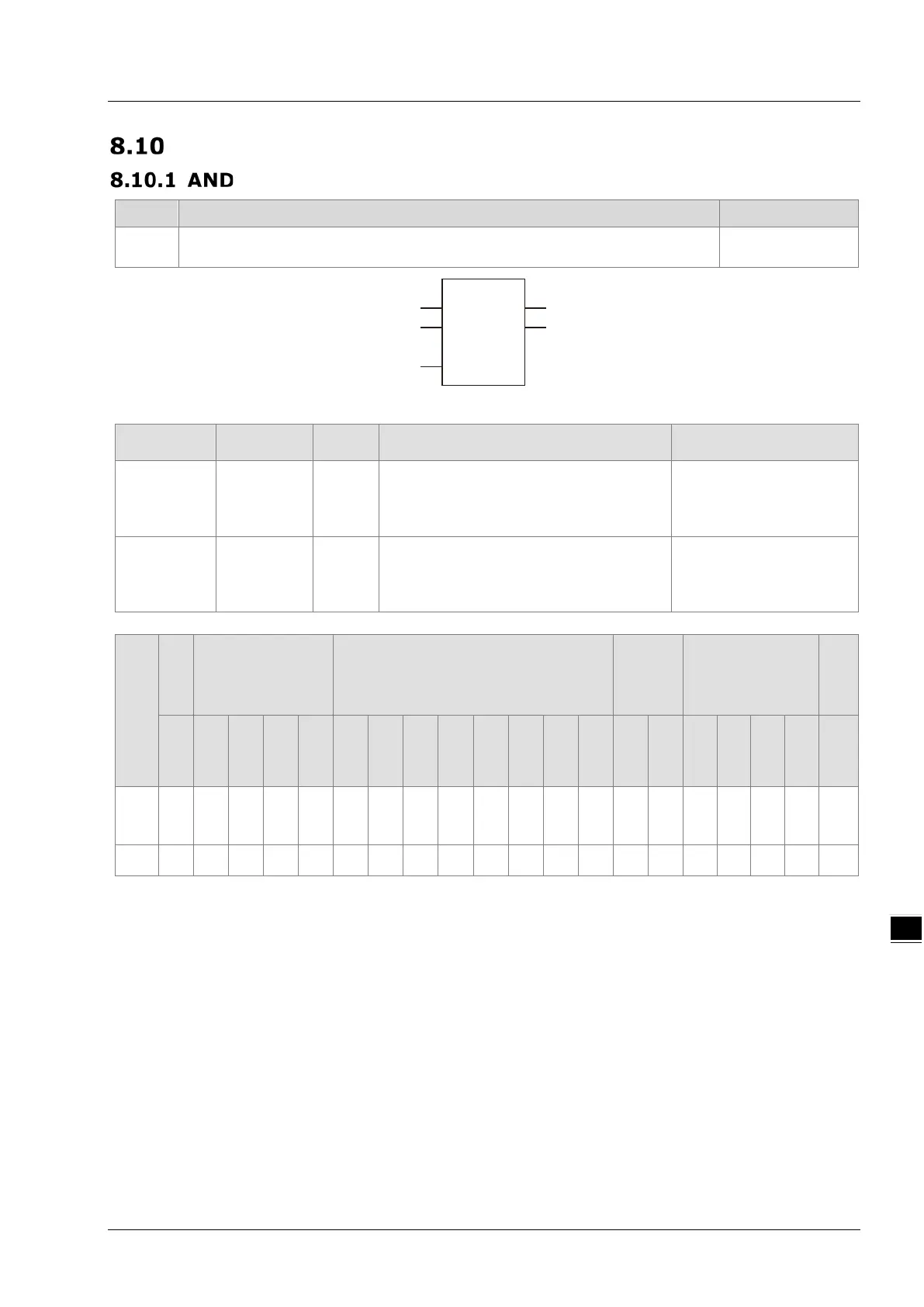

Delta DVP-15MC Series User Manual

Chapter 8 Logic Instructions
8-117
8_
Bit String Instructions
FB/FC
Explanation
Applicable model
FC
AND is used for performing a logical AND operation of two or more
variables or constants.
DVP15MC11T
DVP15MC11T-06
 Parameters
Parameter
name
Meaning
Input/
Output
Description Valid range
In1 to InN Operands Input
The number of operands can be
increased or decreased through the
programming software. Maximum: 8.
Minimum: 2. That is N=2 ~ 8.
Depends on the data type
of the variable that the
input parameter is
connected to.
Out
Operation
result
Output AND operation result of In1 ~ InN
Depends on the data type
of the variable that the
output parameter is
connected to.
Boolean
Bit string Integer
Real
number
Time, date
String
BOOL BYTE WORD
DWORD
LWORD
USINT
UINT UDINT ULINT SINT INT DINT LINT REAL
LREAL
TIME
DATE
TOD
DT
STRING
In1
to
InN
● ● ● ● ● ● ● ● ●
Out
● ● ● ● ● ● ● ● ●
Note:
The symbol ● indicates that the parameter is allowed to connect to the variable or constant of the data
type.
 Function Explanation
 AND is used for performing a bitwise logical AND operation of two or more variables or constants
and the result is output to Out. That is Out = In1 & In2 &…& InN
AND
EN ENO
In1 Out
InN
.
.
.
.
..
