G Code Functions
11.6.4.1 G90 (Absolute Mode)
Function: After G90 is executed, the terminal position of each axis in G code is based on 0 unit and
G91 can be used to switch into the relative mode in the process. It is absolute mode for NC program
by default.
Format: N_G90
Parameter Explanation:
N_: The row number of G code in NC program
Example:
The initial positions of axis X and Y are both 3000 units and the axis parameters are both default
values. The G codes to be executed are as follows:
N0 G90
N1 G0 X6000 Y6000

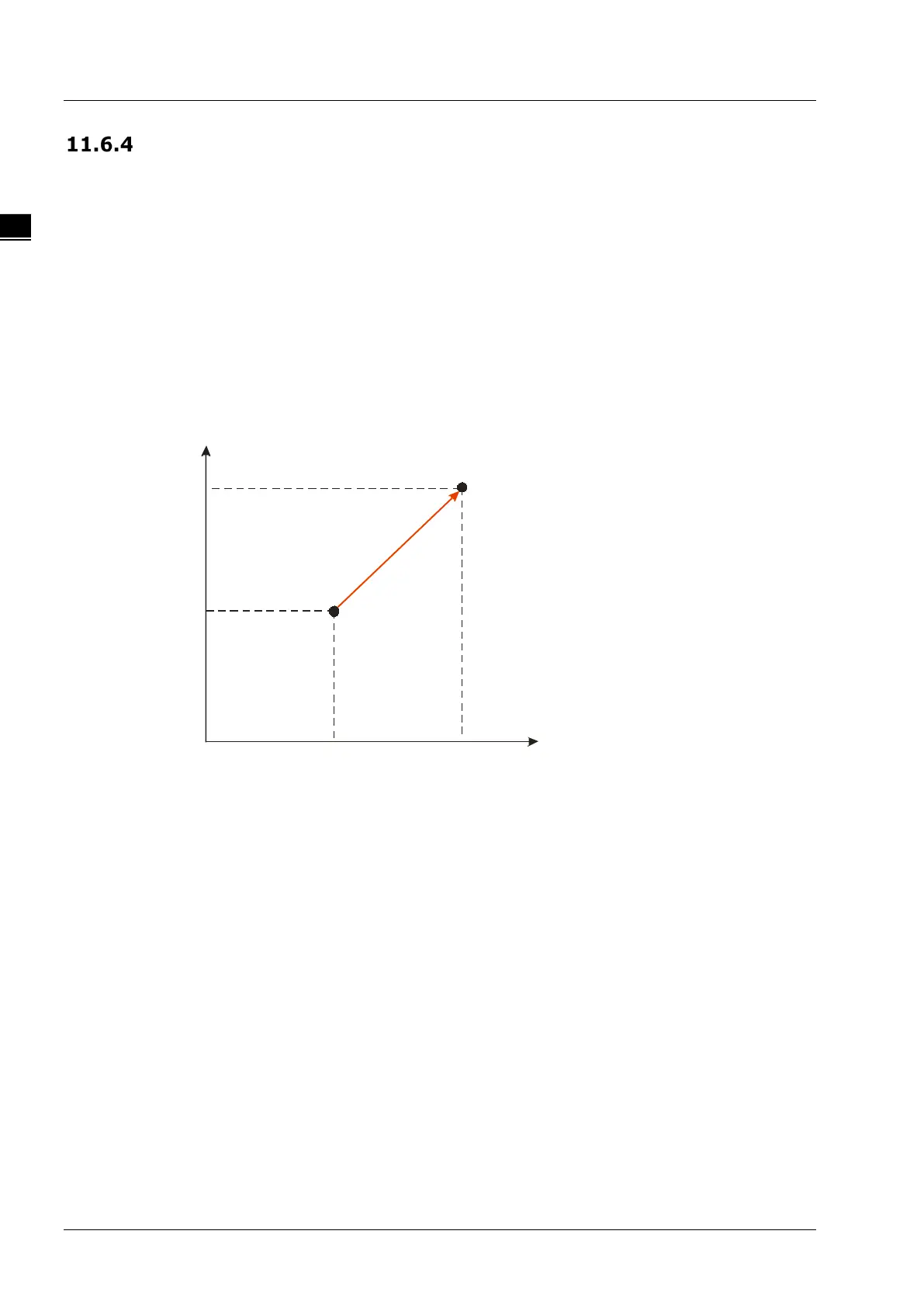

After G codes are executed, the Y/X curve for the whole movement process is shown below:
X
Position
Y
Position
O
P1
P2
3000
6000
3000
6000
