5.1.4 Connecting to the Right-side Extension Module
 Connection of DVP-15MC series motion controller and DVP16SP11T
 Pull open the extension module clips on the top right and bottom right of DVP-15MC series motion
controller and install DVP16SP11T along four mounting holes in the four angles of DVP-15MC
series motion controller as step 1 in figure 5.1.4.1.
 Press the clips on the upper right and bottom right of DVP-15MC series motion controller to fix the
module tightly and ensure that their contact is normal as step 2 in figure 5.1.4.1
C A N
E R R
1
R U N
E R R
2
R U N
0 0
1 0
0 0
0 1
1 1
0 1
0 2
1 2
0 2
0 3
1 3
0 3
0 4
1 4
0 4
0 5
15
0 5
0 6
16
0 6
0 7
17
0 7
1
2
2

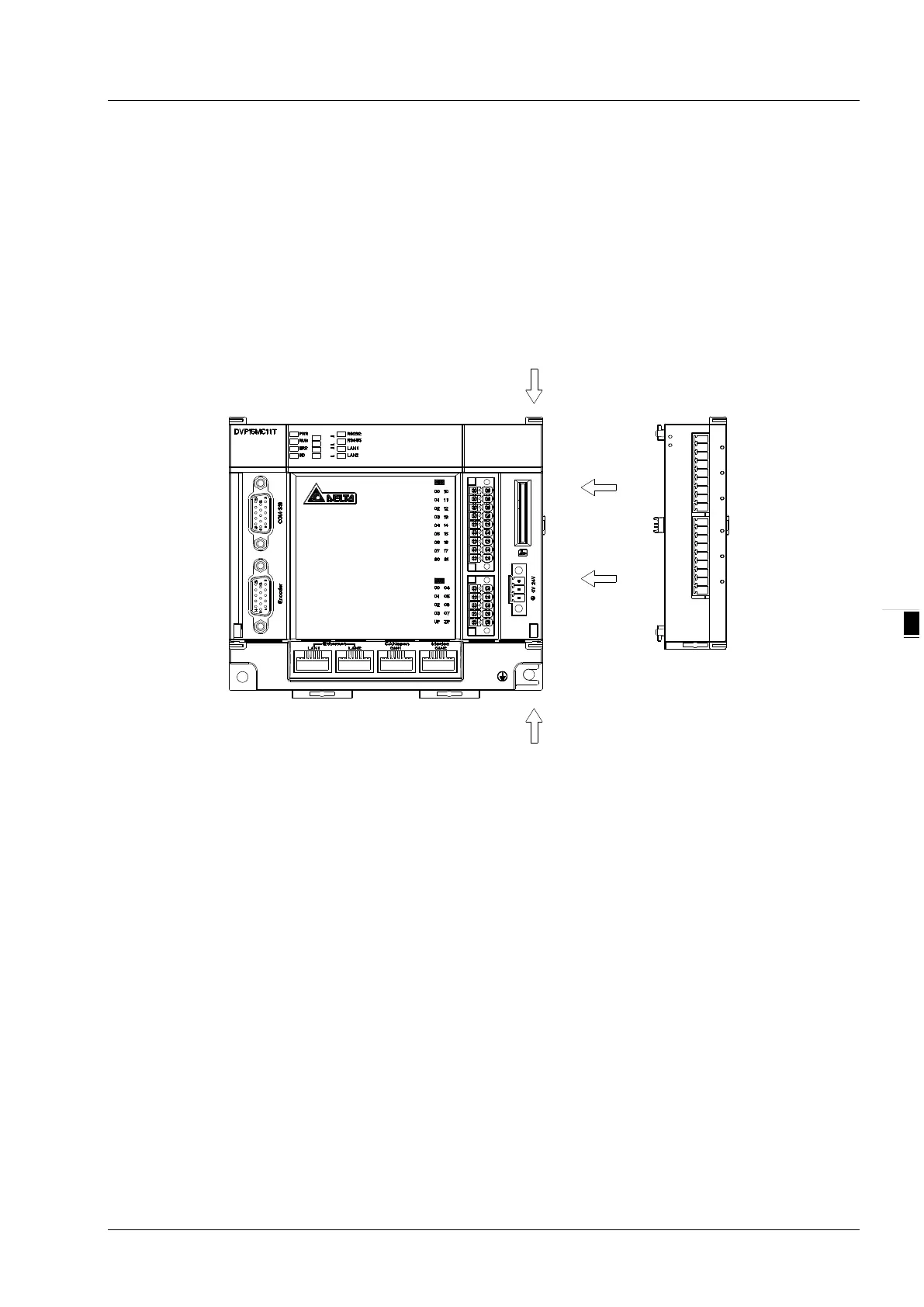

Figure 5.1.4.1
 Installing DVP-15MC series motion controller and DVP16SP11T in DIN Rail
 Use standard 35mm DIN rail.
 Pull open DIN rail clips of DVP-15MC series motion controller and DVP16SP11T and then insert
the two modules into DIN rail.
 Press the DIN rail clips into DVP-15MC series motion controller and DVP16SP11T to fix the two
modules in DIN rail as figure 5.1.4.2.
