DVP-15MC Series Motion Controller Operation Manual
6-18
_6
6.6.3 Incremental Encoder Hardware Connection

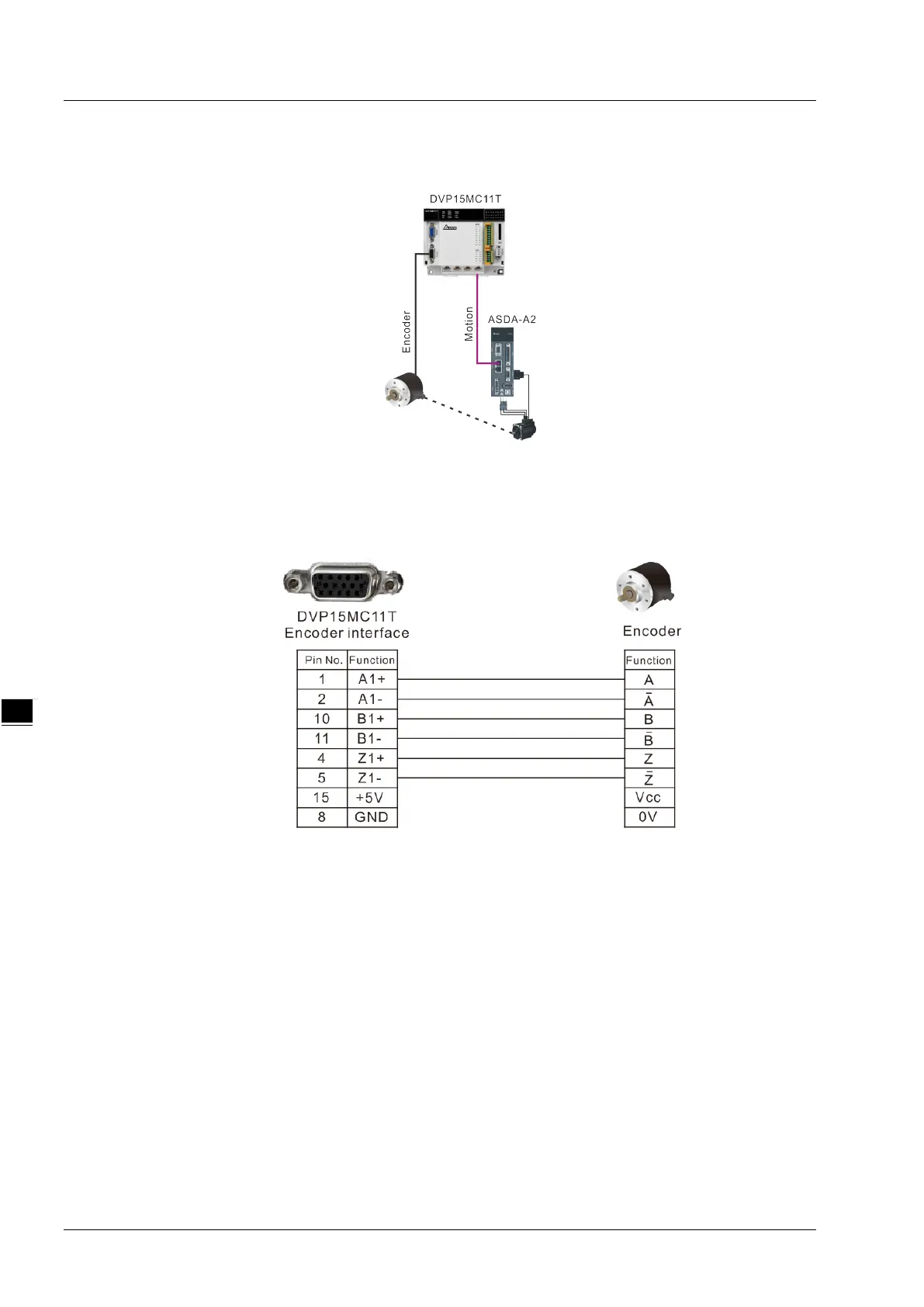

Illustration of Incremental Encoder Wiring
Specification for Incremental Encoder Port Wiring
The incremental encoder interface of the motion controller and the wiring method are shown below.
Note: The power supply for Encoder port of the motion controller is 5V power.
1. When VCC = 5V, connect the power voltage VCC of an encoder to pin 15 of the motion
controller’s Encoder interface and 0V of the encoder to pin 8 of Encoder interface.
2. When VCC 5V, the power is supplied to the encoder alone according to the actual power
voltage of the encoder which is connected.
