DVP-15MC Series Motion Controller Operation Manual
4-2
4
4.1 System Constitution

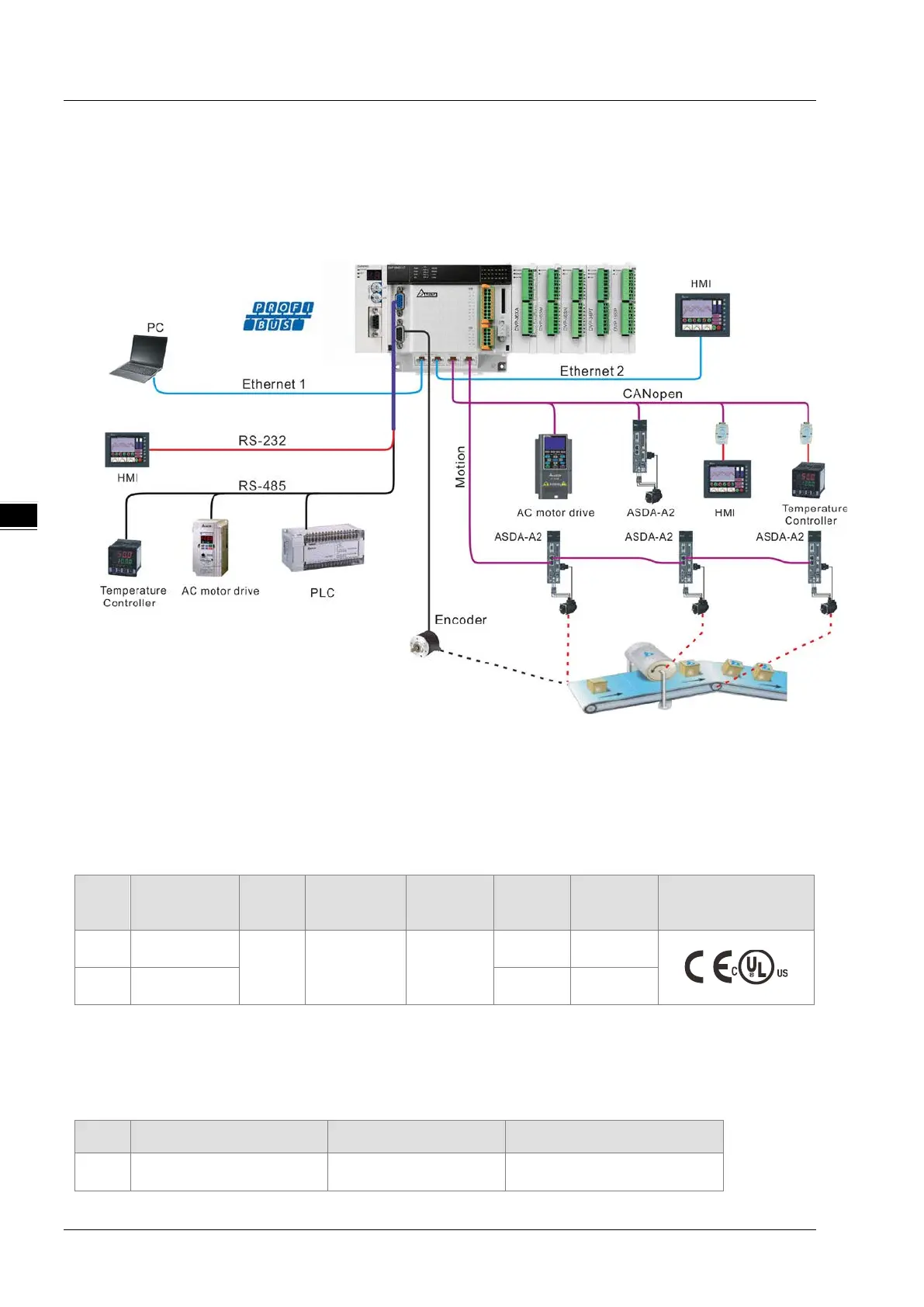

A multi-layer industrial network can be built by means of the motion controller. By using the motion controller,
the network can consist of top-layer Ethernet, middle-layer CANopen and Profibus bus as well as bottom-
layer RS-485 bus which supports Modbus as follows.
The figure above illustrates the peripheral devices which are connected to various ports of the motion
controller in the entire system. Refer to chapter 6 for details on the functions of communication ports.
4.2 Power Supply
Delta power modules are recommended as the power supply for the motion controller. The information of
Delta power modules is shown in the following table.
No.
Module
name
Phase
Input
voltage
Output
voltage
Power
Output
current
International
Standard
1 DVPPS02
Single
phase
85~264VAC 24VDC
48W 2A
2 DVPPS05 120W 5A
4.3 Left-side Extension
4.3.1 Connectable Left-side Extension Module
Max. 8 high-speed extension modules can be connected to the left side of the motion controller and the
connectable modules are listed in the following table.
No. Module name Module type Description
1
DVP04AD-SL
Analog module Analog input
