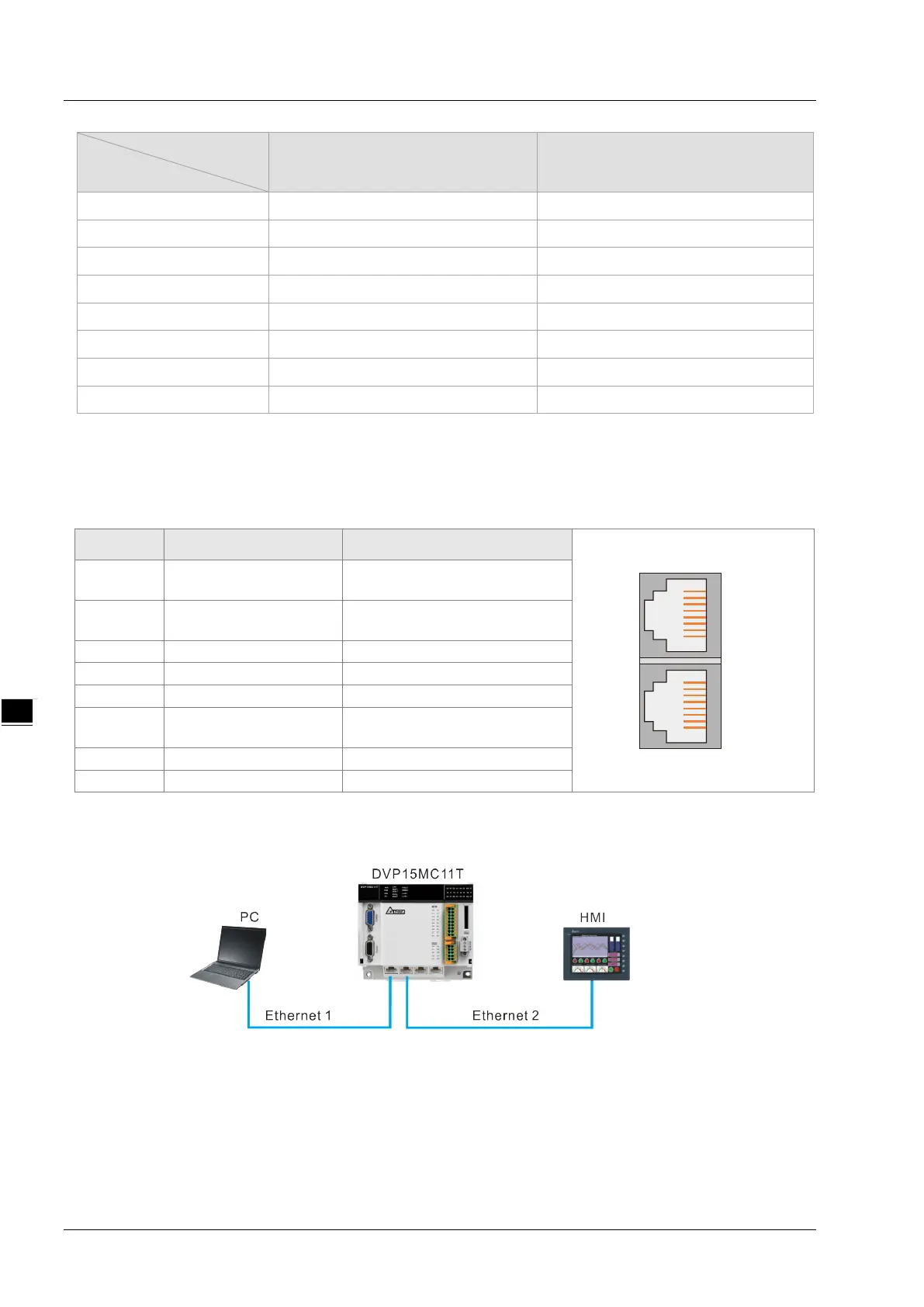

DVP-15MC Series Motion Controller Operation Manual
6-20
Start device
IO Connection
Default start device for receiving
data from the master
Default start device for sending data
to the master
Connection 1 %MW11000 %MW12000
Connection 2 %MW11100 %MW12100
Connection 3 %MW11200 %MW12200
Connection 4 %MW11300 %MW12300
Connection 5 %MW11400 %MW12400
Connection 6 %MW11500 %MW12500
Connection 7 %MW11600 %MW12600
Connection 8 %MW11700 %MW12700
6.7.2 Pins of Ethernet Communication Port
The
1 Tx+
data
2 Tx-
6 Rx-
data
6.7.3 Network Connection of Ethernet Communication Port
6.7.4 Function Codes that Ethernet Communication Port Supports
Below is the list of the function codes and exception response codes which are supported when the motion
controller’s Ethernet communication ports LAN1 and LAN2 use Modbus TCP protocol.
LAN 2LAN 1
12345678
12345678
