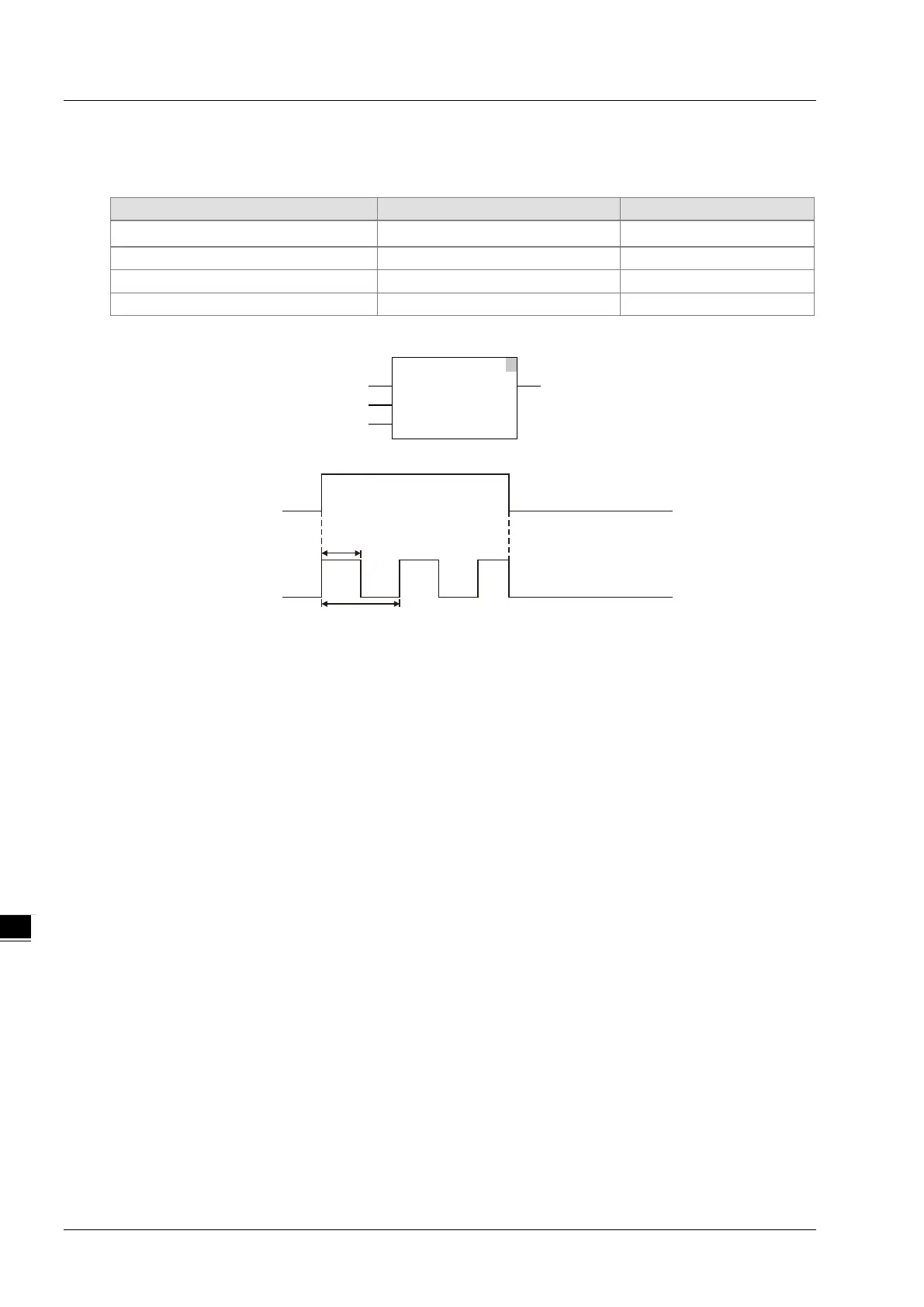

DVP-15MC Series Motion Controller Operation Manual

8-324

 Programming Example

 The variable table and program

Variable name

Data type

Initial value

GPWM0

GPWM

GPWM0_En

BOOL

FALSE

GPWM0_In1

INT

1000

GPWM0_In2

INT

2000

GPWM

Enable

GPWM0

In1

In2

Out

%QX0.0

GPWM0_En

GPWM0_In2

GPWM0_In1

 Timing Chart

t=1000ms

T=2000ms

%QX0.0

GPWM_EN

 Additional Explanation:

When GPWM_EN changes to TRUE, the instruction works nornally.

When GPWM_EN changes to FALSE, the output of the instruction changes to FALSE.
