Delta DVP-15MC Series User Manual

Chapter 5 Installation
5-7
5
 Installing SD card
Insert an SD card to the memory card slot directly and push it to the end of the slot until hearing a click. After
the installation is finished, the SD card should be fixed tightly. If the SD card inserted to the slot is loose, the
installation is unsuccessful. In addition, the SD card has a fool-proofing design. If the direction in which SD
card is inserted is wrong, the card will fail to reach the end of the slot. In this case, do not force to push the
SD card toward the end of the slot in order to avoid the damage to the module and SD card.

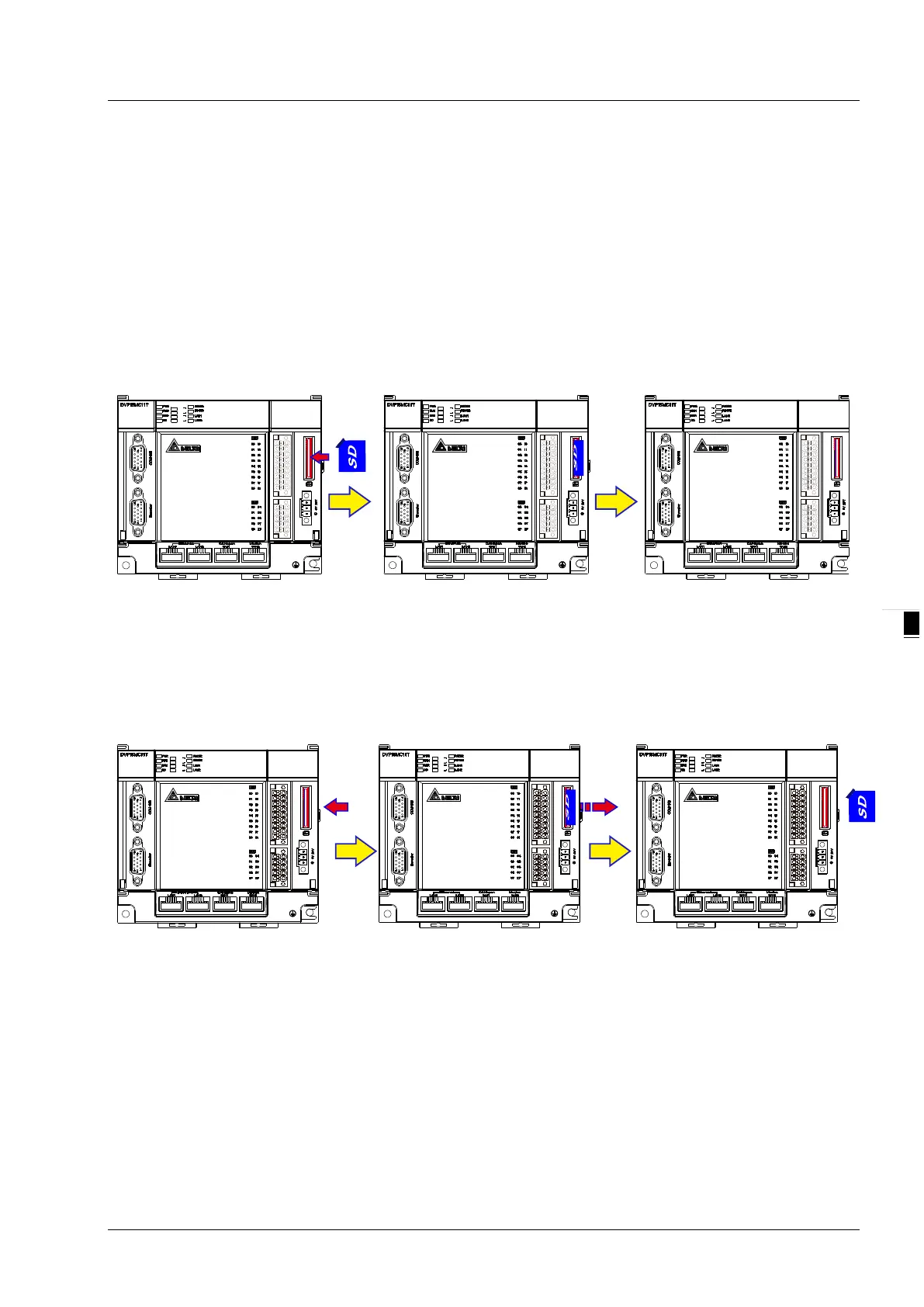

Follow the instructions in the figures below to insert the SD card in the right direction.
 Removing SD card
Just push the SD card to the end of the slot so that the SD card will loosen and rebound from inside the slot.
And then remove the SD card out of the slot easily.
