corresponding slave axis position is 180 (180=120+60).

Case 2： The master axis position corresponding to the slave axis position will shift (add) by 90

based on the planned position as MasterScaling and SlaveScaling are 1, MasterOffset

is 90 and SlaveOffset is 0.

For example, in the planned cam relationship, the master axis position 180

corresponds to the slave axis position 120 and in the actual execution, the master axis

position 90 corresponds to the slave axis position 120 which is the slave axis position

corresponded to by the master axis position 180 (180=90+90) in the planned cam

relationship.

 StartMode

In the engagement, the way how the slave axis moves is specified by the StartMode parameter. That is,

StartMode works at stage 4 in the execution of the MC_CamIn instruction as shown in the following

figure.

Stage 1: Trigger and execute the MC_CamIn instruction.

Stage 2: Wait for the start of the engagement.

Stage 3: The master axis reaches the position where the engagement begins and the slave

axis starts to perform the engagement action.

Stage 4: The engagement is ongoing.

Stage 5: The engagement is completed and the master axis and slave axis achieve the

synchronization.

Stage 6: The master axis and slave axis are in the synchronous motion.

The cam synchronization requires that the master axis cam phase and the slave axis cam phase meet

the defined cam relationship. The engagement process is the process in which the slave axis moves

toward the synchronous phase. The synchronous phase and the master axis cam phase meet the

defined cam relationship. Since the axis cam phase is cyclic, every cam phase is corresponded to by

multiple axis positions. When the engagement occurs, there are many selections for the expected

synchronization position. And thus there are several engagement ways for option.

For example, when the engagement starts, the master axis cam phase and slave axis cam phase are

80 and 180 respectively as point O in the following figure. But the defined cam relationship requires that

the slave axis cam phase is 40 and thus the synchronous position that the slave axis expects is 40 or

400 (Point A or point B in the following figure) at the moment. The engagement process from Point O to

A or Point O to B can be selected via the StartMode parameter.

Slave axis position

Maste r axis position

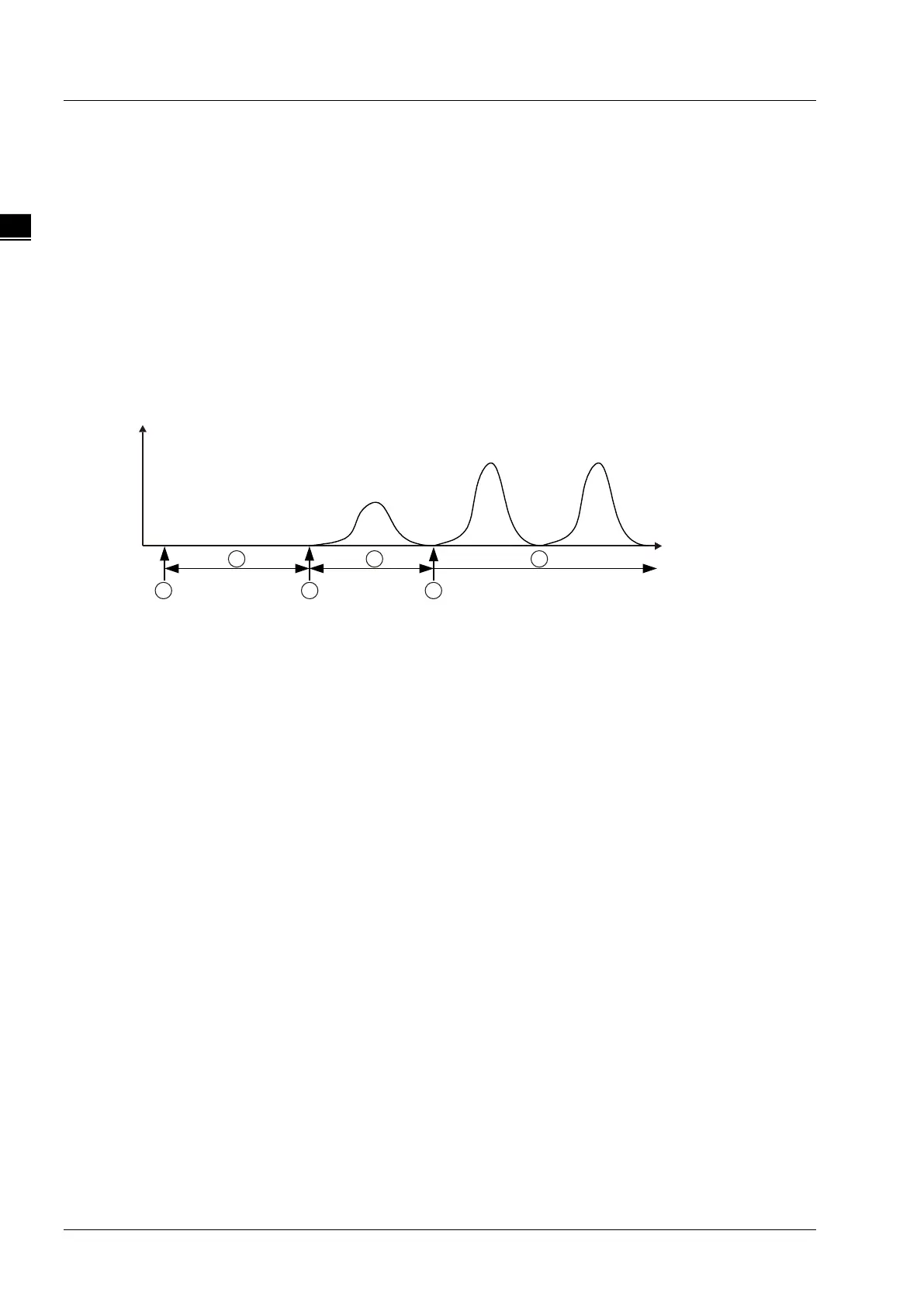

MC_CamIn Ex ecution P rocess
