Dionex ICS-3000 - TC Interior Components

TC Description
Doc. 065031-04 1/08 93
2.20 TC Interior Components
Figure 2-52 illustrates the interior of the TC. The components installed in your TC
may vary, depending on your application.
Injection Valves
The TC can hold one or two electrically-actuated, high-pressure injection valves.
Two valve models are available:
• A 2-position, 6-port Rheodyne TitanHP™ injection valve
• A 2-position, 10-port Rheodyne TitanHP™ injection valve
See Section 2.22
for details about the injection valves.

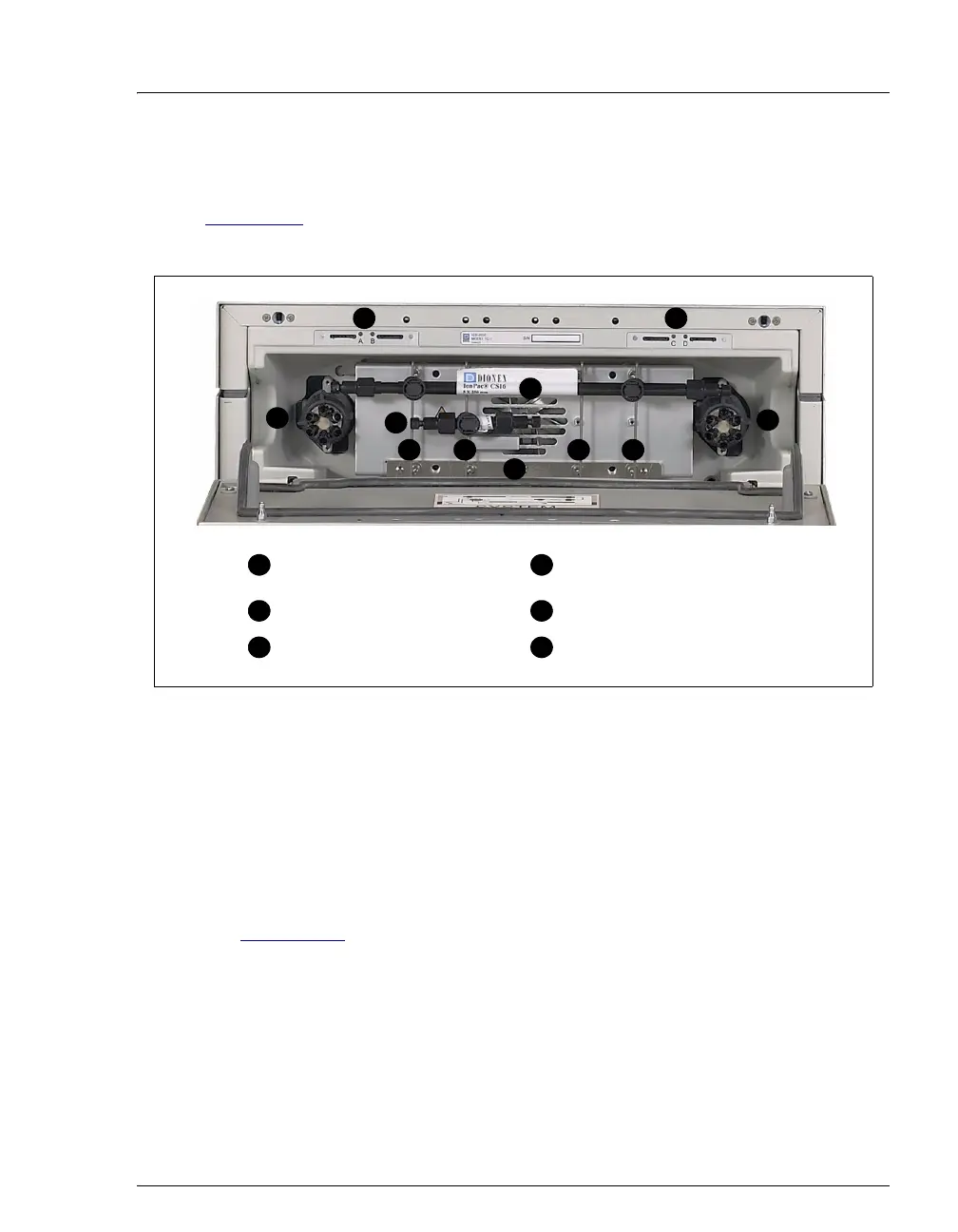

Figure 2-52. TC Interior View: Example Configuration
Separator Column
1
2
3
5
Column Brackets
Temperature Stabilizer
Slots for Column ID Chip
Cards (A, B, C, and D)
Guard Column
2
4
5
1
2
3
4
Injection Valves
1
5 5
6
5
6
