Dionex ICS-3000 - High-Pressure Switching Valves

ICS-3000 Ion Chromatography System
74 Doc. 065031-04 1/08
In addition to the configurations described above, you can order the following
components separately for installation on an AM:
2.17.1 High-Pressure Switching Valves
Up to two high-pressure switching valves can be installed on an AM. Two
models are available: 6-port (P/N 061961) and 10-port (P/N 061962).
Both models are electrically-activated, two-position valves. Figure 2-38
and Figure 2-39
show the liquid flow path through the valve ports at each
valve position.
AM Component Part Number
High-pressure valve, 6-port 061961
High-pressure valve, 10-port 061962
Low-pressure valve, 3-way 061971
Low-pressure valve, 2-way 061745
RCH-1 Reaction Coil Heater 061746
Temperature stabilizer, standard bore, 0.25-mm (0.010-in) ID 062561
Temperature stabilizer, microbore, 0.125-mm (0.005-in) ID 062562

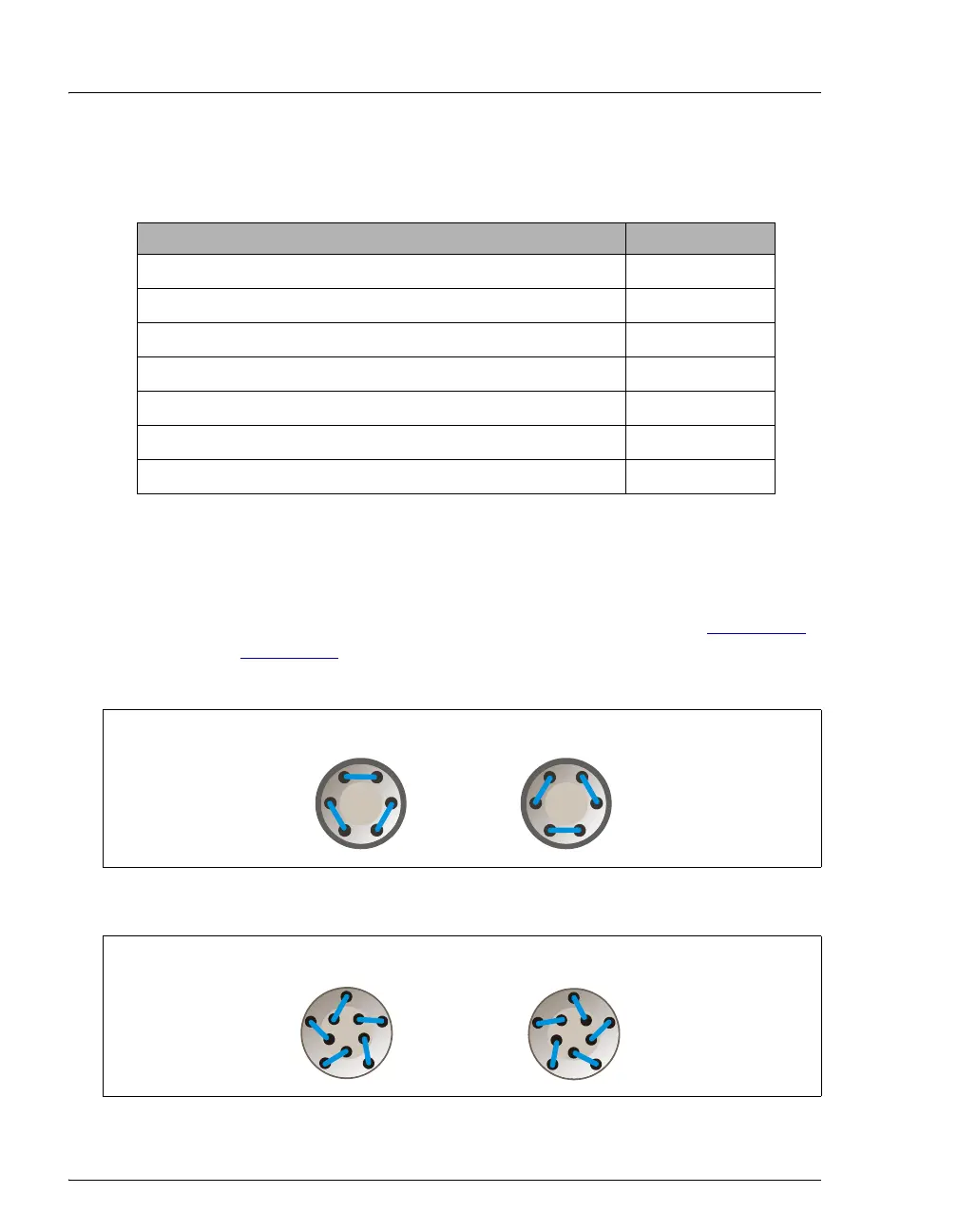

Figure 2-38. High-Pressure Switching Valve Flow Schematics: 6-Port Valve
Figure 2-39. High-Pressure Switching Valve Flow Schematics: 10-Port Valve
P
OS
ITI
O
N A
POSITION B
4
1
5
6
2
3
4
1
5
6
2
3
P
OS
ITI
O
N A
POSITION B
1
3
5
7
9
2
4
6
8
1
0
1
3
5
7
9
6
2
4
8
1
0
