loop with it. Excess flows out to waste. Eluent flows from the pump,
through the valve, and to the separator column, bypassing the
concentrator column.
2.22.2 Injection Valve Plumbing
Figure 2-57 shows the injection valve connections for the 6-port valve.
The injection valve is plumbed at the factory with all tubing and fittings
for connection to the pump, sample loading port, column, and waste. A
25 μL PEEK sample loop (P/N 042857) is installed between ports L (1)
and L (4).
Dionex offers sample loops in various sizes. If needed, the pre-installed
25 μL loop can be replaced with a loop that has a different sample
injection volume.

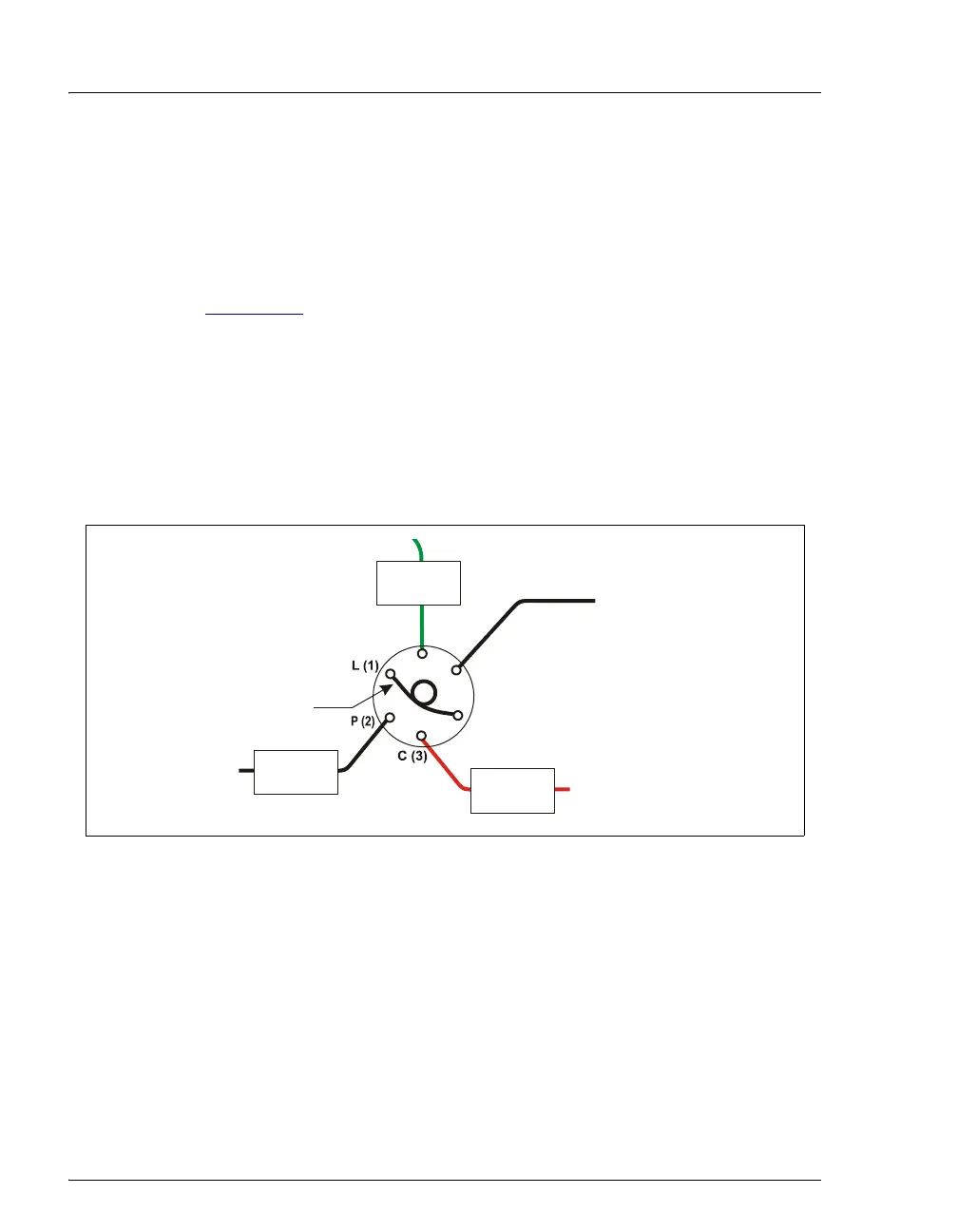

Figure 2-57. Injection Valve Plumbing (6-Port Valve)
SAMPLE IN
(from door
inject port or
autosampler)
(Red - microbore)
(Black - standard bore
)
TO INJECT
VALVE -P
TO INJECT
VALVE -W
TO INJ
VALVE -C
25 μL SAMPLE LOOP
(Orange)
L (4)
S (5)
W (6)
