Dionex ICS-3000 - DC Rear Panel

2 • DC Description
Doc. 065031-04 1/08 47
NOTE A DC Temperature Calibration Kit (P/N 063782) is
available. The kit includes the parts and instructions
required to verify the temperature calibration of the DC
upper and lower compartments and to recalibrate, if
required.
2.13 DC Rear Panel
Figure 2-15 illustrates the rear panel of the DC.
Tubing Chases
The tubing chases route tubing from the front compartment, through the DC
interior, and to the rear panel. Foam inserts insulate the chases.

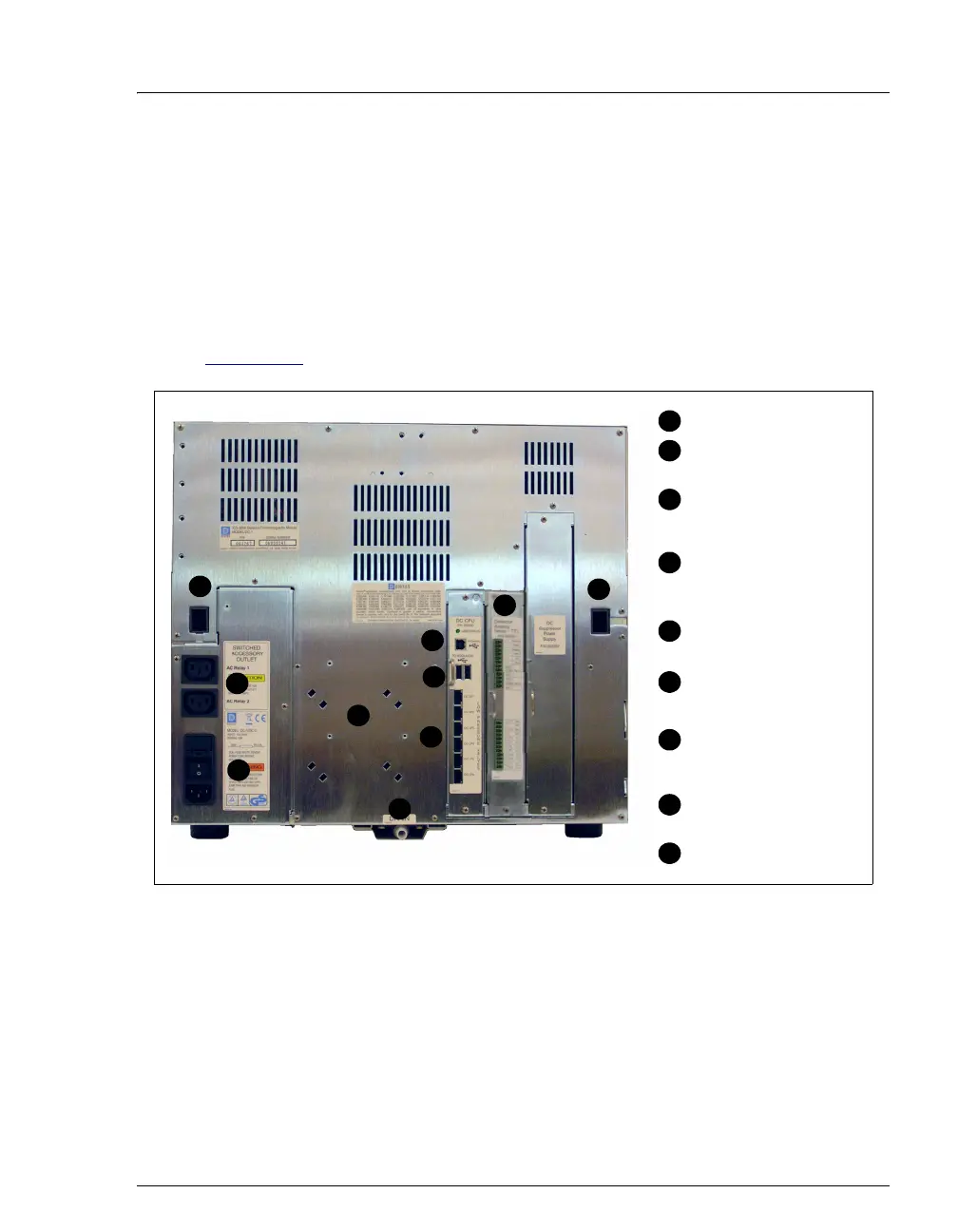

Figure 2-15. DC Rear Panel
Tubing Chase (2)
Analog Output and
TTL/Relay Connectors
(optional)
USB Receptacle
(“B” Connector)
External Low
Pressure Valve
Connectors
1
Switched AC Sockets
2
3
4
5
6
7
1
2
3
4
5
7
6
Fuse Holder, Main
Power Switch, and
Power Receptacle
1
USB Ports (2)
(“A” Connectors)
8
8
Drain Line Connector
9
External Low
Pressure Valve
Mounting Slots
9
