2.8 EG Interior Components
Figure 2-8 shows the EG component compartment, which is located directly
behind the front door. The component mounting panel divides the compartment
into two sections. In a single-channel EG, components are installed in the left
section only.
To access components for maintenance or service procedures, push down on the
slide release latch and pull the tray forward until it reaches the stop.

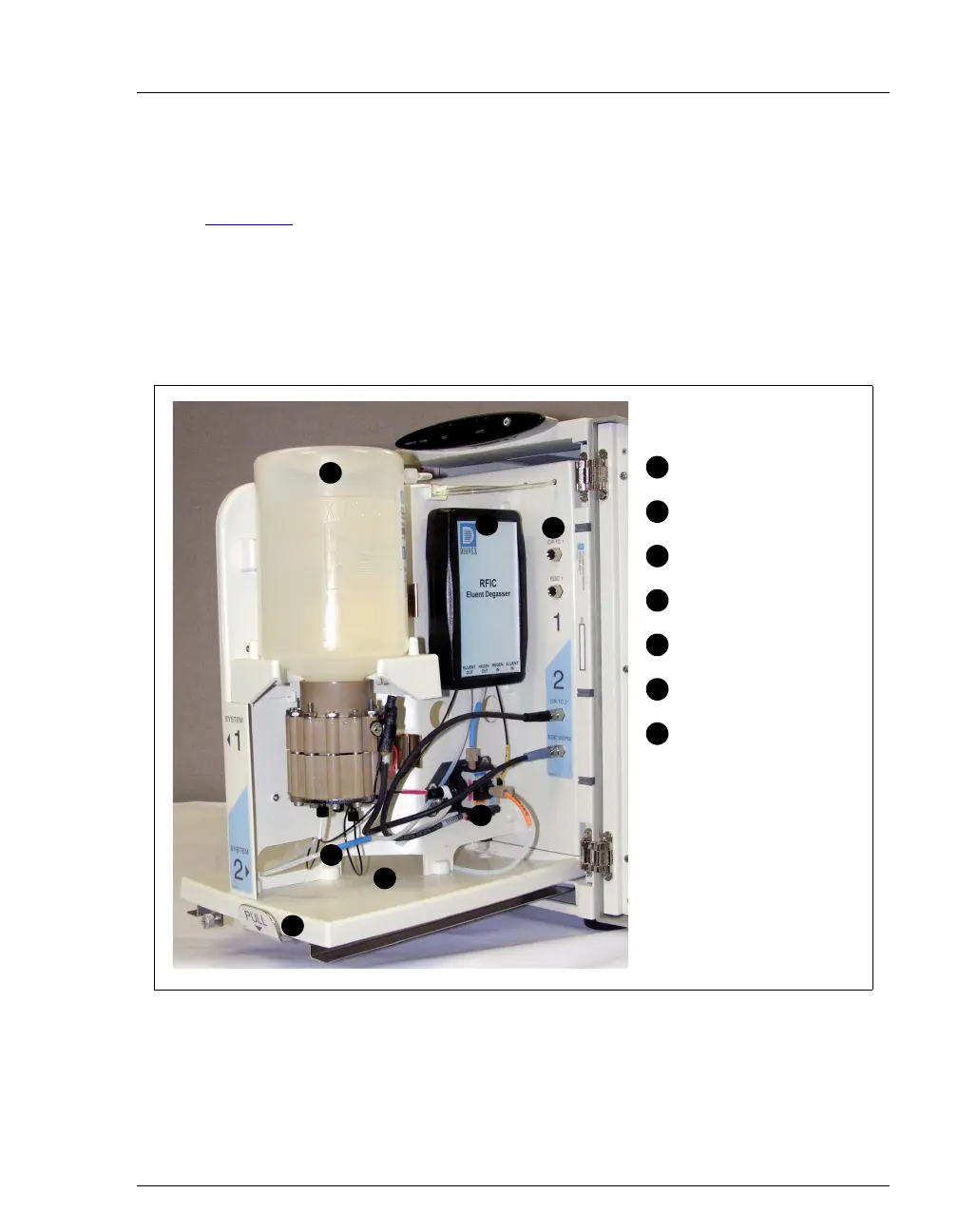

Figure 2-8. EG Interior Components
(Second (Right Side) Channel of a Dual-System EG Shown)
EluGen Cartridge
CR-TC
1
3
4
5
6
RFIC Eluent Degasser
Waste Line
Electrical Connectors
Drip Tray
2
1
2
3
7
5
4
7
Slide Release Latch
6
