5.3.1 Loading Samples with a Syringe (Push Method)
Connecting a Sample Loading Port to the Injection Valve
1. For each sample loading port to be connected, locate the following
items in the DC Ship Kit (P/N 062614, dual; P/N 063408, single):
• One 1/4-28 fitting (P/N 052230) and ferrule (P/N 052231)
• One 10-32 fitting (P/N 062980) and ferrule (P/N 062978)
• 0.75-mm (0.030-in) ID green PEEK tubing (P/N 052304)
• One luer adapter fitting (P/N 024305)
2. Press the metal release tab under the sample loading port on the front
of the DC (see Figure 5-3
) and pull the port out the front of the DC.

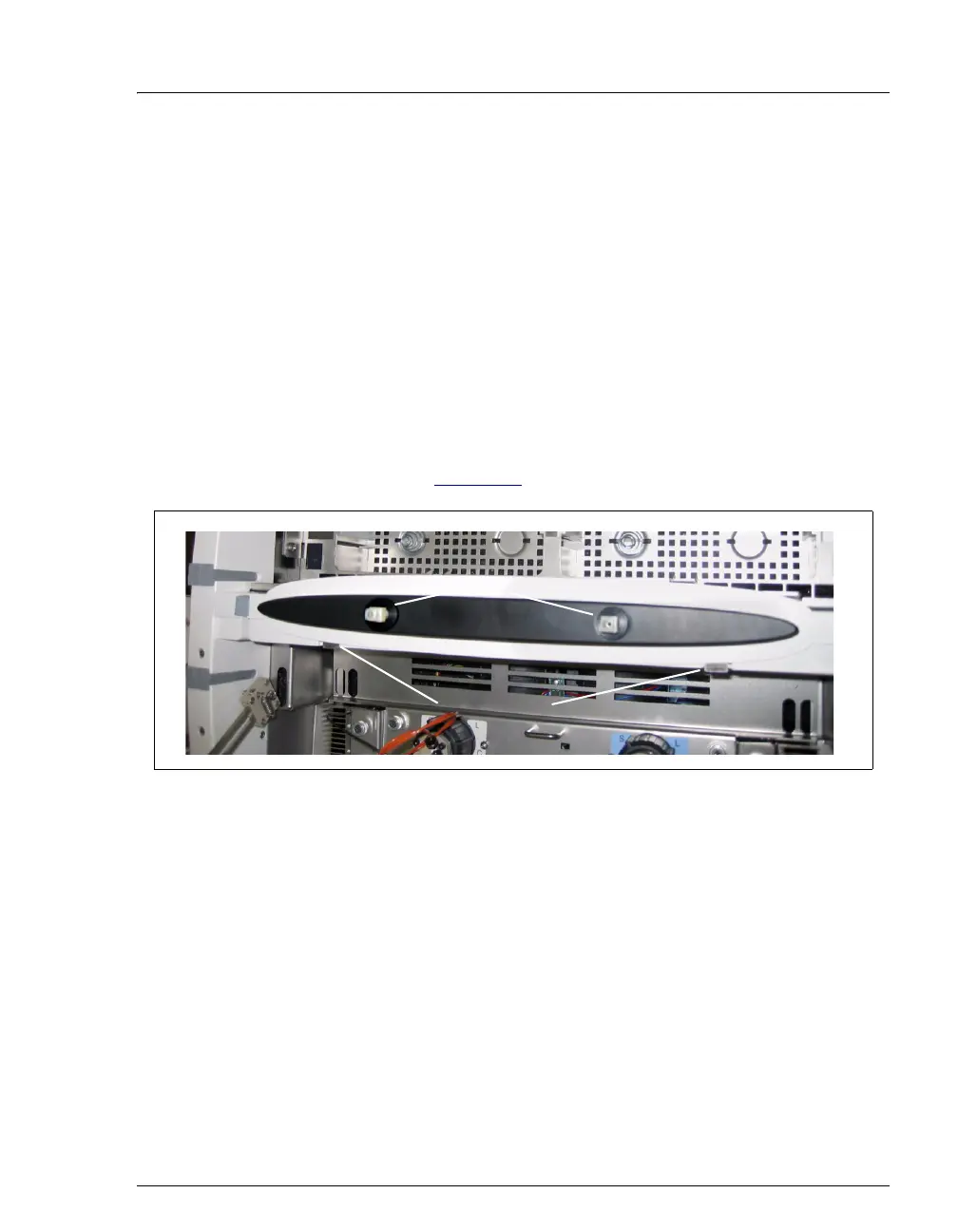

Figure 5-3. Sample Loading Ports and Release Tabs
Sample Loading Ports
Release Tabs
