Dionex ICS-3000 - Automation Manager

2 • DC Description
Doc. 065031-04 1/08 73
2.17 Automation Manager
The ICS-3000 Automation Manager (AM) provides a mounting location for
various components used for performing matrix elimination, large volume pre-
concentration, post-column reagent addition, and other functions.
Each AM consists of a tray on which valves and other components are installed
(see Figure 2-37
). The tray is installed in the upper compartment of the DC (see
Figure 2-13
). Connections to other components in the system (pump, injection
valve, reagent reservoirs, etc.) depend on the application. Refer to Chapter 3
for
the configuration schematic for your application.
The AM is available in the following configurations:

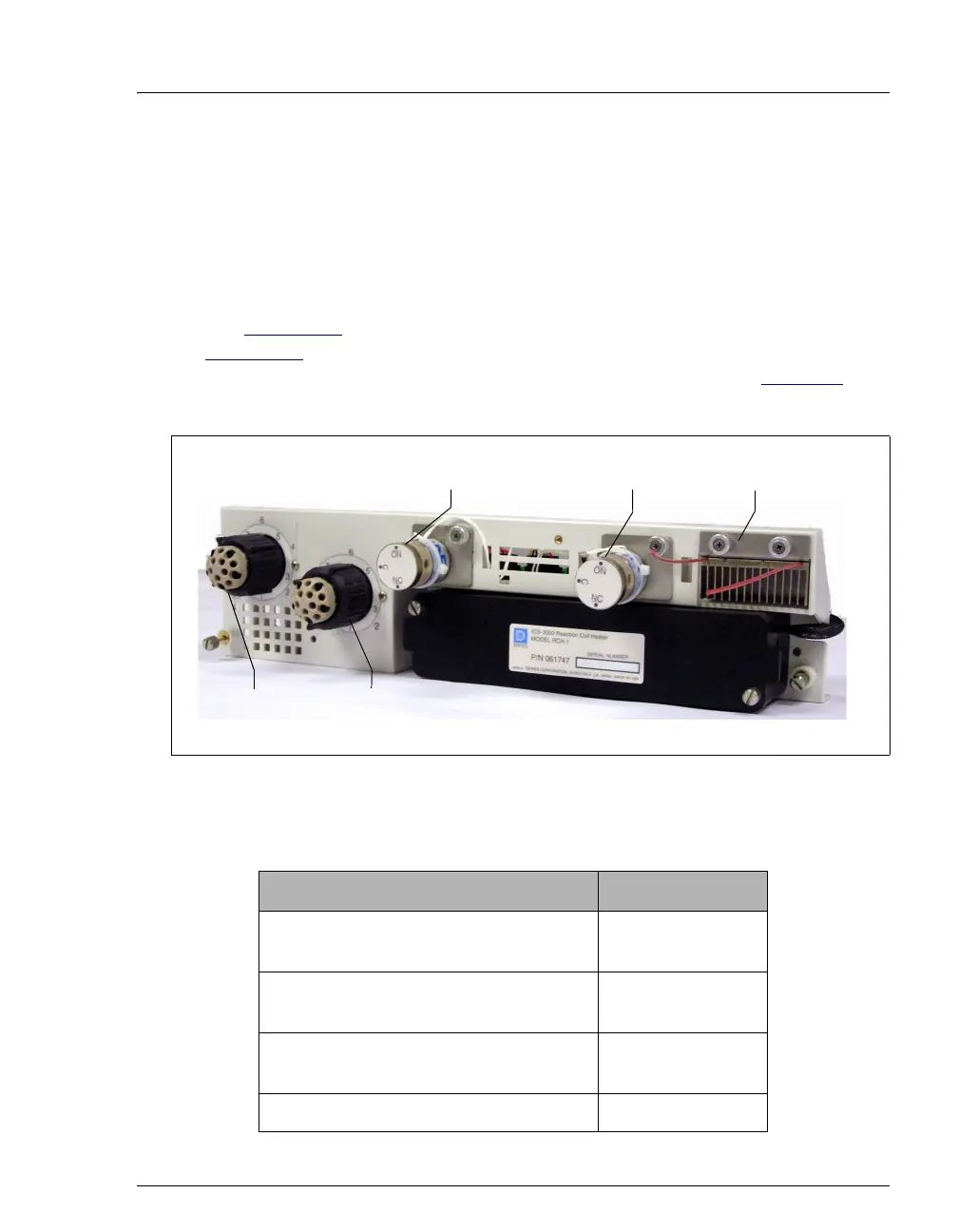

Figure 2-37. ICS-3000 Automation Manager
Components Included
AM Part Number
Two 10-port high-pressure valves
Two low-pressure 3-way valves
061738
One 10-port high-pressure valve
One low-pressure 3-way valve
061736
One 6-port high-pressure valve
One low-pressure 3-way valve
061740
AM tray with no valves 061734
RCH-1 Reaction
Coil Heater
L
ow-
P
ressure
Valve #1
L
ow-
P
ressure
Valve #2
T
empera
t
ure
Stabilizer
High-Pressure
Valve #1
High-Pressure
Valve #2
