Dionex ICS-3000 - DC Interior Components

ICS-3000 Ion Chromatography System
44 Doc. 065031-04 1/08
2.12 DC Interior Components
Figure 2-13 illustrates the interior compartments of the DC.
Upper Compartment
The upper compartment consists of two sections:
• The top section houses an optional ICS-3000 Automation Manager (AM).
The AM contains various components required for performing matrix
elimination, large volume pre-concentration, post-column reagent addition,
and other functions. See Section 2.17
for details about the AM.
• The section below the AM section houses one or two detectors. The detectors
can be either two ICS-3000 Conductivity Detectors (CDs), two ICS-3000
Electrochemical Detectors (EDs), or one detector of each type. See
Section 2.15
for details about the CD and Section 2.16 for details about the
ED.

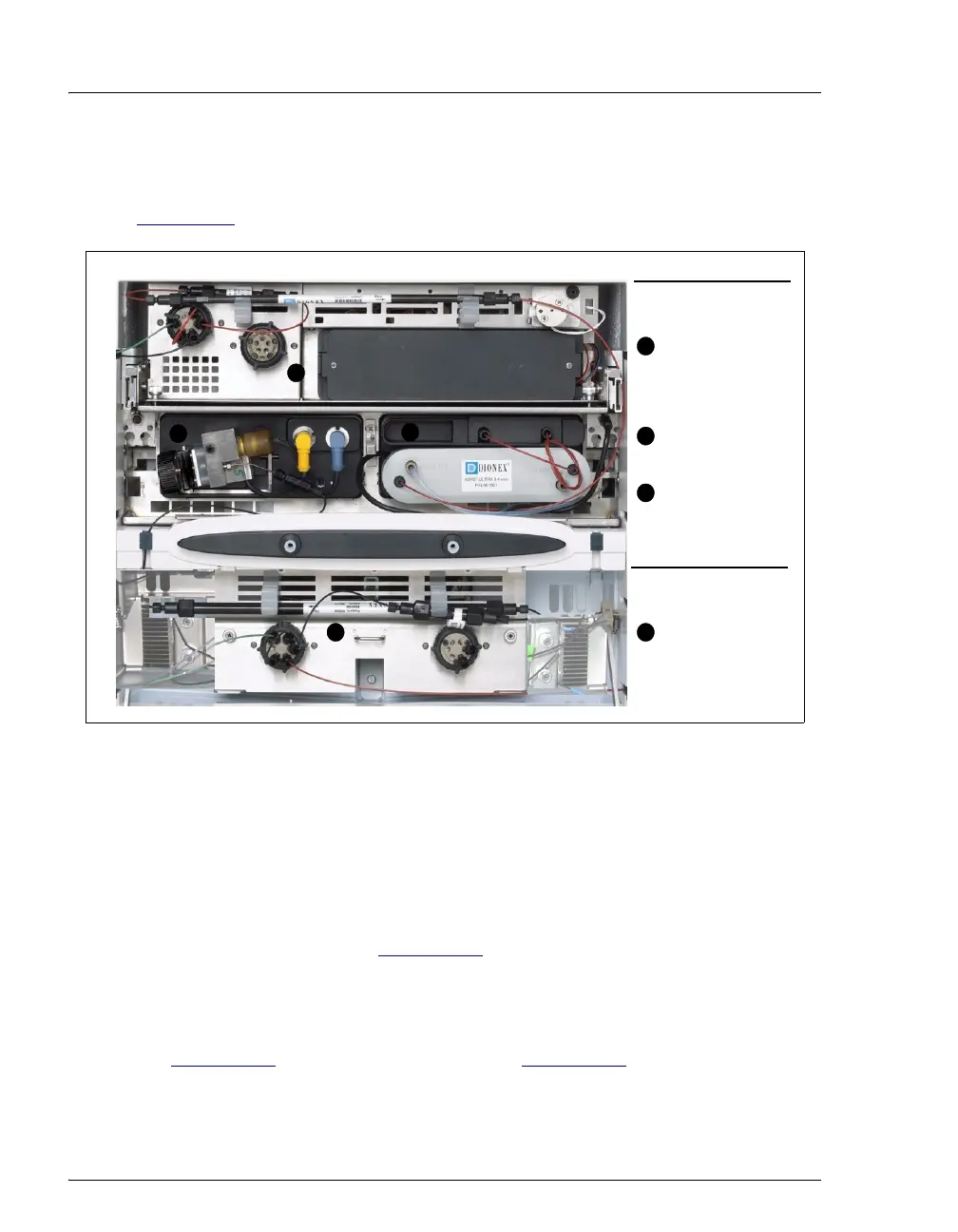

Figure 2-13. DC Interior View Example
2
3
1
4
Automation
Manager
Components
Columns and
Injection Valves
Electrochemical
Detector and Cell
1
2
Conductivity
Detector and
Suppressor
3
4
Upper Compartment
Lower Compartment
