EG Description
2.7 EG Front Features
The status bar on the front of the ICS-3000 Eluent Generator (EG) includes
buttons that provide control of certain EG functions, as well as LEDs that indicate
the status of several EG functions (see Figure 2-7
).

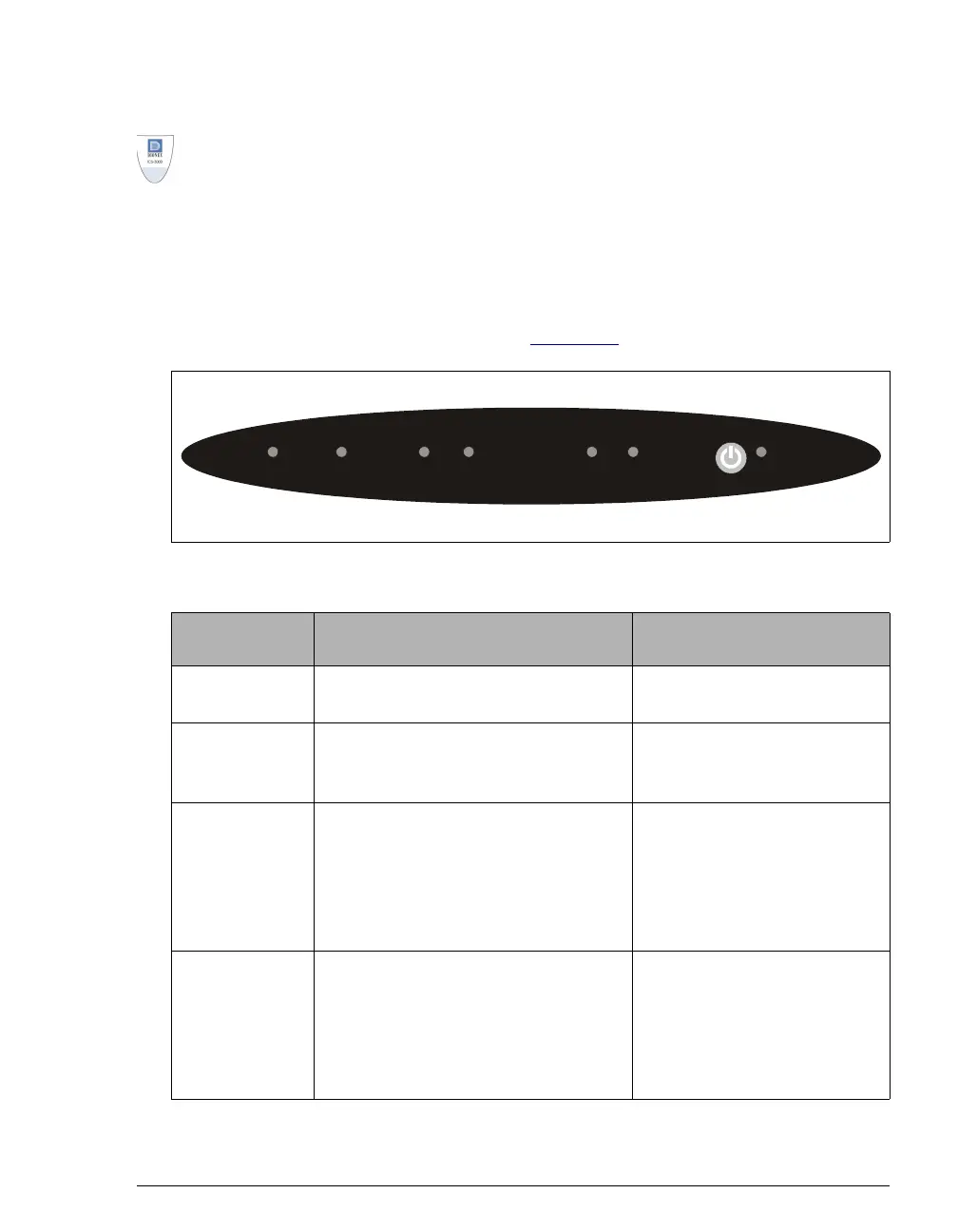

Figure 2-7. EG Status Bar
Button/LED
Label
If the LED Is On Comment
CONNECTED
The EG is connected to a Chromeleon
or Chromeleon Xpress timebase.
-----
ALARM
An EG-related problem has occurred
(for example, the EluGen cartridge
was disconnected).
Check the Chromeleon or
Chromeleon Xpress Audit
Trail for the cause.
EGC 1
EGC 2
The EluGen cartridge is on and is
generating eluent.
EGC 1 is always installed in
the left section of the
component compartment.
EGC 2, if present, is installed
in the right section of the
compartment.
CR-TC 1
CR-TC 2
The CR-TC is on. CR-TC 1 is always installed in
the left section of the
component compartment.
CR-TC 2, if present, is
installed in the right section of
the compartment.
ALARM
EGC
CR-TC
12
CONNECTED
12
