9.16 Changing the EG Main Power Fuses
1. Press the POWER button on the front of the EG for 2 seconds to turn off the
power.
2. Turn off the main power switch on the EG rear panel (see Figure 2-9
).
3. Disconnect the main power cord from both its source and from the EG rear
panel.
.
4. The fuse drawer is located above the main
power switch (see Figure 9-20
). A small tab
locks the fuse drawer in place. Using a small
screwdriver, press the tab in and then up to
release the fuse drawer.
5. Pull the fuse drawer out of the rear panel and
remove the old fuses.
6. Replace the two fuses with new 2A IEC
60127-2 slow-blow fuses (P/N 954773).
Dionex recommends always replacing both
fuses.

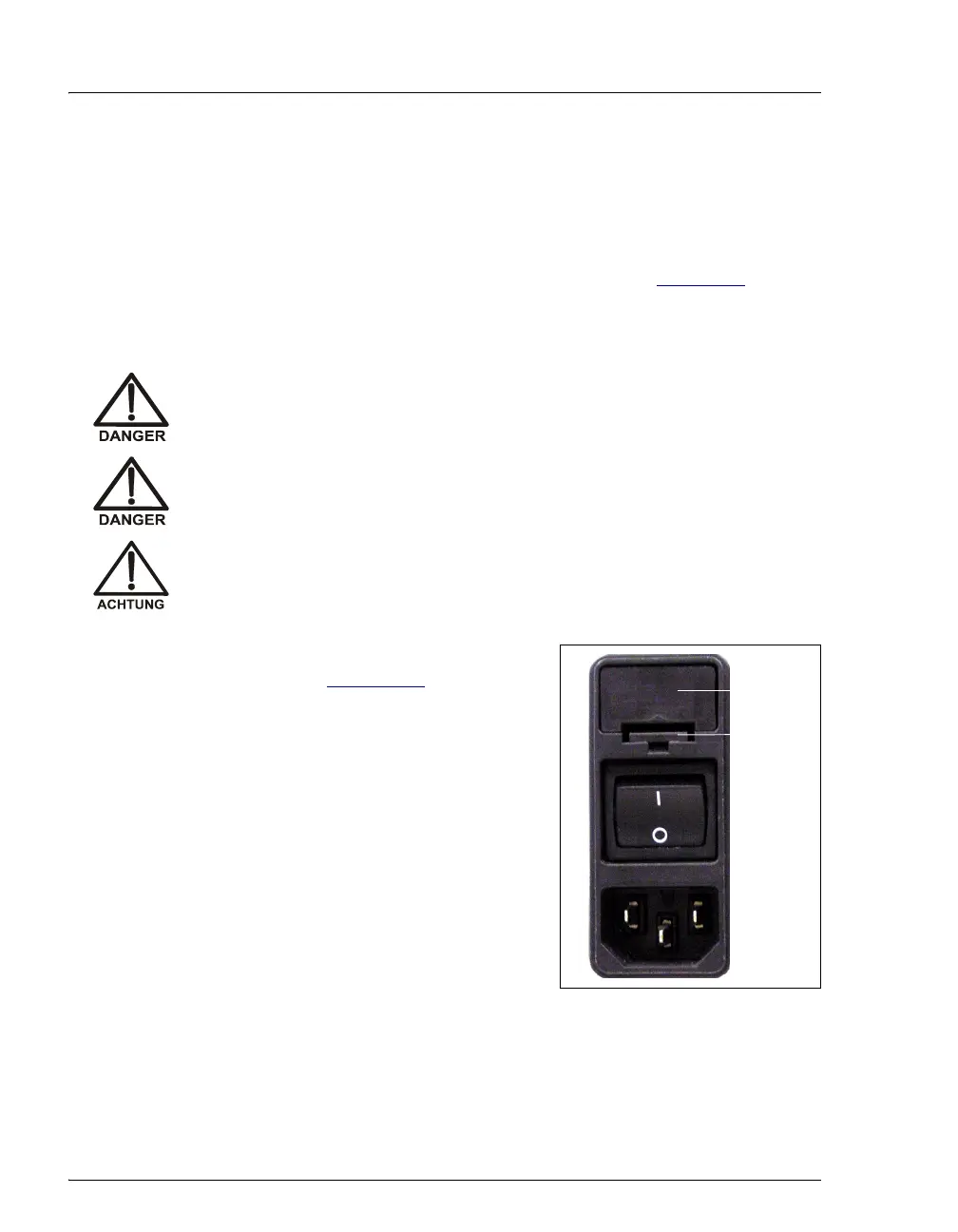

Figure 9-20. EG Fuse Drawer
7. Insert the fuse drawer into the rear panel and press until the drawer snaps into
place.
8. Reconnect the main power cord and turn on the power.
HIGH VOLTAGE—Disconnect the main power cord from its source and
also from the rear panel of the EG.
HAUTE TENSION—Débranchez le cordon d'alimentation principal de
sa source et du panneau arrière du EG.
HOCHSPANNUNG—Ziehen Sie das Netzkabel aus der Steckdose und
der Netzbuchse auf der Rückseite des EG.
Fuse
Drawer
Tab
