3 • Configurations
Doc. 065031-04 1/08 111

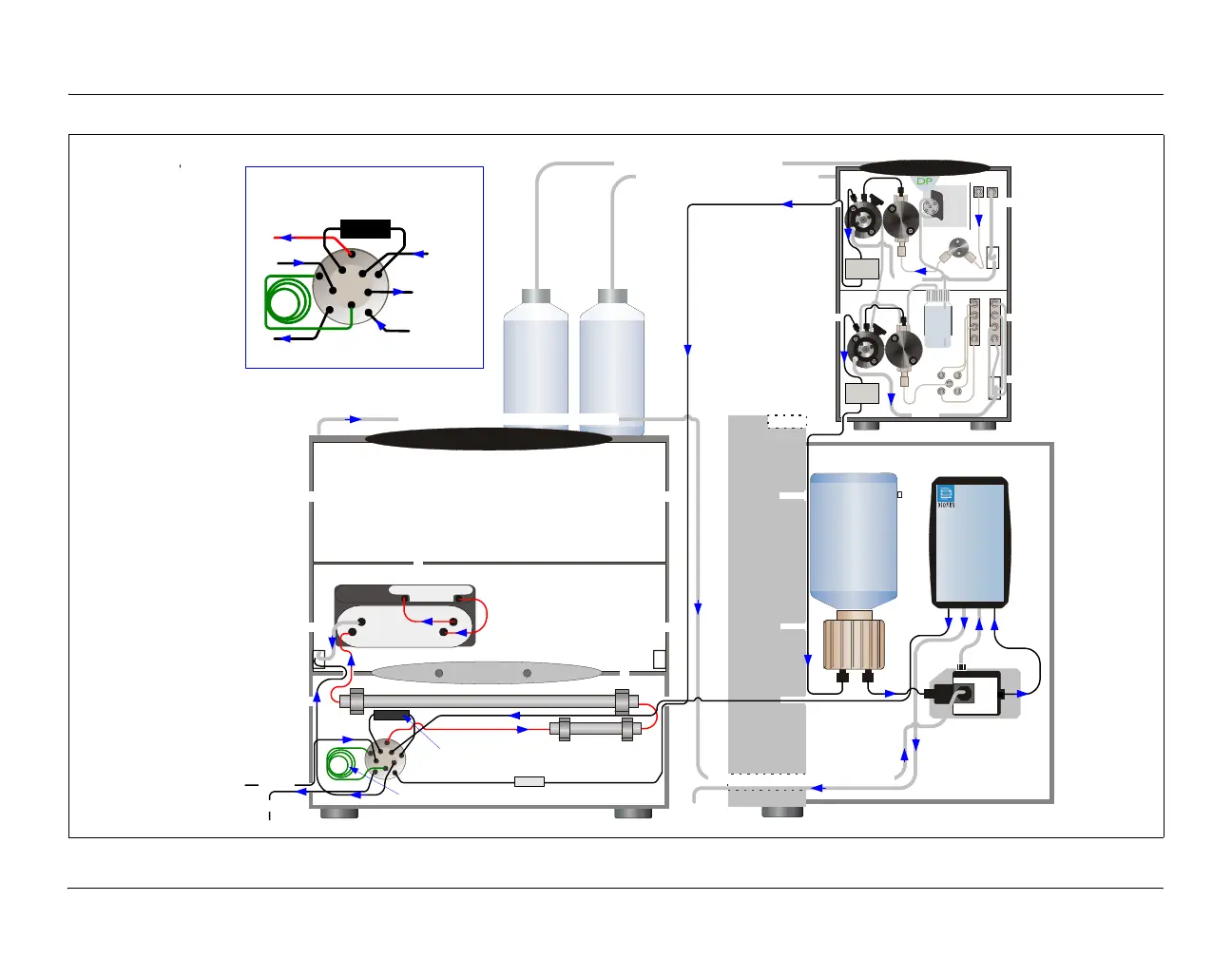

Figure 3-6. RFIC with Matrix Elimination Using a DP and a 10-Port Valve
To pump #2 inlet via the pump rear chase
To pump #1 inlet (A) via the pump rear chase
Deionized
Water
Deionized
Water
(carrier)
EG
(left side view)
To Waste
EGC
IN
OUT
DC (front view)
Concentrator
Large Loop
CR-TC
Eluent
Eluent
In
Out
Regen
Out
Regen In
From the suppressor Regen Out via the DC rear chase
10
2
4
6
8
1
3
5
7
9
From AS
To AS/Waste
Guard
Eluent In Regen In
Regen Out Eluent Out
Cell In
Cell Out
Separator
Injection Valve
Connections Key
3
Carrier pump in
To waste
2
1
To waste
10
8
Concentrator
7
4
Sample in
9
5
Eluent in
6
To column
Pump (front view)
Pump inlet
On/Off
Valve
AB
CD
A
B
C
D
To waste
To waste
Seal
Wash
Pump
Mixer
Mixer
Pump #1
Pump #2
RFIC
Eluent Degasser
Eluent
In
Eluent
Out
Regen
In
Regen
Out
Backpressure Device
Piston
Seal
Wash
(pump not to scale)
To the CR-TC Regen In via the EG rear chase
