9 • DP/SP Service
Doc. 065031-04 1/08 275
The Ship Kit (DP Ship Kit, P/N 062463; SP Ship Kit, P/N 063342) includes a
coil of PharMed tubing. The Preventive Maintenance Kit (DP, P/N 061794;
SP, P/N 061795) includes a coil of Tygon tubing.
7. Connect the new tubing pieces to the
seal wash reservoir and pump heads
(see Figure 9-8
).
8. Push the tubing onto the fitting that was
removed in Step 4
.
9. Connect the PharMed tubing to the
peristaltic pump as follows:
a. Push the tubing into the lower notch
on the pump mounting plate.
b. Lift the lever to the right and hold it
in that position with one hand.
c. With your other hand, wind the
tubing around the rotor.
d. Release the lever.
e. Pull on the fitting slightly to slide
the tubing into the upper notch.

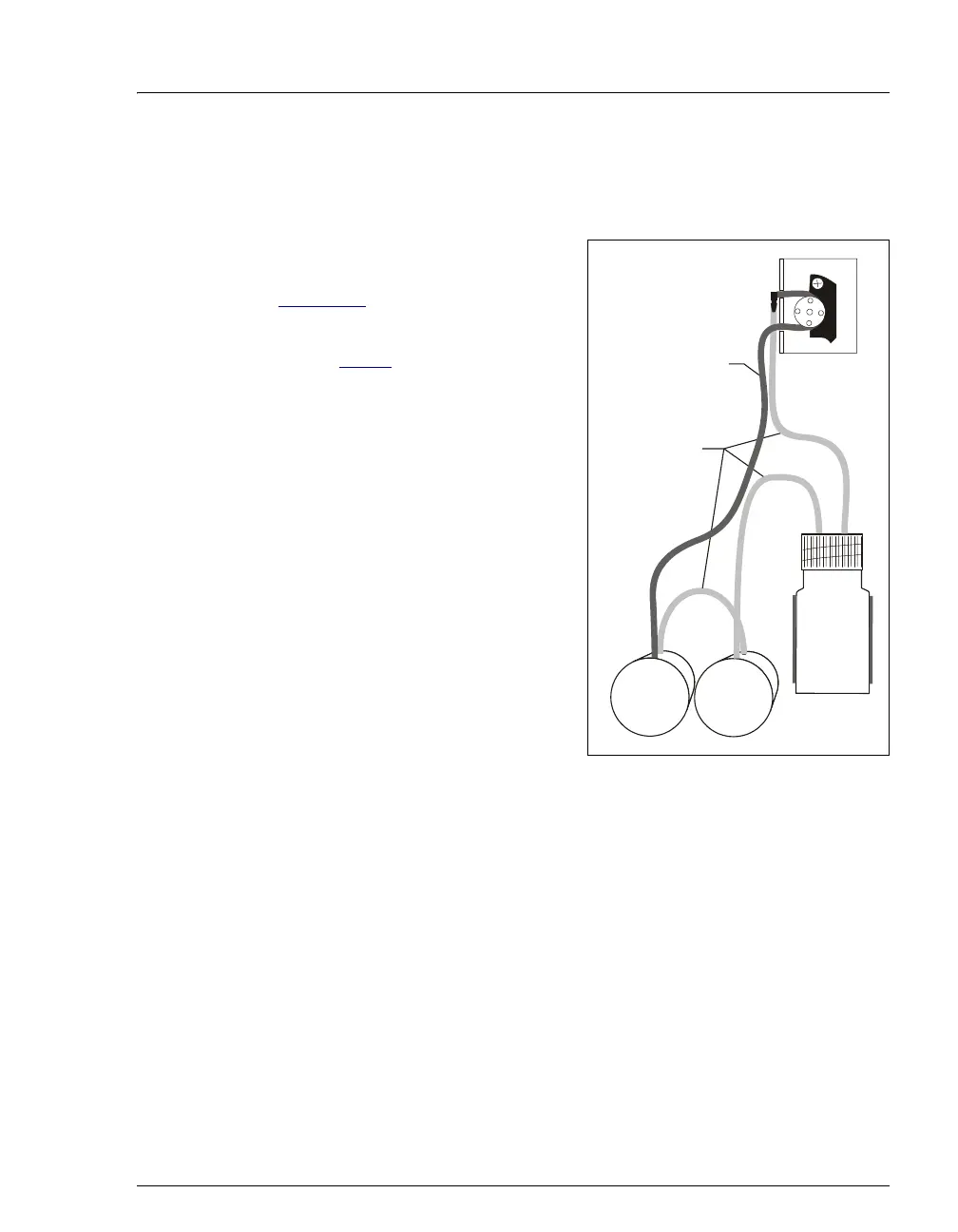

Figure 9-8. Piston Seal Wash Tubing Connections
f. Make sure there is no slack in the tubing. If necessary, lift the lever again,
adjust the tubing around the rotor and through the lower notch to remove
any slack, and release the lever.
10. Push the component mounting panel back into the enclosure. Close the DP/SP
door.
11. Click Motor on the Control panel to turn on the pump flow.
Secondary
Head
Primary
Head
Seal
Wash
Reservoir
PharMed
Tubing
Tygon 2075
Tubing
