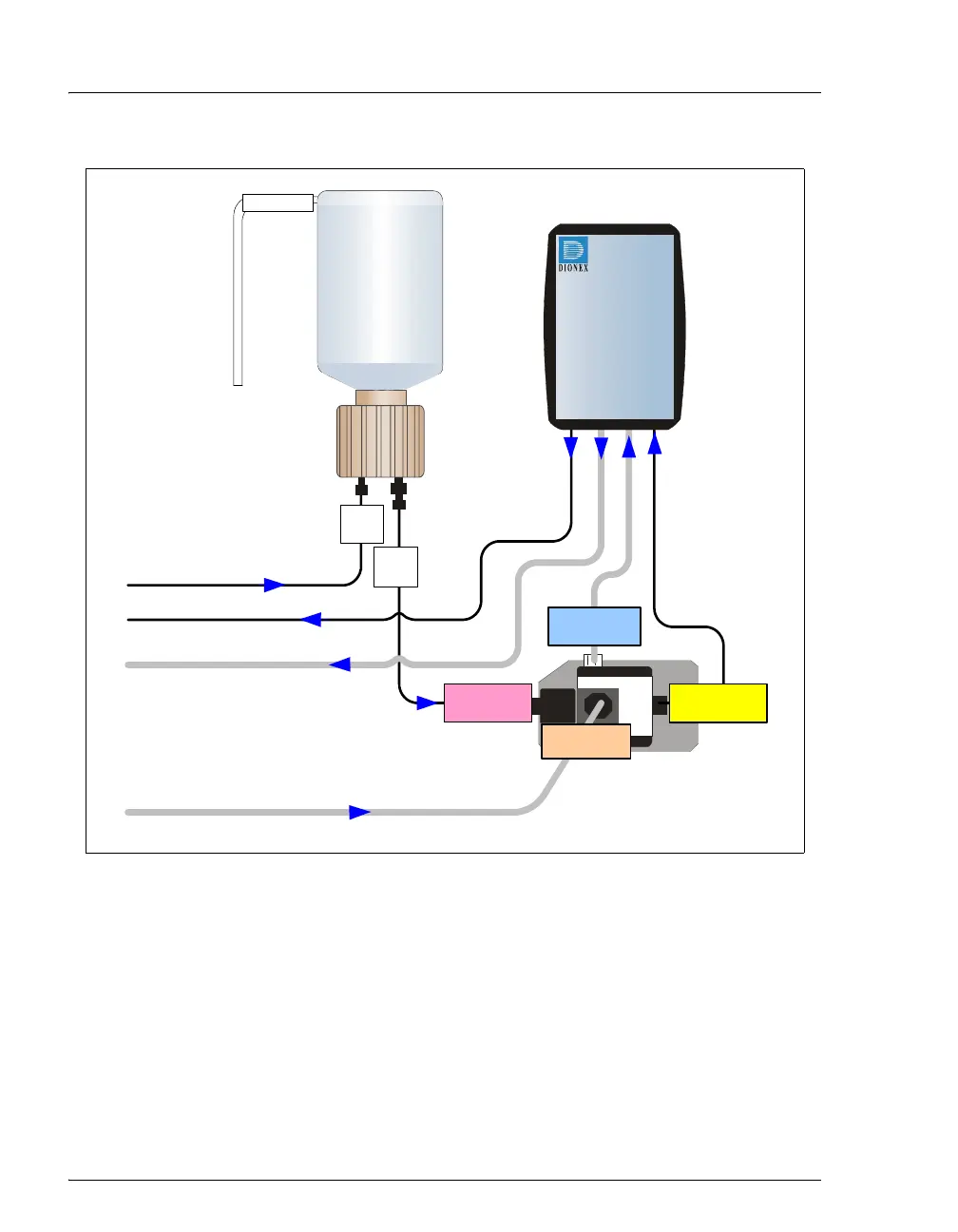

Figure 2-10. EG Flow Schematic Example
Regen In
Regen Out
Eluent
Out
Eluent
In
Eluent In Port
(red label)
Eluent Out Port
(yellow label)
Regen Out Port
(blue label)
EGC VENT
To Waste
EGC
IN
EGC
OUT
To gas separator waste tube
From suppressor REGEN OUT
EGC
Inlet
Outlet
To injection valve port P
From pump
RFIC
Eluent
Degasser
Regen
Out
Regen
In
CR-TC
Regen In Port
(orange label)
