5
5-4
Connectrix DS-32M2 User Guide
Configuring the Switch
Configuring the Operating Mode
This section describes the procedure to set the switch’s operating
mode, to either Open Systems or S/390. Typically, S/390 mode is
used when attaching an IBM S/390 Parallel Enterprise Server
â„¢
to the
switch and implementing inband switch management through a
Fibre Connection (FICON) channel.
Use Open Systems
mode for all other (non-FICON) Fibre channel
environments.
To set the operating mode, follow these steps:
1. Set the switch off line:
CAUTION
!
Setting the switch off line terminates all Fibre Channel
connections.
a. Click Maintenance on the Product Manager menu bar and
select Set Online State on the drop-down menu.
This displays the window in Figure 5-4:

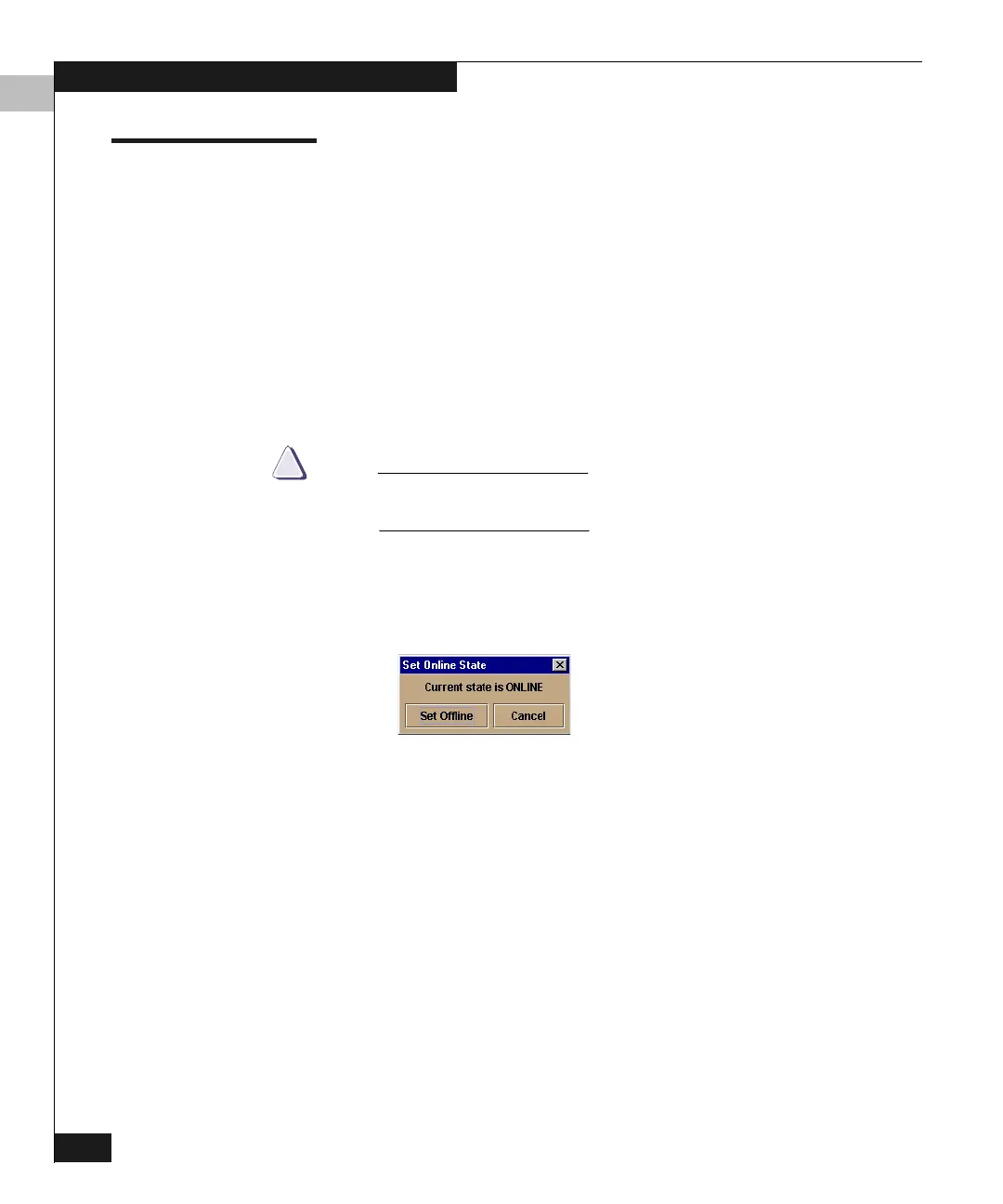

Figure 5-2 Set Online State Window
b. Click Set Offline.
2. Click Configure on the Product Manager menu bar and select
Operating Mode on the drop-down menu.
This displays the window in Figure 5-3.
