EMC Connectrix DS-32M2 - Monitoring Hardware Operation Using the Hardware View

4
4-6
Connectrix DS-32M2 User Guide
Monitoring and Managing the Switch
Table 4-2 on page 4-6. For more details on the meanings of symbols
and indicators, refer to Table 4-3 on page 4-35.

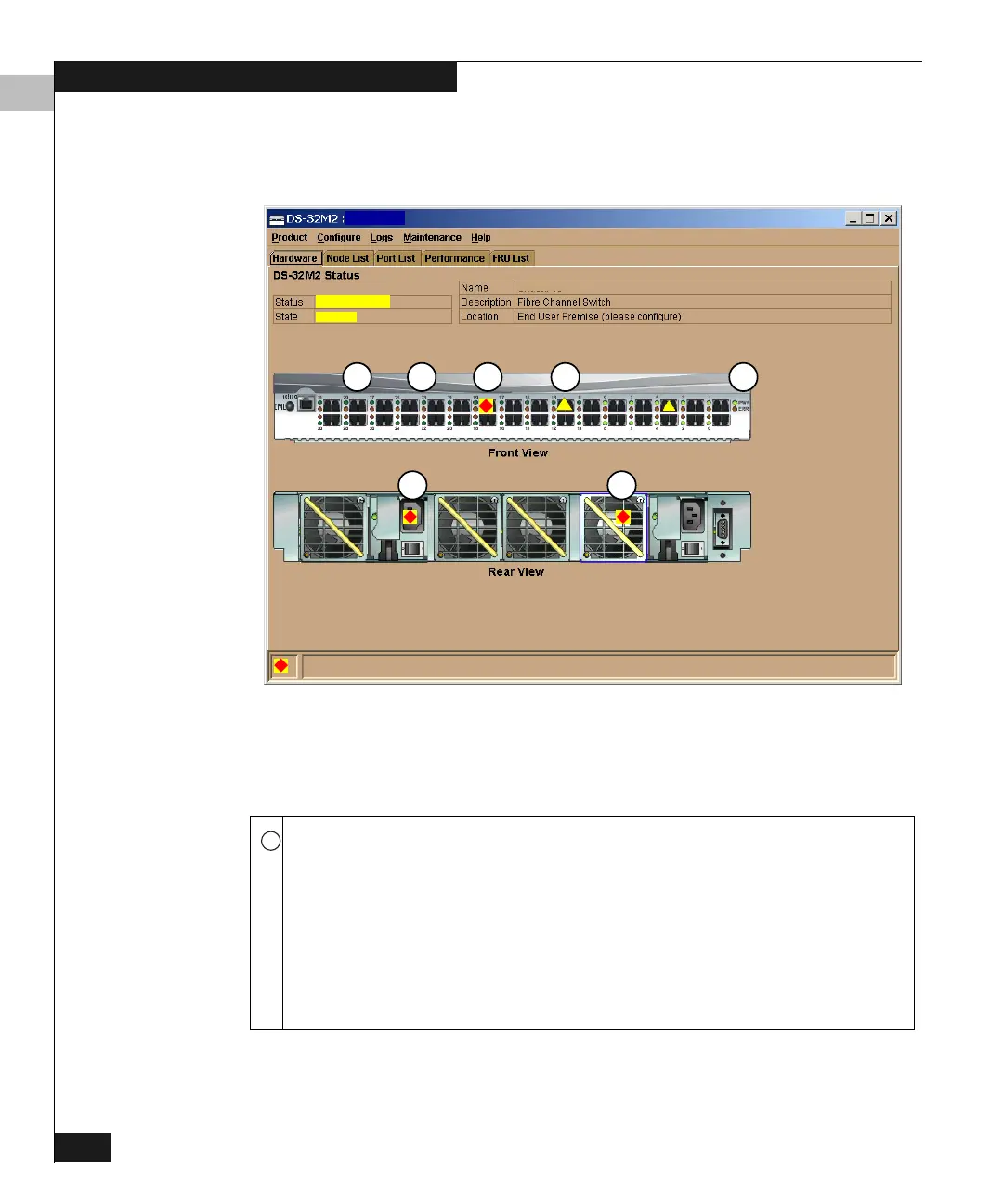

Figure 4-1 Monitoring Hardware Operation Using the Hardware View
ABC 123
ABC 123
1
6
3 4 52
7
NOT OPERATIONAL
OFFLINE
Table 4-2 Legend for Figure 4-1
Port attention indicator — A yellow triangle alert symbol can indicate any
of these:
◆ A link incident occurred.
◆ The port is not operational.
◆ The port is in a non-standard mode of operation.
For a link incident, the status table at the top of the Hardware view changes
to reflect the reason for the alert. You can also note the reason by displaying
the Port Properties window for the port.
1
