Connectrix DS-32M2 User Guide
Product Manager Overview
Product Manager Menu Bar

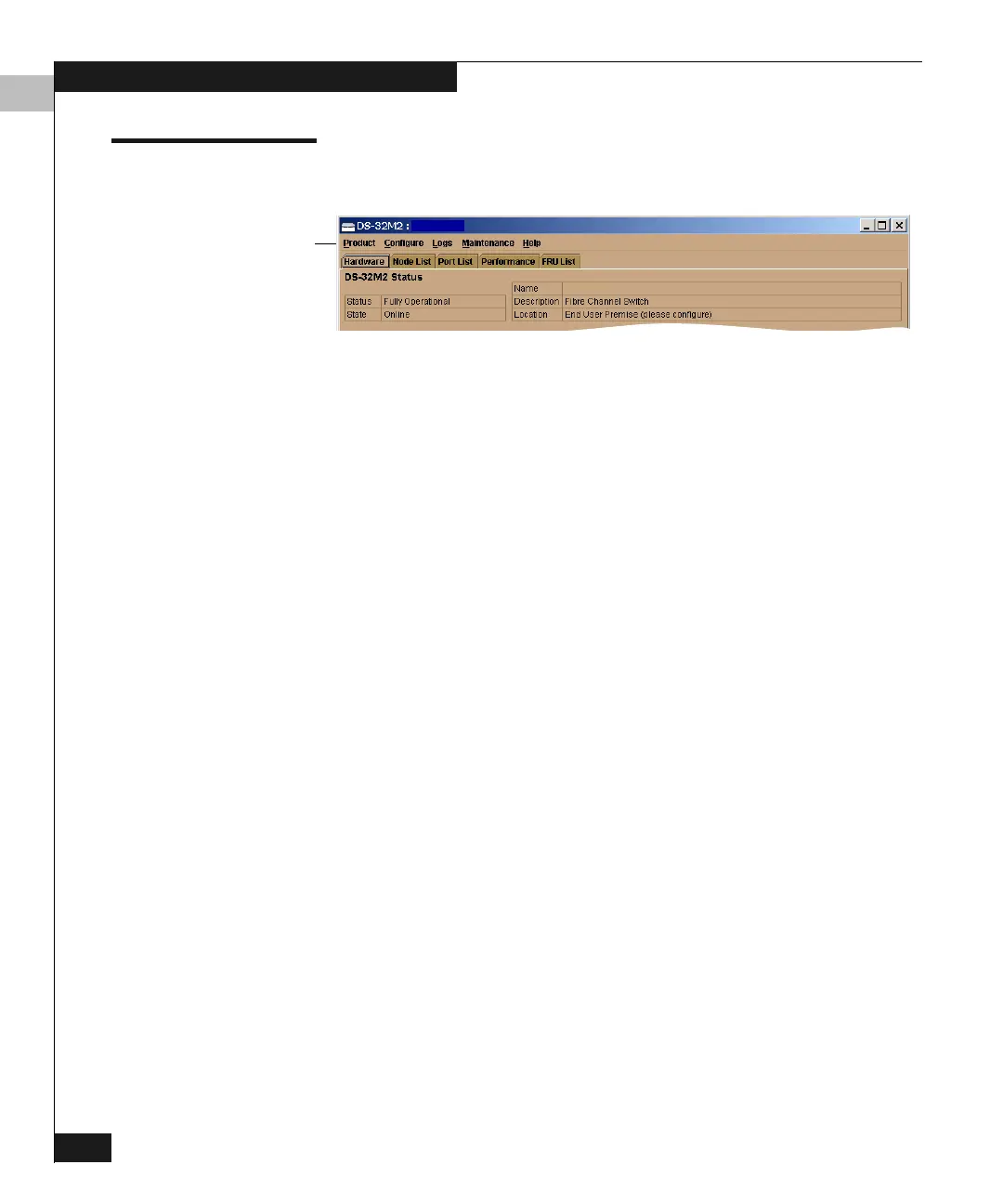

Figure 3-6 Product Manager Menu Bar
The menu bar consists of these menus:
â—† Product:
• Port — Contains the following items; refer to Port Menu on
page 4-14 for descriptions:
– Port Properties
– Node Properties
– Port Technology
– Block Port
– Enable Beaconing
– Port Diagnostics
– Channel Wrap (S/390 mode only)
– Swap Ports (S/390 mode only)
– Clear Link Incident Alert(s)
– Reset Port
– Port Binding
– Clear Threshold Alert(s)
• FRU — Contains a FRU Properties entry; refer to Displaying
FRU Properties on page 4-8 for a description.
• Clear System Error Light — Turns off the amber system error
LED, located below the green power LED on the front of the
switch.
• Enable Unit Beaconing — Causes a system error light on the
front of the switch to blink, to help users locate the actual unit
in an equipment room. (You can enable unit beaconing only if
the system error light is off, signifying that there are no
outstanding errors.)
