7

Backing Up and Restoring the Configuration

7-17

Using Maintenance Features

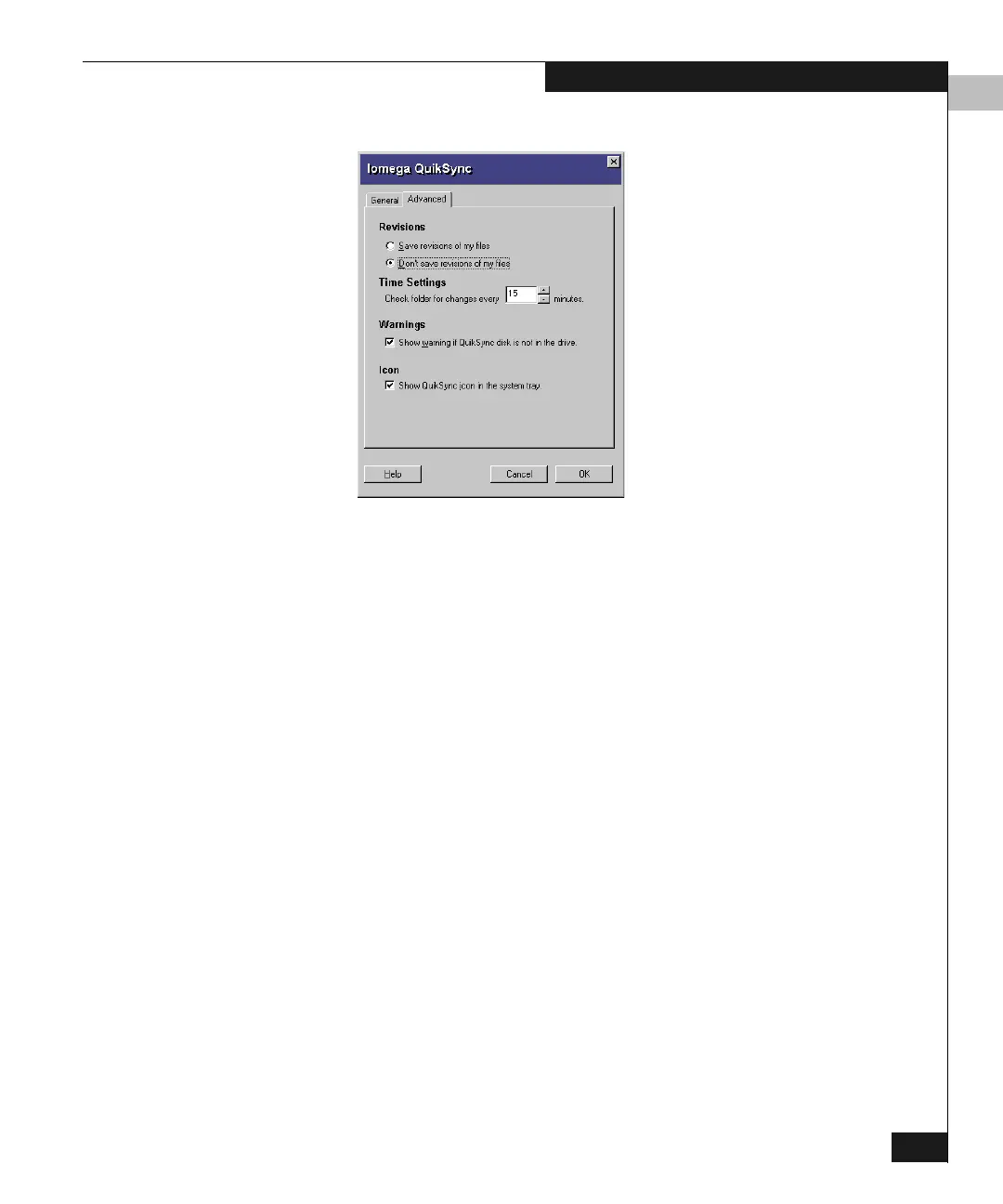

Figure 7-6 Iomega QuikSync Dialog Box (Advanced Tab)

4. Verify that the dialog box is configured exactly as it appears in

Figure 7-6.

5. Click OK.
