3
Using the Product Manager
3-9
Product Manager Overview

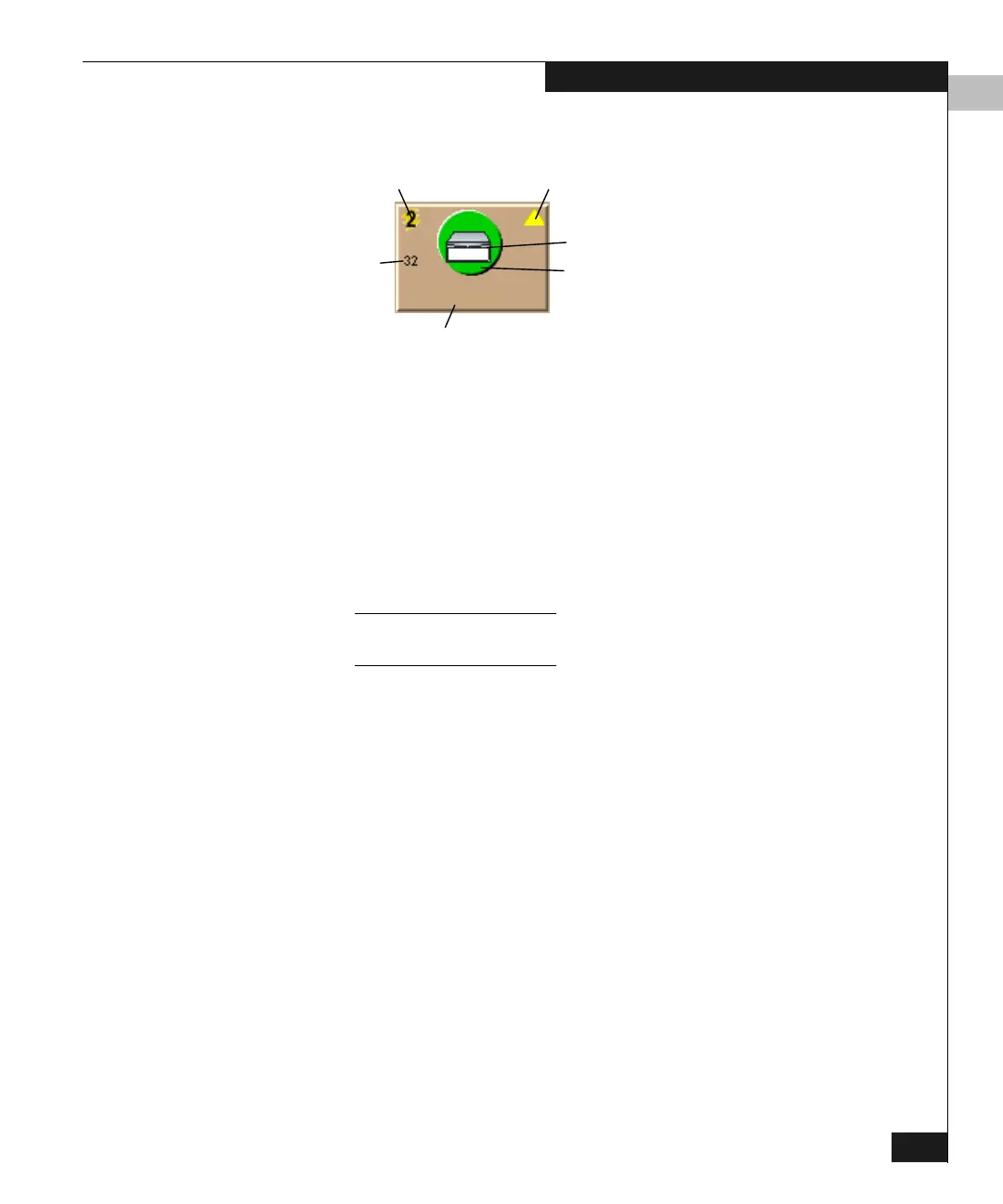

Product Icons Information in each product icon includes the following:
Object descriptions:
â—† Switch data speed, 1 Gb/s or 2 Gb/s.
◆ Attention indicator — A yellow triangle means that product
requires attention. Open the Product Manager application for the
director by double-clicking on the icon to find out more
information.
◆ Product name or network address — You can determine which
appears by right-clicking on the open area away from the product
icons and selecting Display Options from the pop-up menu.
Whichever identifier appears, you can display a pop-up window with
the other identifier by moving the cursor over the product icon.
â—† Status indicator (the color-coded symbol behind the product
illustration):
• A red and yellow diamond means that the product has failed
and requires immediate service.
• A yellow triangle means that the product is degraded, but is
still performing as designed.
• A green circle means that the product is fully operational.
• A grey square means that the Connectrix Manager cannot
determine product status.
• If an alert symbol does not display behind the product, the
product is not managed by the Connectrix service processor to
which you are logged in.
The most critical status reflected by a product in the view is also
reflected in the Products status box in the left corner of the
Connectrix Manager window.
Switch Speed (Gb/s) Attention Indicator
Product Name or Network Address
Number
of Ports
Product Illustration
Status Indicator
MySwitch 5
